845-021-544-404
ActiveEDAC Inc.

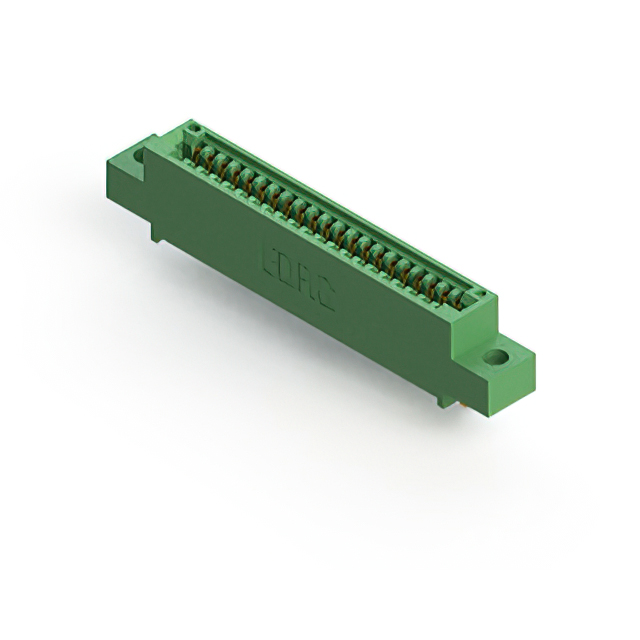

CARD EDGE CONNECTOR, 21 CONTACT(S), 1 ROW(S), FEMALE, 0.1 INCH PITCH, WIRE WRAP TERMINAL, HOLE 0.156, GREEN INSULATOR,
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
845-021-544-404
ActiveEDAC Inc.
CARD EDGE CONNECTOR, 21 CONTACT(S), 1 ROW(S), FEMALE, 0.1 INCH PITCH, WIRE WRAP TERMINAL, HOLE 0.156, GREEN INSULATOR,
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 845-021-544-404 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Top Mount Opening, Unthreaded |
| Flange Feature [diameter] | 0.156 in |
| Flange Feature [diameter] | 3.96 mm |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole |
| Number of Positions | 21 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Single |
| Termination | Wire Wrap |
| Termination Rows | 1 |
845-021 Series
...
| Part | Flange Feature | Contact Finish Thickness | Contact Finish Thickness | Contact Material | Contact Type | Card Type | Termination Rows | Material - Insulation | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Finish | Number of Positions | Operating Temperature [Max] | Operating Temperature [Min] | Number of Rows | Read Out | Mounting Type | Color | Gender | Pitch [x] | Pitch [x] | Termination | Flange Feature | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 4-40 Flush Mount Threaded Insert Top Opening | 10 Áin | 0.25 Ám | Copper Alloy | Cantilever | Non Specified - Single Edge | 1 | Diallyl Phthalate (DAP) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | 21 | 125 °C | -40 °C | 1 | Single | Through Hole | Green | Female | 2.54 mm | 0.1 in | Solder | ||||
EDAC Inc. | Side Mount Opening Unthreaded | 10 Áin | 0.25 Ám | Copper Alloy | Cantilever | Non Specified - Single Edge | 1 | Diallyl Phthalate (DAP) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | 21 | 125 °C | -40 °C | 1 | Single | Through Hole Right Angle | Green | Female | 2.54 mm | 0.1 in | Solder | 3.25 mm | 0.128 in | ||
EDAC Inc. | Flush Mount M3 Threaded Insert Top Opening | 10 Áin | 0.25 Ám | Copper Alloy | Cantilever | Non Specified - Single Edge | 1 | Diallyl Phthalate (DAP) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | 21 | 125 °C | -40 °C | 1 | Single | Through Hole | Green | Female | 2.54 mm | 0.1 in | Solder | ||||
EDAC Inc. | 4-40 Threaded Insert Top Mount Opening | 10 Áin | 0.25 Ám | Copper Alloy | Cantilever | Non Specified - Single Edge | 1 | Diallyl Phthalate (DAP) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | 21 | 125 °C | -40 °C | 1 | Single | Through Hole | Green | Female | 2.54 mm | 0.1 in | Wire Wrap | ||||
EDAC Inc. | Top Mount Opening Unthreaded | 10 Áin | 0.25 Ám | Copper Alloy | Cantilever | Non Specified - Single Edge | 1 | Diallyl Phthalate (DAP) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | 21 | 125 °C | -40 °C | 1 | Single | Through Hole | Green | Female | 2.54 mm | 0.1 in | Wire Wrap | 0.156 in | 3.96 mm | ||
EDAC Inc. | M3 Threaded Insert Top Mount Opening | 10 Áin | 0.25 Ám | Copper Alloy | Cantilever | Non Specified - Single Edge | 1 | Diallyl Phthalate (DAP) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | 21 | 125 °C | -40 °C | 1 | Single | Through Hole | Green | Female | 2.54 mm | 0.1 in | Solder | ||||
EDAC Inc. | Flush Mount Side Opening Unthreaded | 10 Áin | 0.25 Ám | Copper Alloy | Cantilever | Non Specified - Single Edge | 1 | Diallyl Phthalate (DAP) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | 21 | 125 °C | -40 °C | 1 | Single | Through Hole Right Angle | Green | Female | 2.54 mm | 0.1 in | Solder | 0.128 " | 3.25 mm | ||
EDAC Inc. | 10 Áin | 0.25 Ám | Copper Alloy | Cantilever | Non Specified - Single Edge | 1 | Diallyl Phthalate (DAP) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | 21 | 125 °C | -40 °C | 1 | Single | Through Hole | Green | Female | 2.54 mm | 0.1 in | Solder | 3.25 mm | 0.128 in | |||
EDAC Inc. | Top Mount Opening Unthreaded | 10 Áin | 0.25 Ám | Copper Alloy | Cantilever | Non Specified - Single Edge | 1 | Diallyl Phthalate (DAP) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | 21 | 125 °C | -40 °C | 1 | Single | Through Hole | Green | Female | 2.54 mm | 0.1 in | Solder | 0.156 in | 3.96 mm | ||
EDAC Inc. | Floating Bobbin Top Mount Opening | 10 Áin | 0.25 Ám | Copper Alloy | Cantilever | Non Specified - Single Edge | 1 | Diallyl Phthalate (DAP) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | 21 | 125 °C | -40 °C | 1 | Single | Through Hole | Green | Female | 2.54 mm | 0.1 in | Wire Wrap | 0.116 in | 2.95 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
845-021 Series
21 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Green
