145-0711-802

Active

Cinch Connectivity Solutions Johnson

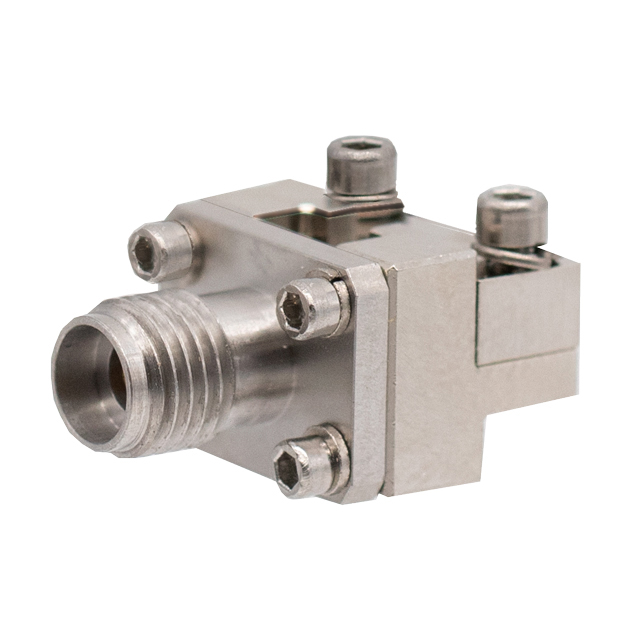

2.92MM END LAUNCH JACK, SCREW-ON

Search across all available documentation for this part.

Active

Cinch Connectivity Solutions Johnson

2.92MM END LAUNCH JACK, SCREW-ON

Technical Specifications

Parameters and characteristics for this part

Specification	145-0711-802

Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	2.92 mm
Connector Type	Female Socket, Jack
Contact Termination	Compression
Dielectric Material	Polytetrafluoroethylene (PTFE)
Features	Mounting Hardware
Frequency - Max [Max]	40 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Board Edge, End Launch
Number of Ports	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Screw

2.92MM END LAUNCH JACK, SCREW-ON

Part	Number of Ports	Body Material	Connector Style	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Frequency - Max [Max]	Housing Color	Center Contact Material	Contact Termination	Impedance	Center Contact Plating	Dielectric Material	Shield Termination	Mounting Type	Features	Mating Cycles
Cinch Connectivity Solutions Johnson 145-0711-802	1	Stainless Steel	2.92 mm	Female Socket, Jack	-55 °C	125 °C	40 GHz	Silver	Beryllium Copper	Compression	50 Ohms	Gold	Polytetrafluoroethylene (PTFE)	Screw	Board Edge, End Launch	Mounting Hardware	500

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2.92mm Connector Jack, Female Socket 50 Ohms Board Edge, End Launch Compression
