Cable Assemblies

A3BRB-2606G

Active

TE Connectivity Raychem Cable Protection

IDC CABLE - ASR26B/AE26G/APR26B

Deep-Dive with AI

DocumentsRibbon Cable Assembly Length Guide Datasheet

Specifications Series Pricing Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	A3BRB-2606G

Cable Termination	IDC
Connector Type	Socket to Plug
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Features	Strain Relief (Socket), Strain Relief (Plug), Polarizing Key
Length	152.4 mm
Length	6 "
Length	0.5 '
Number of Positions	26
Number of Rows	2
Pitch - Cable	0.05 "
Pitch - Cable	1.27 mm
Pitch - Connector	0.1 in
Pitch - Connector	2.54 mm
Shielding	Unshielded

A3BRB Series

Part	Pitch - Cable	Pitch - Cable	Connector Type	Number of Rows	Features	Shielding	Contact Finish	Length [x]	Length [x]	Number of Positions	Pitch - Connector	Pitch - Connector	Contact Finish Thickness	Contact Finish Thickness	Cable Termination	Color	Length	Length	Length
TE Connectivity Raychem Cable Protection A3BRB-1418G	0.05 "	1.27 mm	Socket to Plug	2	Polarizing Key Strain Relief (Plug) Strain Relief (Socket)	Unshielded	Gold	457.2 mm	1.5 ft	14	0.1 in	2.54 mm	0.76 Ám	30 Áin	IDC
TE Connectivity Raychem Cable Protection A3BRB-1006M	0.05 "	1.27 mm	Socket to Plug	2	Polarizing Key Strain Relief (Plug) Strain Relief (Socket)	Unshielded	Gold			10	0.1 in	2.54 mm	0.76 Ám	30 Áin	IDC	Multiple Ribbon	152.4 mm	6 "	0.5 '
TE Connectivity Raychem Cable Protection A3BRB-3436M	0.05 "	1.27 mm	Socket to Plug	2	Polarizing Key Strain Relief (Plug) Strain Relief (Socket)	Unshielded	Gold	914.4 mm	3 ft	34	0.1 in	2.54 mm	0.76 Ám	30 Áin	IDC	Multiple Ribbon
TE Connectivity Raychem Cable Protection A3BRB-5006G	0.05 "	1.27 mm	Socket to Plug	2	Polarizing Key Strain Relief (Plug) Strain Relief (Socket)	Unshielded	Gold			50	0.1 in	2.54 mm	0.76 Ám	30 Áin	IDC		152.4 mm	6 "	0.5 '
TE Connectivity Raychem Cable Protection A3BRB-2036M	0.05 "	1.27 mm	Socket to Plug	2	Polarizing Key Strain Relief (Plug) Strain Relief (Socket)	Unshielded	Gold	914.4 mm	3 ft	20	0.1 in	2.54 mm	0.76 Ám	30 Áin	IDC	Multiple Ribbon
TE Connectivity Raychem Cable Protection A3BRB-2636M	0.05 "	1.27 mm	Socket to Plug	2	Polarizing Key Strain Relief (Plug) Strain Relief (Socket)	Unshielded	Gold	914.4 mm	3 ft	26	0.1 in	2.54 mm	0.76 Ám	30 Áin	IDC	Multiple Ribbon
TE Connectivity Raychem Cable Protection A3BRB-5018G	0.05 "	1.27 mm	Socket to Plug	2	Polarizing Key Strain Relief (Plug) Strain Relief (Socket)	Unshielded	Gold	457.2 mm	1.5 ft	50	0.1 in	2.54 mm	0.76 Ám	30 Áin	IDC
TE Connectivity Raychem Cable Protection A3BRB-2018G	0.05 "	1.27 mm	Socket to Plug	2	Polarizing Key Strain Relief (Plug) Strain Relief (Socket)	Unshielded	Gold	457.2 mm	1.5 ft	20	0.1 in	2.54 mm	0.76 Ám	30 Áin	IDC
TE Connectivity Raychem Cable Protection A3BRB-2618G	0.05 "	1.27 mm	Socket to Plug	2	Polarizing Key Strain Relief (Plug) Strain Relief (Socket)	Unshielded	Gold	457.2 mm	1.5 ft	26	0.1 in	2.54 mm	0.76 Ám	30 Áin	IDC
TE Connectivity Raychem Cable Protection A3BRB-2606G	0.05 "	1.27 mm	Socket to Plug	2	Polarizing Key Strain Relief (Plug) Strain Relief (Socket)	Unshielded	Gold			26	0.1 in	2.54 mm	0.76 Ám	30 Áin	IDC		152.4 mm	6 "	0.5 '

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 20.58
		10	$ 17.06
		25	$ 15.83
		50	$ 14.96
		100	$ 14.15
		250	$ 13.14
		500	$ 12.43

Description

General part information

A3BRB Series

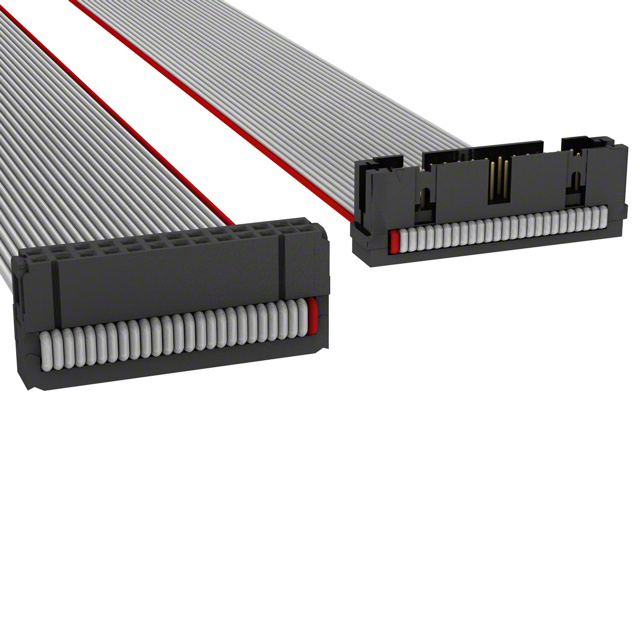

26 Position Cable Assembly Rectangular Socket to Plug 0.500' (152.40mm, 6.00")
