KM01.1205.11

Active

SCHURTER Inc.

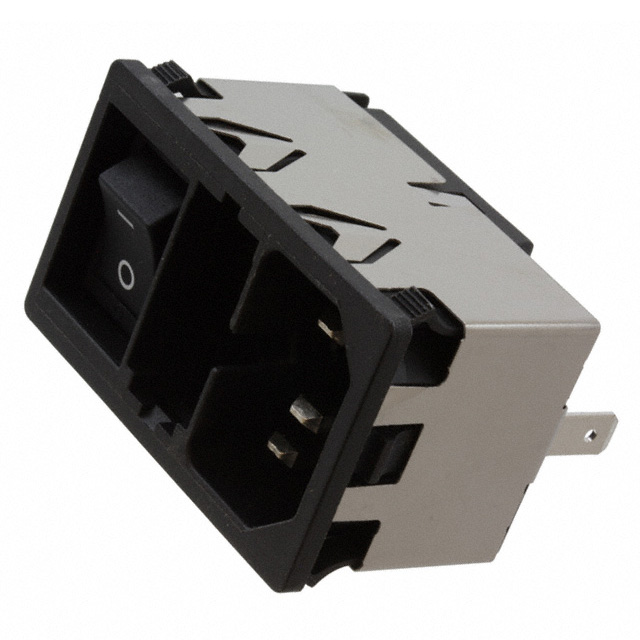

POWER ENTRY MODULE UNFILTERED M 3 POS 250VAC 10A FUSE/SWITCH ST 1 PORT

Search across all available documentation for this part.

Active

SCHURTER Inc.

POWER ENTRY MODULE UNFILTERED M 3 POS 250VAC 10A FUSE/SWITCH ST 1 PORT

Technical Specifications

Parameters and characteristics for this part

Specification	KM01.1205.11

Accomodates a Fuse	True
Approval Agency	CCC, ENEC, cULus
Connector Style	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	10 A
Features	Terminating Cover, Shielded
Filter Type	Unfiltered - Commercial
Fuse Holder, Drawer	Fuse Holder
Ingress Protection	IP40
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Snap-In
Panel Cutout Dimensions [x]	28.8 mm
Panel Cutout Dimensions [y]	47.8 mm
Panel Thickness [Max]	2.5 mm
Panel Thickness [Max]	0.098 in
Panel Thickness [Min]	1 mm
Panel Thickness [Min]	0.039 in
Switch Features	Switch On-Off
Termination	0.189 ", 4.8 mm
Termination	Quick Connect
Voltage Rating - Appliance Inlet	250 VAC

POWER ENTRY MODULE UNFILTERED M 3 POS 250VAC 10A FUSE/SWITCH ST 1 PORT

Part	Current Rating - Appliance Inlet	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Min]	Switch Features	Voltage Rating - Appliance Inlet	Connector Type	Mounting Type	Material Flammability Rating	Fuse Holder, Drawer	Termination	Termination	Filter Type	Ingress Protection	Connector Style	Accomodates a Fuse	Features	Approval Agency
SCHURTER Inc. KM01.1205.11	10 A	47.8 mm	28.8 mm	2.5 mm	1 mm	0.098 in	0.039 in	Switch On-Off	250 VAC	Receptacle, Male Blades - Module	Panel Mount, Snap-In	UL94 V-0	Fuse Holder	0.189 ", 4.8 mm	Quick Connect	Unfiltered - Commercial	IP40	IEC 320-C14		Shielded, Terminating Cover	CCC, cULus, ENEC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	50	$ 9.89
Digikey	Bulk	1	$ 9.81

General part information

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Snap-In
