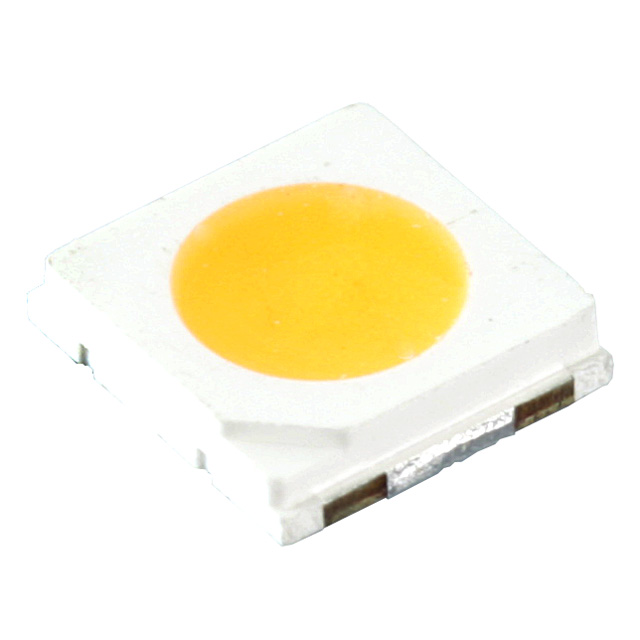

MXA9-PW40-H001

Active

Lumileds

LUXEON MID-POWER NEUTRAL-WHITE 3535L HE 90 CRI CCT 4000K CRI90

Search across all available documentation for this part.

Active

Lumileds

LUXEON MID-POWER NEUTRAL-WHITE 3535L HE 90 CRI CCT 4000K CRI90

Technical Specifications

Parameters and characteristics for this part

Specification	MXA9-PW40-H001

CCT (K)	4000 K
Color	Neutral, White
CRI (Color Rendering Index)	90
Current - Max [Max]	300 mA
Current - Test	100 mA
Flux @ 25°C, Current - Test	42 lm
Height - Seated (Max) [Max] [z]	0.8 mm
Height - Seated (Max) [Max] [z]	0.031 "
Lumens/Watt @ Current - Test	145 lm/W
Mounting Type	Surface Mount
Package / Case	3535 Metric
Package / Case	1414
Size / Dimension [x]	3.5 mm
Size / Dimension [x]	0.138 "
Size / Dimension [y]	3.4 mm
Size / Dimension [y]	0.134 in
Supplier Device Package	3535
Thermal Resistance of Package [diameter]	18 °C/W
Viewing Angle	115 °
Voltage - Forward (Vf) (Typ)	2.9 V

LUXEON MID-POWER NEUTRAL-WHITE 3535L HE 90 CRI CCT 4000K CRI90

Part	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Lumens/Watt @ Current - Test	Mounting Type	CCT (K)	Supplier Device Package	Thermal Resistance of Package [diameter]	Package / Case	Package / Case	Color	Voltage - Forward (Vf) (Typ)	CRI (Color Rendering Index)	Viewing Angle	Flux @ 25°C, Current - Test	Current - Max [Max]	Current - Test	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Lumileds MXA9-PW40-H001	3.4 mm	0.134 in	3.5 mm	0.138 "	145 lm/W	Surface Mount	4000 K	3535	18 °C/W	3535 Metric	1414	Neutral, White	2.9 V	90	115 °	42 lm	300 mA	100 mA	0.8 mm	0.031 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Lighting LUXEON 3535L White, Neutral 4000K 2.9V 100mA 115° 1414 (3535 Metric)
