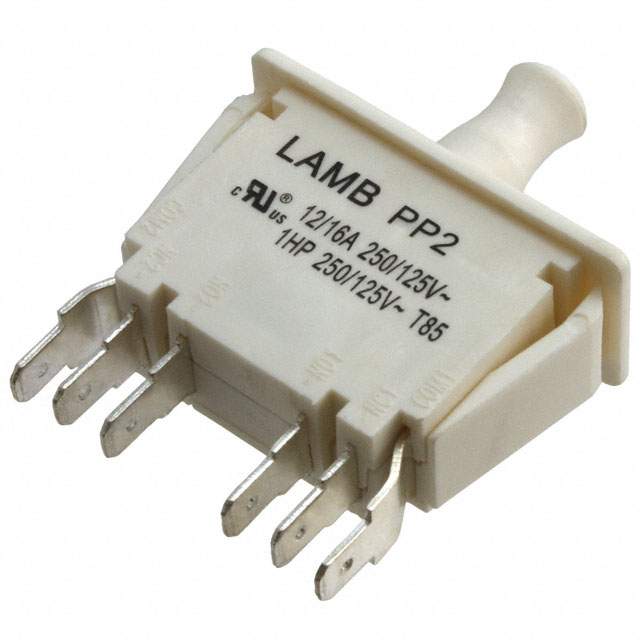

PP2-1U7-2B2
ActiveE-Switch
SWITCH DETECTOR DPDT 16A 125V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsPP2 Series Spec
PP2-1U7-2B2
ActiveE-Switch
SWITCH DETECTOR DPDT 16A 125V
Deep-Dive with AI
DocumentsPP2 Series Spec
Technical Specifications
Parameters and characteristics for this part
| Specification | PP2-1U7-2B2 |
|---|---|
| Actuator Type | Push-Pull Plunger |
| Circuit | DPDT |
| Current Rating (Amps) | 16 A |
| Electrical Life | 6000 Cycles |
| Features | Pull On Lock |
| Mounting Type | Panel Mount, Snap-In |
| Operating Force | 330 gf |
| Operating Position | 15.5 mm |
| Operating Position | 0.61 in |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | 0 °C |
| Switch Function | On-Mom |
| Termination Style | Quick Connect - 0.187" (4.7mm) |
| Voltage Rating - AC | 125 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5.77 | |
| 10 | $ 4.68 | |||
| 25 | $ 4.30 | |||
| 100 | $ 3.77 | |||
| 250 | $ 3.45 | |||
| 500 | $ 3.23 | |||
| 1000 | $ 3.23 | |||
Description
General part information
PP2-1 Series
Switch DPDT Panel Mount, Snap-In
