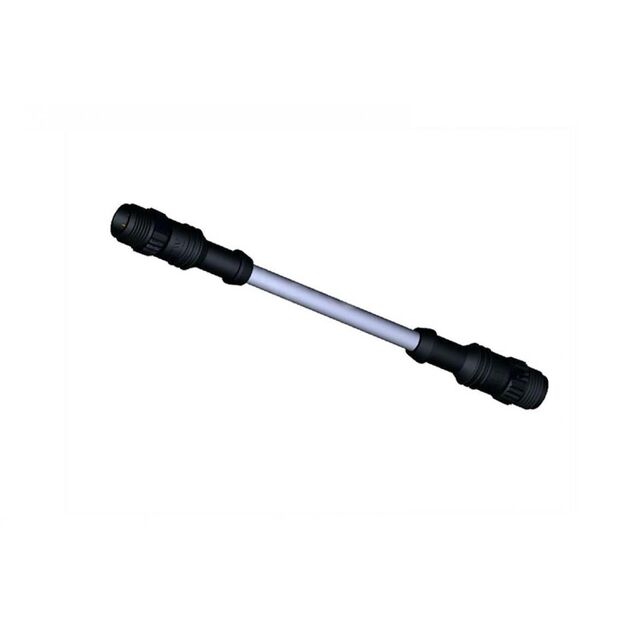

PC-000505-0MM-CSA01

Active

Amphenol LTW

CIRC CBL 5POS RCPT TO RCPT 3.28'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PC-000505-0MM-CSA01

Active

Amphenol LTW

CIRC CBL 5POS RCPT TO RCPT 3.28'

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PC-000505-0MM-CSA01

1st Connector Gender	Male Pins
1st Connector Mounting Type	Free Hanging (In-Line)
1st Connector Number of Positions	5
1st Connector Number of Positions Loaded	All
1st Connector Orientation [custom]	Keyed
1st Connector Shell Size - Insert	M12
1st Connector Type	Receptacle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Connector Number of Positions	5
2nd Connector Number of Positions Loaded	All
2nd Connector Shell Size - Insert	M12
2nd Connector Type	Receptacle
Assembly Configuration	Standard
Cable Material	Polyvinyl Chloride (PVC)
Cable Type	Round
Color	Black
Ingress Protection	IP68 - Dust Tight, Waterproof; NMEA 2000
Length [x]	1 m
Length [x]	3.28 ft
Shielding	Shielded
Usage	Industrial Environments

PC-000505 Series

Part	2nd Connector Type	2nd Connector Number of Positions	1st Connector Orientation [custom]	Length [x]	Length [x]	1st Connector Gender	2nd Connector Mounting Type	2nd Connector Shell Size - Insert	1st Connector Shell Size - Insert	Cable Material	Shielding	1st Connector Number of Positions Loaded	Cable Type	1st Connector Type	1st Connector Number of Positions	2nd Connector Number of Positions Loaded	Usage	Color	Ingress Protection	Assembly Configuration	1st Connector Mounting Type	2nd Connector Gender
Amphenol LTW PC-000505-0MM-CSA05	Receptacle	5	Keyed	1.64 ft	500 mm	Male Pins	Free Hanging (In-Line)	M12	M12	Polyvinyl Chloride (PVC)	Shielded	All	Round	Receptacle	5	All	Industrial Environments	Black	IP68 - Dust Tight Waterproof; NMEA 2000	Standard	Free Hanging (In-Line)
Amphenol LTW PC-000505-0FF-CSA01	Plug	5	Keyed	3.28 ft	1 m	Female Sockets	Free Hanging (In-Line)	M12	M12	Polyvinyl Chloride (PVC)	Shielded	All	Round	Plug	5	All	Industrial Environments	Black	IP68 - Dust Tight Waterproof; NMEA 2000	Standard	Free Hanging (In-Line)	Female Sockets
Amphenol LTW PC-000505-0FF-CSA05	Plug	5	Keyed	1.64 ft	500 mm	Female Sockets	Free Hanging (In-Line)	M12	M12	Polyvinyl Chloride (PVC)	Shielded	All	Round	Plug	5	All	Industrial Environments	Black	IP68 - Dust Tight Waterproof; NMEA 2000	Standard	Free Hanging (In-Line)	Female Sockets
Amphenol LTW PC-000505-0MM-CSA01	Receptacle	5	Keyed	3.28 ft	1 m	Male Pins	Free Hanging (In-Line)	M12	M12	Polyvinyl Chloride (PVC)	Shielded	All	Round	Receptacle	5	All	Industrial Environments	Black	IP68 - Dust Tight Waterproof; NMEA 2000	Standard	Free Hanging (In-Line)
Amphenol LTW PC-000505-0MM-CSB02	Receptacle	5	Keyed	6.56 ft	2 m	Male Pins	Free Hanging (In-Line)	M12	M12	Polyvinyl Chloride (PVC)	Shielded	All	Round	Receptacle	5	All	Industrial Environments	Black	IP68 - Dust Tight Waterproof; NMEA 2000	Standard	Free Hanging (In-Line)
Amphenol LTW PC-000505-0FF-CSA02	Plug	5	Keyed	6.56 ft	2 m	Female Sockets	Free Hanging (In-Line)	M12	M12	Polyvinyl Chloride (PVC)	Shielded	All	Round	Plug	5	All	Industrial Environments	Black	IP68 - Dust Tight Waterproof; NMEA 2000	Standard	Free Hanging (In-Line)	Female Sockets
Amphenol LTW PC-000505-0MF-CSB03	Plug	5	Keyed	9.84 ft	3 m	Male Pins	Free Hanging (In-Line)	M12	M12	Polyvinyl Chloride (PVC)	Shielded	All	Round	Receptacle	5	All	Industrial Environments	Black	IP68 - Dust Tight Waterproof; NMEA 2000	Standard	Free Hanging (In-Line)	Female Sockets
Amphenol LTW PC-000505-0MM-CSB10	Receptacle	5	Keyed			Male Pins	Free Hanging (In-Line)	M12	M12	Polyvinyl Chloride (PVC)	Shielded	All	Round	Receptacle	5	All	Industrial Environments	Black	IP68 - Dust Tight Waterproof; NMEA 2000	Standard	Free Hanging (In-Line)
Amphenol LTW PC-000505-0MF-CSB20	Plug	5	Keyed			Male Pins	Free Hanging (In-Line)	M12	M12	Polyvinyl Chloride (PVC)	Shielded	All	Round	Receptacle	5	All	Industrial Environments	Black	IP68 - Dust Tight Waterproof; NMEA 2000	Standard	Free Hanging (In-Line)	Female Sockets
Amphenol LTW PC-000505-0MF-CSB01	Plug	5	Keyed	3.28 ft	1 m	Male Pins	Free Hanging (In-Line)	M12	M12	Polyvinyl Chloride (PVC)	Shielded	All	Round	Receptacle	5	All	Industrial Environments	Black	IP68 - Dust Tight Waterproof; NMEA 2000	Standard	Free Hanging (In-Line)	Female Sockets

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 19.39
		10	$ 16.80
		30	$ 15.92
		50	$ 15.69
		100	$ 13.85
		250	$ 12.92
		500	$ 12.65

Description

General part information

PC-000505 Series

Circular Cable Assembly Shielded 3.28' (1.00m)

Documents

Technical documentation and resources
