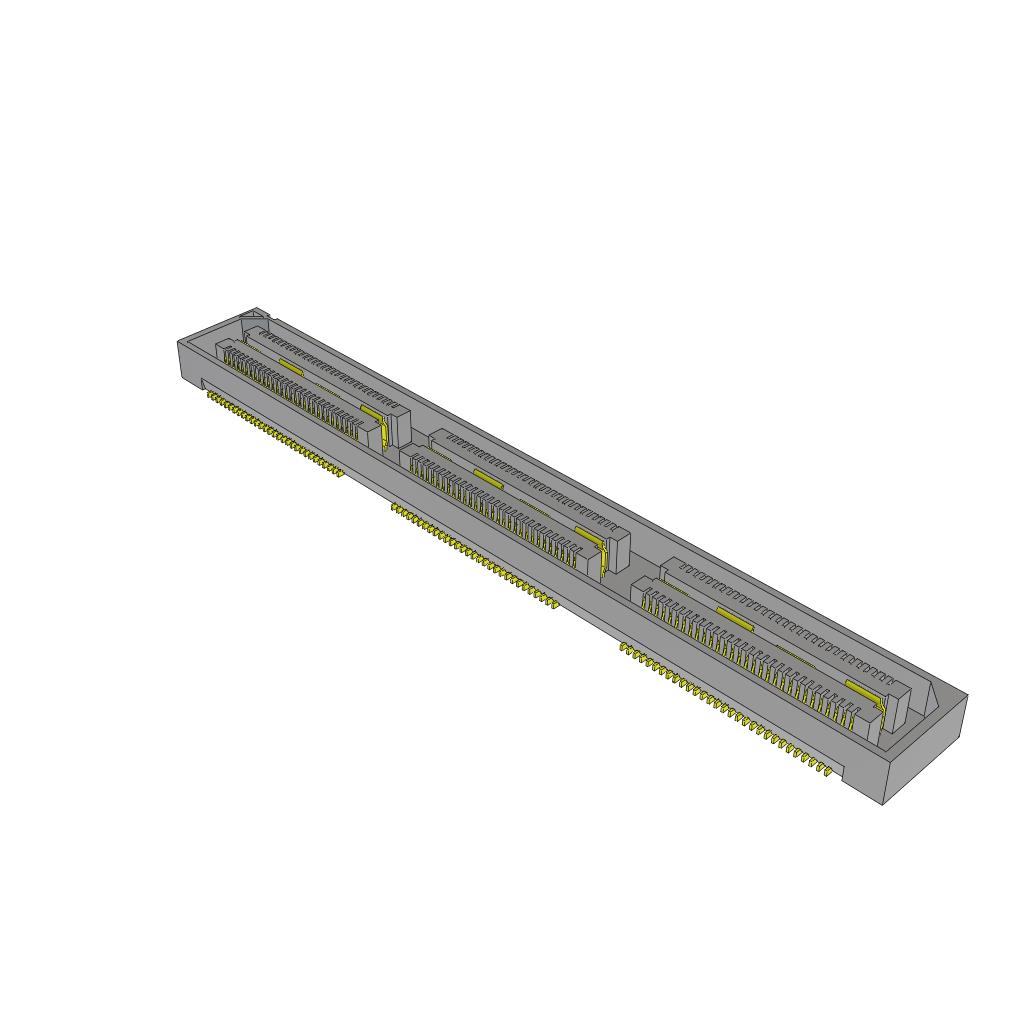

QSH-090-01-L-D

Active

Samtec Inc.

CONN RCPT 180POS SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsQSH-020-01-C-D-DP-A Datasheet 02 QSH Series Other Related Documents 03 +2

QSH-090-01-L-D

Active

Samtec Inc.

CONN RCPT 180POS SMD GOLD

Deep-Dive with AI

DocumentsQSH-020-01-C-D-DP-A Datasheet 02 QSH Series Other Related Documents 03 +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	QSH-090-01-L-D

Connector Type	Receptacle, Center Strip Contacts
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Ground Bus (Plane)
Height Above Board	3.25 mm
Height Above Board	0.128 in
Mated Stacking Heights	5 mm, 25 mm, 8 mm, 16 mm, 11 mm, 14 mm, 19 mm
Mounting Type	Surface Mount
Number of Positions	180
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

QSH-090 Series

Headers & Wire Housings

Part	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Number of Rows	Mounting Type	Features	Number of Positions	Pitch [x]	Pitch [x]	Height Above Board	Height Above Board	Mated Stacking Heights	Height Above Board [z]	Height Above Board [z]
Samtec Inc. QSH-090-01-L-D-EM2	Gold	10 Áin	0.25 Ám	Center Strip Contacts Receptacle	2	Board Edge Straddle Mount	Ground Bus (Plane)	180	0.5 mm	0.02 in
Samtec Inc. QSH-090-01-S-D-A-K-TR	Gold	30 Áin	0.76 Ám	Center Strip Contacts Receptacle	2	Surface Mount	Board Guide Ground Bus (Plane) Pick and Place	180	0.5 mm	0.02 in	3.25 mm	0.128 in	5 mm 8 mm 11 mm 14 mm 16 mm 19 mm 25 mm
Samtec Inc. QSH-090-01-F-D-RA-GP-K	Gold	3 Áin	0.076 Ám	Center Strip Contacts Receptacle	2	Surface Mount Right Angle	Ground Bus (Plane) Mating Flange Pick and Place	180	0.5 mm	0.02 in				0.333 in	8.45 mm
Samtec Inc. QSH-090-01-C-D	Gold	50 µin	1.27 µm	Center Strip Contacts Receptacle	2	Surface Mount	Ground Bus (Plane)	180	0.5 mm	0.02 in	3.25 mm	0.128 in	5 mm 8 mm 11 mm 14 mm 16 mm 19 mm 25 mm
Samtec Inc. QSH-090-01-C-D-A-TR	Gold	50 µin	1.27 µm	Center Strip Contacts Receptacle	2	Surface Mount		180	0.5 mm	0.02 in	3.25 mm	0.128 in	5 mm 8 mm 11 mm 14 mm 16 mm 19 mm 25 mm
Samtec Inc. QSH-090-01-H-D-A-TR	Gold	30 Áin	0.76 Ám	Center Strip Contacts Receptacle	2	Surface Mount		180	0.5 mm	0.02 in	3.25 mm	0.128 in	5 mm 8 mm 11 mm 14 mm 16 mm 19 mm 25 mm
Samtec Inc. QSH-090-01-L-D-RA-GP-K	Gold	10 Áin	0.25 Ám	Center Strip Contacts Receptacle	2	Surface Mount Right Angle	Ground Bus (Plane) Mating Flange Pick and Place	180	0.5 mm	0.02 in				0.333 in	8.45 mm
Samtec Inc. QSH-030-01-F-D-EM2	Gold	3 Áin	0.076 Ám	Center Strip Contacts Receptacle	2	Board Edge Straddle Mount	Ground Bus (Plane)	60	0.5 mm	0.02 in
Samtec Inc. QSH-090-01-L-D	Gold	10 Áin	0.25 Ám	Center Strip Contacts Receptacle	2	Surface Mount	Ground Bus (Plane)	180	0.5 mm	0.02 in	3.25 mm	0.128 in	5 mm 8 mm 11 mm 14 mm 16 mm 19 mm 25 mm
Samtec Inc. QSH-060-01-H-D-A-FL-TR	Gold	30 Áin	0.76 Ám	Center Strip Contacts Receptacle	2	Surface Mount	Board Guide Ground Bus (Plane) Latches	120	0.5 mm	0.02 in	3.25 mm	0.128 in	5 mm 8 mm 11 mm 14 mm 16 mm 19 mm 25 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	42	$ 15.10

QSH-090-01-L-D

Deep-Dive with AI

QSH-090-01-L-D

Deep-Dive with AI

Technical Specifications

QSH-090 Series

Pricing

Description

QSH-090 Series

Documents

QSH-020-01-C-D-DP-A Datasheet 02

QSH Series Other Related Documents 03

0.50 mm Q Pairs® High-Speed Ground Plane Socket Strip, Differential Pair

Datasheet

QSH-090 Series
