US2600008Z
ActiveDiodes Inc

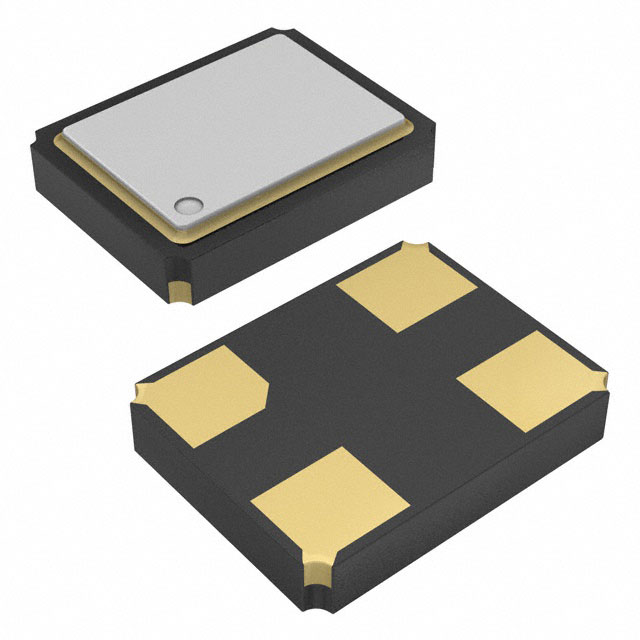

CRYSTAL 26.0000MHZ 9PF SMD
Deep-Dive with AI
Search across all available documentation for this part.
US2600008Z
ActiveDiodes Inc
CRYSTAL 26.0000MHZ 9PF SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | US2600008Z |
|---|---|
| Frequency | 26 MHz |
| Frequency Stability | 15 ppm |
| Frequency Tolerance | 10 ppm |
| Height - Seated (Max) [Max] | 0.016 in |
| Height - Seated (Max) [Max] | 0.4 mm |
| Load Capacitance | 9 pF |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension [x] | 1.6 mm |
| Size / Dimension [x] | 0.063 in |
| Size / Dimension [y] | 0.047 in |
| Size / Dimension [y] | 1.2 mm |
| Type | MHz Crystal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.02 | |
| Digi-Reel® | 1 | $ 1.02 | ||
| Tape & Reel (TR) | 3000 | $ 0.61 | ||
Description
General part information
US2600008 Series
26 MHz ±10ppm Crystal 9pF 120 Ohms 4-SMD, No Lead
Documents
Technical documentation and resources
