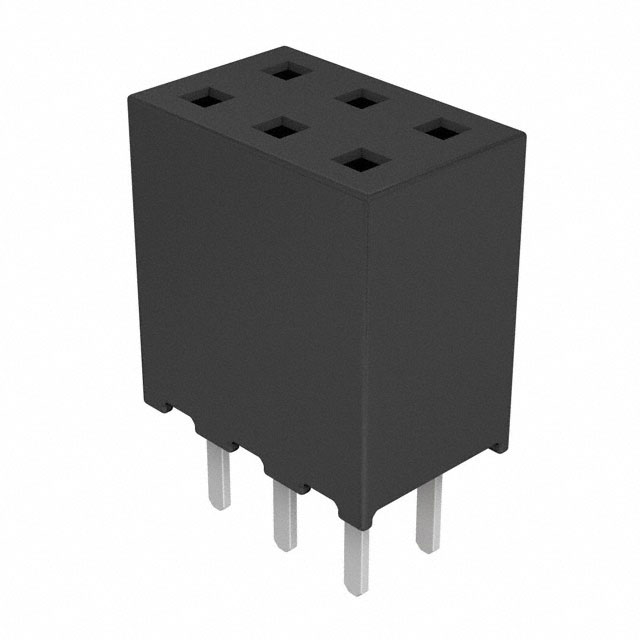

SQW-103-01-F-D

Active

Samtec Inc.

CONN RCPT 6POS 0.079 GOLD PCB

Deep-Dive with AI

Search across all available documentation for this part.

Documents2.00 mm Shrouded Terminal Strip Cost Effective Rugged PCB Sockets, 2.00mm pitch +2

SQW-103-01-F-D

Active

Samtec Inc.

CONN RCPT 6POS 0.079 GOLD PCB

Deep-Dive with AI

Documents2.00 mm Shrouded Terminal Strip Cost Effective Rugged PCB Sockets, 2.00mm pitch +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SQW-103-01-F-D

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	3 µin
Contact Finish Thickness - Mating	0.076 µm
Contact Length - Post	0.09 "
Contact Length - Post	2.29 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Forked
Current Rating (Amps)	3.8 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	6.35 mm
Insulation Height	0.25 in
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Style	Board to Board, Cable
Termination	Solder

SQW-103 Series

Part	Fastening Type	Material Flammability Rating	Termination	Insulation Height [z]	Insulation Height [z]	Number of Positions Loaded [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Contact Finish - Post	Contact Material	Row Spacing - Mating	Row Spacing - Mating	Mounting Type	Insulation Color	Number of Rows	Contact Shape	Contact Type	Contact Finish - Mating	Style	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Current Rating (Amps)	Insulation Material	Pitch - Mating [x]	Pitch - Mating [x]	Number of Positions	Insulation Height	Insulation Height	Number of Positions Loaded	Contact Length - Post	Contact Length - Post
Samtec Inc. SQW-103-01-F-D-VS-006	Push-Pull	UL94 V-0	Solder	0.3 in	7.62 mm	5	-55 °C	125 °C	Receptacle	Tin	Phosphor Bronze	0.079 in	2 mm	Surface Mount	Black	2	Square	Forked	Gold	Board to Board Cable	3 µin	0.076 µm	3.8 A	Liquid Crystal Polymer (LCP)	0.079 in	2 mm	6
Samtec Inc. SQW-103-01-L-D	Push-Pull	UL94 V-0	Solder				-55 °C	125 °C	Receptacle	Tin	Phosphor Bronze	0.079 in	2 mm	Through Hole	Black	2	Square	Forked	Gold	Board to Board Cable	10 çin	0.25 çm	3.8 A	Liquid Crystal Polymer (LCP)	0.079 in	2 mm	6	6.35 mm	0.25 in	All	0.09 "	2.29 mm
Samtec Inc. SQW-103-01-F-T	Push-Pull	UL94 V-0	Solder				-55 °C	125 °C	Receptacle	Tin	Phosphor Bronze	0.079 in	2 mm	Through Hole	Black	3	Square	Forked	Gold	Board to Board Cable	3 µin	0.076 µm	3.8 A	Liquid Crystal Polymer (LCP)	0.079 in	2 mm	9	6.35 mm	0.25 in	All	0.09 "	2.29 mm
Samtec Inc. SQW-103-01-F-D	Push-Pull	UL94 V-0	Solder				-55 °C	125 °C	Receptacle	Tin	Phosphor Bronze	0.079 in	2 mm	Through Hole	Black	2	Square	Forked	Gold	Board to Board Cable	3 µin	0.076 µm	3.8 A	Liquid Crystal Polymer (LCP)	0.079 in	2 mm	6	6.35 mm	0.25 in	All	0.09 "	2.29 mm
Samtec Inc. SQW-103-01-LM-D-VS-001	Push-Pull	UL94 V-0	Solder	0.3 in	7.62 mm	5	-55 °C	125 °C	Receptacle	Tin	Phosphor Bronze	0.079 in	2 mm	Surface Mount	Black	2	Square	Forked	Gold	Board to Board Cable	10 çin	0.25 çm	3.8 A	Liquid Crystal Polymer (LCP)	0.079 in	2 mm	6
Samtec Inc. SQW-103-01-L-D-VS	Push-Pull	UL94 V-0	Solder	0.3 in	7.62 mm		-55 °C	125 °C	Receptacle	Tin	Phosphor Bronze	0.079 in	2 mm	Surface Mount	Black	2	Square	Forked	Gold	Board to Board Cable	10 çin	0.25 çm	3.8 A	Liquid Crystal Polymer (LCP)	0.079 in	2 mm	6			All
Samtec Inc. SQW-103-01-F-D-VS	Push-Pull	UL94 V-0	Solder	0.3 in	7.62 mm		-55 °C	125 °C	Receptacle	Tin	Phosphor Bronze	0.079 in	2 mm	Surface Mount	Black	2	Square	Forked	Gold	Board to Board Cable	3 µin	0.076 µm	3.8 A	Liquid Crystal Polymer (LCP)	0.079 in	2 mm	6			All
