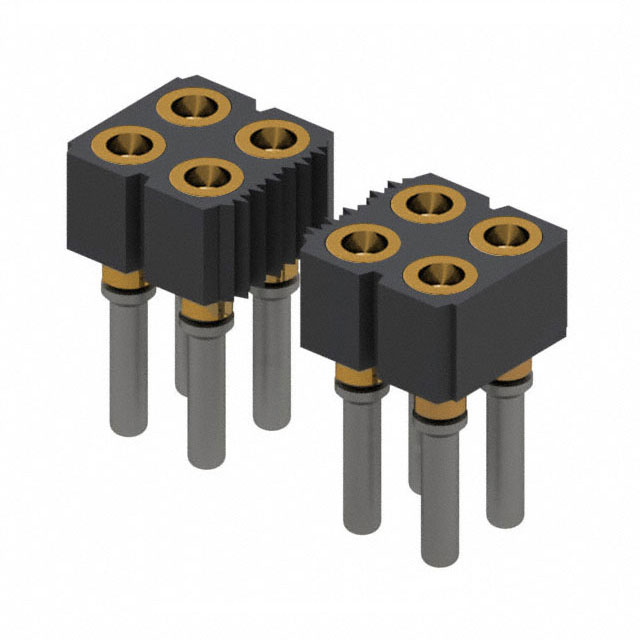

714-43-220-31-018000

Active

Mill-Max Manufacturing Corp.

CONN IC DIP SOCKET 20POS GOLD

Deep-Dive with AI

Search across all available documentation for this part.

714-43-220-31-018000

Active

Mill-Max Manufacturing Corp.

CONN IC DIP SOCKET 20POS GOLD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	714-43-220-31-018000

Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Finish Thickness - Post	30 µin
Contact Finish Thickness - Post	0.76 µm
Contact Material - Mating	Beryllium Copper
Contact Material - Post	Brass Alloy
Current Rating (Amps)	3 A
Features	Closed Frame, Carrier
Housing Material	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Mounting Type	Through Hole
Number of Positions or Pins (Grid)	20
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Pitch - Post	2.54 mm
Pitch - Post	0.1 in
Termination	Solder
Termination Post Length	4.32 mm
Termination Post Length	0.17 in
Type	2.54 mm
Type	0.1 "
Type	DIP

714-43 Series

...

Part	Contact Material - Post	Current Rating (Amps)	Pitch - Mating	Pitch - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Type	Type	Type	Contact Finish - Mating	Termination	Housing Material	Contact Finish - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Pitch - Post	Pitch - Post	Features	Contact Material - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Termination Post Length	Termination Post Length	Number of Positions or Pins (Grid)	Number of Positions	Contact Length - Post	Contact Length - Post	Number of Positions Loaded	Connector Type	Fastening Type	Contact Type	Number of Rows	Contact Material	Insulation Color	Contact Shape	Insulation Material	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Post [x]	Contact Length - Post [x]
Mill-Max Manufacturing Corp. 714-43-252-31-018000	Brass Alloy	3 A	0.1 in	2.54 mm	-55 °C	125 °C	2.54 mm	0.1 "	DIP	Gold	Solder	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	30 µin	0.76 µm	2.54 mm	0.1 in	Carrier Closed Frame	Beryllium Copper	30 Áin	0.76 Ám	Through Hole	4.32 mm	0.17 in
Mill-Max Manufacturing Corp. 714-43-220-31-018000	Brass Alloy	3 A	0.1 in	2.54 mm	-55 °C	125 °C	2.54 mm	0.1 "	DIP	Gold	Solder	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	30 µin	0.76 µm	2.54 mm	0.1 in	Carrier Closed Frame	Beryllium Copper	30 Áin	0.76 Ám	Through Hole	4.32 mm	0.17 in	20
Mill-Max Manufacturing Corp. 714-43-113-31-007000		3 A	0.1 in	2.54 mm	-55 °C	125 °C				Gold	Solder		Tin	200 µin	5.08 µm			Carrier		30 Áin	0.76 Ám	Through Hole				13	2.92 mm	0.115 in	All	Receptacle	Push-Pull	Female Socket	1	Beryllium Copper	Black	Circular	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester
Mill-Max Manufacturing Corp. 714-43-118-31-007000		3 A	0.1 in	2.54 mm	-55 °C	125 °C				Gold	Solder		Tin	200 µin	5.08 µm			Carrier		30 Áin	0.76 Ám	Through Hole				18	2.92 mm	0.115 in	All	Receptacle	Push-Pull	Female Socket	1	Beryllium Copper	Black	Circular	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester
Mill-Max Manufacturing Corp. 714-43-248-31-007000		3 A	0.1 in	2.54 mm	-55 °C	125 °C				Gold	Solder		Tin	200 µin	5.08 µm			Carrier		30 Áin	0.76 Ám	Through Hole				48	2.92 mm	0.115 in	All	Receptacle	Push-Pull	Female Socket	2	Beryllium Copper	Black	Circular	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	2.54 mm	0.1 in
Mill-Max Manufacturing Corp. 714-43-246-31-018000	Brass Alloy	3 A	0.1 in	2.54 mm	-55 °C	125 °C	2.54 mm	0.1 "	DIP	Gold	Solder	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	30 µin	0.76 µm	2.54 mm	0.1 in	Carrier Closed Frame	Beryllium Copper	30 Áin	0.76 Ám	Through Hole	4.32 mm	0.17 in	46
Mill-Max Manufacturing Corp. 714-43-136-41-001000		3 A	0.1 in	2.54 mm	-55 °C	125 °C				Gold	Solder		Tin	200 µin	5.08 µm			Carrier		30 Áin	0.76 Ám	Through Hole				36			All	Receptacle	Push-Pull	Female Socket	1	Beryllium Copper	Black	Circular	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester			0.134 in	3.4 mm
Mill-Max Manufacturing Corp. 714-43-103-31-007000		3 A	0.1 in	2.54 mm	-55 °C	125 °C				Gold	Solder		Tin	200 µin	5.08 µm			Carrier		30 Áin	0.76 Ám	Through Hole					2.92 mm	0.115 in	All	Receptacle	Push-Pull	Female Socket	1	Beryllium Copper	Black	Circular	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester
Mill-Max Manufacturing Corp. 714-43-145-31-012000		3 A	0.1 in	2.54 mm	-55 °C	125 °C				Gold	Solder		Tin	200 µin	5.08 µm			Carrier		30 Áin	0.76 Ám	Through Hole				45	3 mm	0.118 in	All	Receptacle	Push-Pull	Female Socket	1	Beryllium Copper	Black	Circular	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester
Mill-Max Manufacturing Corp. 714-43-238-31-007000		3 A	0.1 in	2.54 mm	-55 °C	125 °C				Gold	Solder		Tin	200 µin	5.08 µm			Carrier		30 Áin	0.76 Ám	Through Hole				38	2.92 mm	0.115 in	All	Receptacle	Push-Pull	Female Socket	2	Beryllium Copper	Black	Circular	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	2.54 mm	0.1 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 11.24
		10	$ 10.11
		25	$ 9.53
		50	$ 9.28
		100	$ 9.04
		250	$ 8.06
		500	$ 7.57
		1000	$ 6.69

Description

General part information

714-43 Series

20 (2 x 10) Pos DIP, 0.1" (2.54mm) Row Spacing Socket Gold Through Hole
