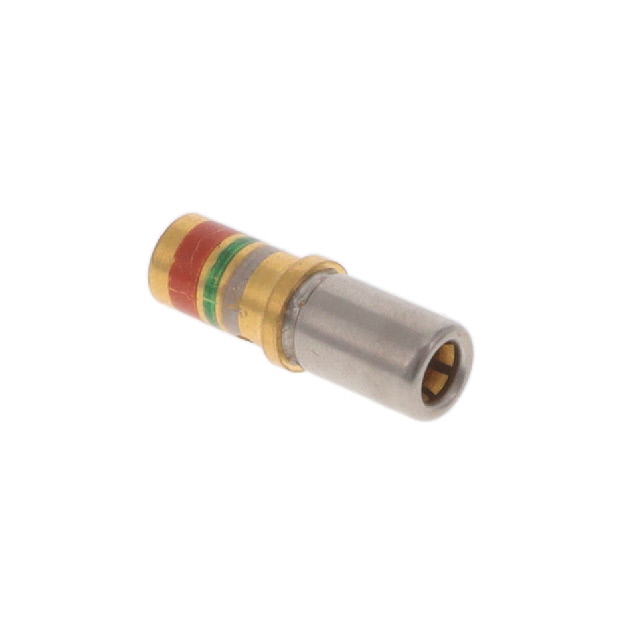

M39029/57-359
ActiveAmphenol Aerospace Operations
CONTACT SOCKET 12-14AWG CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
M39029/57-359
ActiveAmphenol Aerospace Operations
CONTACT SOCKET 12-14AWG CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | M39029/57-359 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 50 µin |
| Contact Finish Thickness | 1.27 µm |
| Contact Material | Copper Alloy |
| Contact Size | 12 |
| Contact Termination | Crimp |
| Contact Type | Socket |
| Grade | Military |
| Qualification | MIL-C-39029 |
| Type | Signal, Machined |
| Wire Gauge or Range - AWG [Max] | 14 AWG |
| Wire Gauge or Range - AWG [Min] | 12 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 8.37 | |
| 1 | $ 102.53 | |||
| 1 | $ 10.12 | |||
| 10 | $ 7.54 | |||
| 10 | $ 7.78 | |||
| 25 | $ 7.03 | |||
| 25 | $ 7.10 | |||
| 50 | $ 6.92 | |||
| 50 | $ 6.72 | |||
| 100 | $ 6.74 | |||
| 250 | $ 6.01 | |||
| 500 | $ 5.64 | |||
| 1000 | $ 5.20 | |||
Description
General part information
M39029/57 Series
Socket Contact 12-14 AWG Size 12 Crimp Gold
