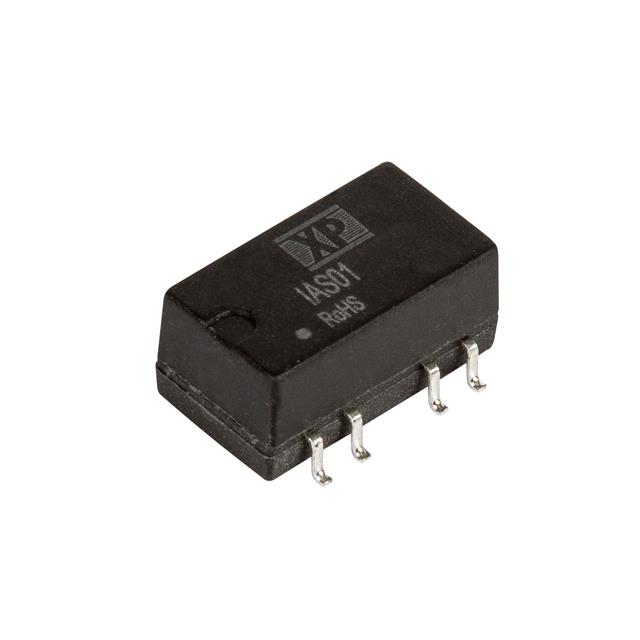

IAS0105D15

XP POWER

DC DC CONVERTER +/-15V 1W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

IAS0105D15

XP POWER

DC DC CONVERTER +/-15V 1W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	IAS0105D15

Applications	ITE (Commercial)
Approval Agency	CE, TUV, UL
Current - Output (Max)	34 mA
Efficiency	83 %
Mounting Type	Surface Mount
Number of Outputs	2
Operating Temperature [Max]	105 C
Operating Temperature [Min]	-40 °C
Package / Case	10-SMD Module, 6 Leads
Size / Dimension [x]	0.6 in
Size / Dimension [x]	15.2 mm
Size / Dimension [y]	0.33 in
Size / Dimension [y]	8.5 mm
Size / Dimension [z]	7.3 mm
Size / Dimension [z]	0.29 "
Type	Isolated Module
Voltage - Input (Max) [Max]	5.5 V
Voltage - Input (Min) [Min]	4.5 V
Voltage - Isolation	1.5 kV
Voltage - Output 1	15 V
Voltage - Output 2	-15 V

IAS0105 Series

Part	Voltage - Isolation	Voltage - Output 2	Applications	Voltage - Input (Max) [Max]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Mounting Type	Current - Output (Max) [Max]	Current - Output (Max) [Max]	Approval Agency	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output 1	Efficiency	Number of Outputs	Type	Voltage - Input (Min) [Min]	Package / Case	Current - Output (Max) [Min]	Current - Output (Max)	Current - Output (Max)
XP POWER IAS0105D12-TR	1.5 kV	-12 V	ITE (Commercial)	5.5 V	7.3 mm	0.6 in	0.33 in	15.2 mm	0.29 "	8.5 mm	Surface Mount	42 mA	42 mA	UL	-40 °C	105 C	12 V	83 %	2	Isolated Module	4.5 V	10-SMD Module 6 Leads
XP POWER IAS0105D24	1.5 kV	-24 V	ITE (Commercial)	5.5 V	7.3 mm	0.6 in	0.33 in	15.2 mm	0.29 "	8.5 mm	Surface Mount	21 mA		CE TUV UL	-40 °C	105 C	24 V	85 %	2	Isolated Module	4.5 V	10-SMD Module 6 Leads	21 mA
XP POWER IAS0105D15	1.5 kV	-15 V	ITE (Commercial)	5.5 V	7.3 mm	0.6 in	0.33 in	15.2 mm	0.29 "	8.5 mm	Surface Mount			CE TUV UL	-40 °C	105 C	15 V	83 %	2	Isolated Module	4.5 V	10-SMD Module 6 Leads		34 mA
XP POWER IAS0105D12	1.5 kV	-12 V	ITE (Commercial)	5.5 V	7.3 mm	0.6 in	0.33 in	15.2 mm	0.29 "	8.5 mm	Surface Mount	42 mA	42 mA	CE TUV UL	-40 °C	105 C	12 V	83 %	2	Isolated Module	4.5 V	10-SMD Module 6 Leads
XP POWER IAS0105D05-TR	1.5 kV	-5 V	ITE (Commercial)	5.5 V	7.3 mm	0.6 in	0.33 in	15.2 mm	0.29 "	8.5 mm	Surface Mount			UL	-40 °C	105 C	5 V		2	Isolated Module	4.5 V	10-SMD Module 6 Leads		100 mA	100 mA
XP POWER IAS0105D09	1.5 kV	-9 V	ITE (Commercial)	5.5 V	7.3 mm	0.6 in	0.33 in	15.2 mm	0.29 "	8.5 mm	Surface Mount			CE TUV UL	-40 °C	105 C	9 V	83 %	2	Isolated Module	4.5 V	10-SMD Module 6 Leads
XP POWER IAS0105D05	1.5 kV	-5 V	ITE (Commercial)	5.5 V	7.3 mm	0.6 in	0.33 in	15.2 mm	0.29 "	8.5 mm	Surface Mount			CE TUV UL	-40 °C	105 C	5 V		2	Isolated Module	4.5 V	10-SMD Module 6 Leads		100 mA	100 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	32	$ 3.73

Description

General part information

IAS0105 Series

Isolated Module DC DC Converter 2 Output 15V -15V 34mA, 34mA 4.5V - 5.5V Input
