031-318-1001

Active

AMPHENOL RF

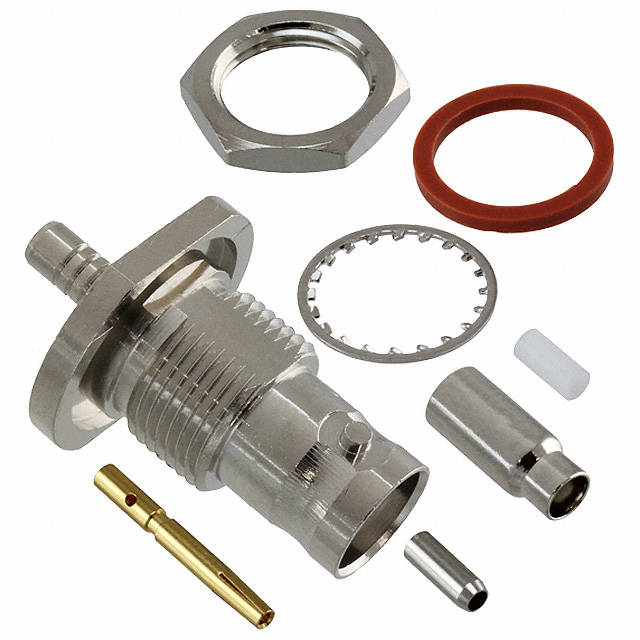

CONN BNC JACK STR 50 OHM CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

031-318-1001

Active

AMPHENOL RF

CONN BNC JACK STR 50 OHM CRIMP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	031-318-1001	031-31 Series

Body Finish	Nickel	Nickel
Body Material	Brass	Brass
Cable Group	RG-179, M17/152-RD316, 316 Double Braid, 188	RG-179, M17/152-RD316, 316 Double Braid, 188, 188A, 316, LMR-100, M17/119-RG174, RG-174
Center Contact Material	Phosphor Bronze	Phosphor Bronze, Brass
Center Contact Plating	Gold	Gold
Connector Style	BNC	BNC
Connector Type	Female Socket, Jack	Female Socket, Jack, Male Pin, Plug
Contact Termination	Crimp	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE), Polyoxymethylene (POM) Acetal
Fastening Type	Bayonet Lock	Bayonet Lock
Frequency - Max [Max]	4 GHz	4 GHz
Housing Color	Silver	Silver
Impedance	50 Ohms	50 Ohms
Includes	2 Insulators, 1 Gasket, 1 Ferrule, 1 Nut, 1 Lockwasher, 1 Connector, 1 Contact	2 Insulators, 1 Gasket, 1 Ferrule, 1 Nut, 1 Lockwasher, 1 Connector, 1 Contact, 1 Spacer, 1 Insulator
Insertion Loss	0.2 dB	0.2 dB
Mating Cycles	500	500
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Mounting Type	-	Free Hanging (In-Line), Right Angle
Number of Ports	1	1
Operating Temperature [Max]	165 °C	85 - 165 °C
Operating Temperature [Min]	-65 ░C	-65 - -40 ░C
Shield Termination	Crimp	Crimp
Voltage Rating	500 V	500 V

031-31 Series

CONN BNC JACK STR 50 OHM CRIMP

Part	Fastening Type	Connector Type	Contact Termination	Cable Group	Body Material	Housing Color	Shield Termination	Mounting Feature	Impedance	Frequency - Max [Max]	Body Finish	Center Contact Material	Center Contact Plating	Insertion Loss	Includes	Dielectric Material	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Mating Cycles	Connector Style	Number of Ports	Mounting Type
AMPHENOL RF 031-318-1001	Bayonet Lock	Female Socket, Jack	Crimp	188, 316 Double Braid, M17/152-RD316, RG-179	Brass	Silver	Crimp	Bulkhead - Front Side Nut	50 Ohms	4 GHz	Nickel	Phosphor Bronze	Gold	0.2 dB	1 Connector, 1 Contact, 1 Ferrule, 1 Gasket, 1 Lockwasher, 1 Nut, 2 Insulators	Polytetrafluoroethylene (PTFE)	500 V	-65 ░C	165 °C	500	BNC	1
AMPHENOL RF 031-315-1005	Bayonet Lock	Male Pin, Plug	Crimp	188, 316 Double Braid, M17/152-RD316, RG-179	Brass	Silver	Crimp		50 Ohms	4 GHz	Nickel	Brass	Gold	0.2 dB	1 Connector, 1 Contact, 1 Ferrule, 1 Insulator, 1 Spacer	Polytetrafluoroethylene (PTFE)	500 V	-65 ░C	165 °C	500	BNC	1	Free Hanging (In-Line)
AMPHENOL RF 031-316-RFX	Bayonet Lock	Male Pin, Plug	Crimp	188, 188A, 316, LMR-100, M17/119-RG174, RG-174	Brass	Silver	Crimp		50 Ohms	4 GHz	Nickel	Brass, Phosphor Bronze	Gold	0.2 dB	1 Connector, 1 Contact, 1 Ferrule, 1 Insulator	Polyoxymethylene (POM) Acetal	500 V	-40 °C	85 °C	500	BNC	1	Free Hanging (In-Line), Right Angle
AMPHENOL RF 031-317-RFX	Bayonet Lock	Female Socket, Jack	Crimp	188, 188A, 316, LMR-100, M17/119-RG174, RG-174	Brass	Silver	Crimp		50 Ohms	4 GHz	Nickel	Phosphor Bronze	Gold	0.2 dB	1 Connector, 1 Contact, 1 Ferrule, 1 Insulator	Polyoxymethylene (POM) Acetal	500 V	-55 °C	85 °C	500	BNC	1	Free Hanging (In-Line)
AMPHENOL RF 031-317	Bayonet Lock	Female Socket, Jack	Crimp	188, 188A, 316, LMR-100, M17/119-RG174, RG-174	Brass	Silver	Crimp		50 Ohms	4 GHz	Nickel	Phosphor Bronze	Gold	0.2 dB	1 Connector, 1 Contact, 1 Ferrule, 1 Insulator, 1 Spacer	Polytetrafluoroethylene (PTFE)	500 V	-65 ░C	165 °C	500	BNC	1	Free Hanging (In-Line)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 20.10
		10	$ 17.42
		25	$ 16.51
		50	$ 16.27
		100	$ 14.36
		300	$ 13.40
		500	$ 13.11

Description

General part information

031-31 Series

BNC Connector Jack, Female Socket 50 Ohms Panel Mount Crimp

Documents

Technical documentation and resources

No documents available
