HR1001LGS-Z

Active

Monolithic Power Systems Inc.

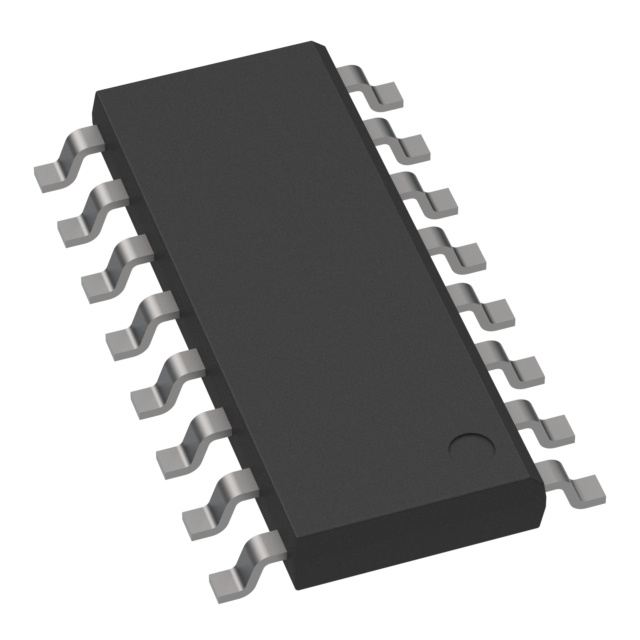

IC ENHANCED LLC CONTROLLR 16SOIC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HR1001LGS-Z

Active

Monolithic Power Systems Inc.

IC ENHANCED LLC CONTROLLR 16SOIC

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	HR1001LGS-Z	HR1001 Series

Applications	Flyback, Forward Converters, LLC	Flyback, Forward Converters, LLC
Current - Supply	3 mA	3 mA
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	125 ¯C	125 ¯C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	16-SOIC	16-SOIC
Package / Case [x]	0.154 in	0.154 in
Package / Case [y]	3.9 mm	3.9 mm
Supplier Device Package	16-SOIC	16-SOIC
Voltage - Input [Max]	6 V	6 V
Voltage - Input [Min]	-3 V	-3 V
Voltage - Supply [Max]	15.5 V	15.5 V
Voltage - Supply [Min]	13 V	13 V

HR1001 Series

IC ENHANCED LLC CONTROLLR 16SOIC

Part	Voltage - Supply [Min]	Voltage - Supply [Max]	Mounting Type	Voltage - Input [Min]	Voltage - Input [Max]	Supplier Device Package	Package / Case	Package / Case [x]	Package / Case [y]	Current - Supply	Applications	Operating Temperature [Min]	Operating Temperature [Max]
Monolithic Power Systems Inc. HR1001CGS	13 V	15.5 V	Surface Mount	-3 V	6 V	16-SOIC	16-SOIC	0.154 in	3.9 mm	3 mA	Flyback, Forward Converters, LLC	-40 °C	125 ¯C
Monolithic Power Systems Inc. HR1001AGS	13 V	15.5 V	Surface Mount	-3 V	6 V	16-SOIC	16-SOIC	0.154 in	3.9 mm	3 mA	Flyback, Forward Converters, LLC	-40 °C	125 ¯C
Monolithic Power Systems Inc. HR1001GS-Z	13 V	15.5 V	Surface Mount	-3 V	6 V	16-SOIC	16-SOIC	0.154 in	3.9 mm	3 mA	Flyback, Forward Converters, LLC	-40 °C	125 ¯C
Monolithic Power Systems Inc. HR1001BGS	13 V	15.5 V	Surface Mount	-3 V	6 V	16-SOIC	16-SOIC	0.154 in	3.9 mm	3 mA	Flyback, Forward Converters, LLC	-40 °C	125 ¯C
Monolithic Power Systems Inc. HR1001LGS-Z	13 V	15.5 V	Surface Mount	-3 V	6 V	16-SOIC	16-SOIC	0.154 in	3.9 mm	3 mA	Flyback, Forward Converters, LLC	-40 °C	125 ¯C
Monolithic Power Systems Inc. HR1001BGS-Z	13 V	15.5 V	Surface Mount	-3 V	6 V	16-SOIC	16-SOIC	0.154 in	3.9 mm	3 mA	Flyback, Forward Converters, LLC	-40 °C	125 ¯C
Monolithic Power Systems Inc. HR1001GS-P	13 V	15.5 V	Surface Mount	-3 V	6 V	16-SOIC	16-SOIC	0.154 in	3.9 mm	3 mA	Flyback, Forward Converters, LLC	-40 °C	125 ¯C
Monolithic Power Systems Inc. HR1001CGS-Z	13 V	15.5 V	Surface Mount	-3 V	6 V	16-SOIC	16-SOIC	0.154 in	3.9 mm	3 mA	Flyback, Forward Converters, LLC	-40 °C	125 ¯C
Monolithic Power Systems Inc. HR1001AGS-Z	13 V	15.5 V	Surface Mount	-3 V	6 V	16-SOIC	16-SOIC	0.154 in	3.9 mm	3 mA	Flyback, Forward Converters, LLC	-40 °C	125 ¯C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	2500	$ 1.15
		5000	$ 1.10

Description

General part information

HR1001 Series

Power Supply Controller Flyback, Forward Converters, LLC 16-SOIC
