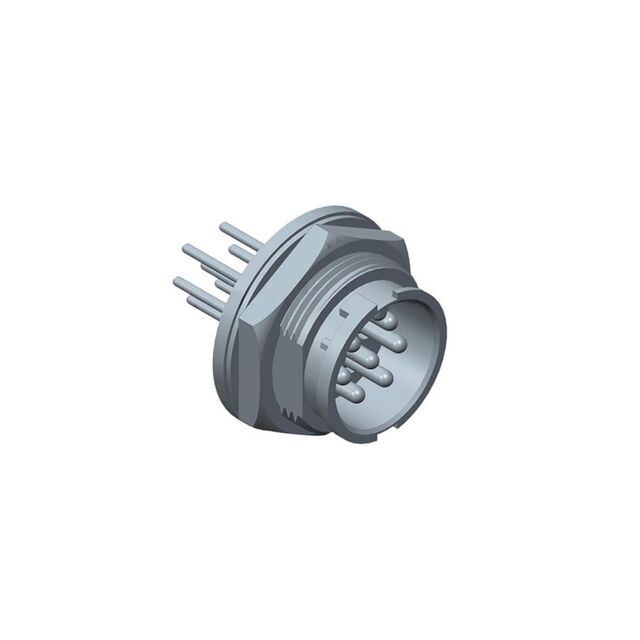

DC-07PMMP-LC7001
ActiveAmphenol LTW
CERES, LARGE SIZE, 20A, 07 PINS,
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DC-07PMMP-LC7001
ActiveAmphenol LTW
CERES, LARGE SIZE, 20A, 07 PINS,
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DC-07PMMP-LC7001 |
|---|---|
| Color | Black |
| Connector Type | Receptacle, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 20 A |
| Fastening Type | Bayonet Lock |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insert Material | Polyamide (PA), Nylon, Glass Filled |
| Mounting Feature | Bulkhead - Front Side Nut |
| Mounting Type | Through Hole, Panel Mount |
| Number of Positions | 7 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Keyed |
| Primary Material | Plastic |
| Shell Material | Nylon, Glass Filled, Polyamide (PA) |
| Shell Size - Insert | D |
| Shielding | Unshielded |
| Termination | Solder |
| Voltage Rating | 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 14.55 | |
| 10 | $ 12.90 | |||
| 100 | $ 11.25 | |||
| 1000 | $ 8.80 | |||
Description
General part information
DC-07PMMP Series
7 Position Circular Connector Receptacle, Male Pins Solder
