45114-010030-3749/14-S-6

Active

3M (TC)

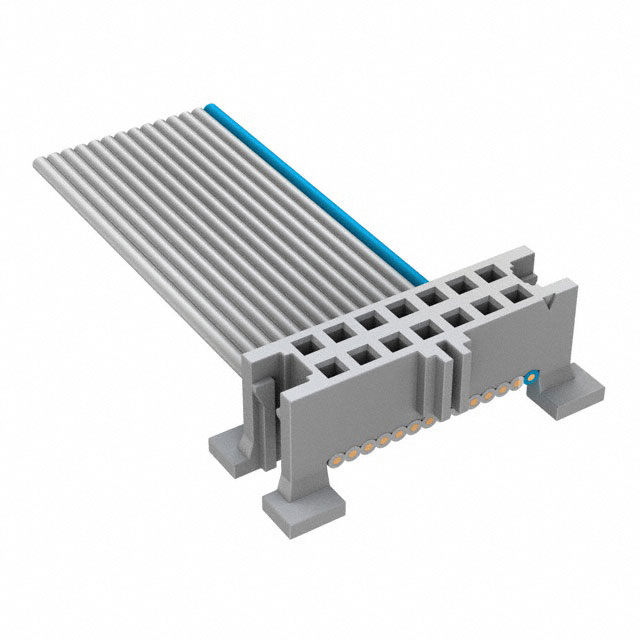

SGL END CBL ASSY 14POS SKT 6"

Deep-Dive with AI

Search across all available documentation for this part.

Documents451, 452 Socket/Header Series Datasheet +1

45114-010030-3749/14-S-6

Active

3M (TC)

SGL END CBL ASSY 14POS SKT 6"

Deep-Dive with AI

Documents451, 452 Socket/Header Series Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	45114-010030-3749/14-S-6

Cable Termination	IDC
Connector Type	Socket to Cable
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Features	Polarizing Key
Length	152.4 mm
Length	6 "
Length	0.5 '
Number of Positions	14
Number of Rows	2
Pitch - Cable	0.64 mm
Pitch - Cable [x]	0.025 in
Pitch - Connector	0.05 in
Pitch - Connector	1.27 mm
Shielding	Unshielded

45114 Series

Part	Contact Finish Thickness	Contact Finish Thickness	Length [x]	Length [x]	Pitch - Cable [x]	Pitch - Cable	Connector Type	Number of Rows	Features	Shielding	Number of Positions	Pitch - Connector	Pitch - Connector	Cable Termination	Contact Finish	Length	Length	Length	Length
3M (TC) 45114-010030-7700/14-H-36	0.76 Ám	30 Áin	3 ft	914.4 mm	0.025 in	0.64 mm	Socket to Socket	2	Polarizing Key	Unshielded	14	0.05 in	1.27 mm	IDC	Gold
3M (TC) 45114-010030-7700/14-B-06	0.76 Ám	30 Áin			0.025 in	0.64 mm	Socket to Cable	2	Polarizing Key	Unshielded	14	0.05 in	1.27 mm	IDC	Gold	152.4 mm	6 "	0.5 '
3M (TC) 45114-010030-7700/14-D-12	0.76 Ám	30 Áin			0.025 in	0.64 mm	Socket to Socket Reversed	2	Polarizing Key	Unshielded	14	0.05 in	1.27 mm	IDC	Gold	304.8 mm			1 ft
3M (TC) 45114-010030-7700/14-A-36	0.76 Ám	30 Áin	3 ft	914.4 mm	0.025 in	0.64 mm	Socket to Cable	2	Polarizing Key	Unshielded	14	0.05 in	1.27 mm	IDC	Gold
3M (TC) 45114-010030-7700/14-C-12	0.76 Ám	30 Áin			0.025 in	0.64 mm	Socket to Socket	2	Polarizing Key	Unshielded	14	0.05 in	1.27 mm	IDC	Gold	304.8 mm			1 ft
3M (TC) 45114-010030-7700/14-C-06	0.76 Ám	30 Áin			0.025 in	0.64 mm	Socket to Socket	2	Polarizing Key	Unshielded	14	0.05 in	1.27 mm	IDC	Gold	152.4 mm	6 "	0.5 '
3M (TC) 45114-010030-7700/14-F-24	0.76 Ám	30 Áin	2 '	609.6 mm	0.025 in	0.64 mm	Socket to Socket Reversed	2	Polarizing Key	Unshielded	14	0.05 in	1.27 mm	IDC	Gold
3M (TC) 45114-010030-3749/14-S-6	0.76 Ám	30 Áin			0.025 in	0.64 mm	Socket to Cable	2	Polarizing Key	Unshielded	14	0.05 in	1.27 mm	IDC	Gold	152.4 mm	6 "	0.5 '
3M (TC) 45114-010030-7700/14-C-24	0.76 Ám	30 Áin	2 '	609.6 mm	0.025 in	0.64 mm	Socket to Socket	2	Polarizing Key	Unshielded	14	0.05 in	1.27 mm	IDC	Gold
3M (TC) 45114-010030-7700/14-E-06	0.76 Ám	30 Áin			0.025 in	0.64 mm	Socket to Socket Reversed	2	Polarizing Key	Unshielded	14	0.05 in	1.27 mm	IDC	Gold	152.4 mm	6 "	0.5 '

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 10.53
		10	$ 8.08
		25	$ 7.30
		50	$ 6.77
		100	$ 6.29
		250	$ 5.72
		500	$ 5.34
		1000	$ 5.00

Description

General part information

45114 Series

14 Position Cable Assembly Rectangular Socket to Cable 0.500' (152.40mm, 6.00")
