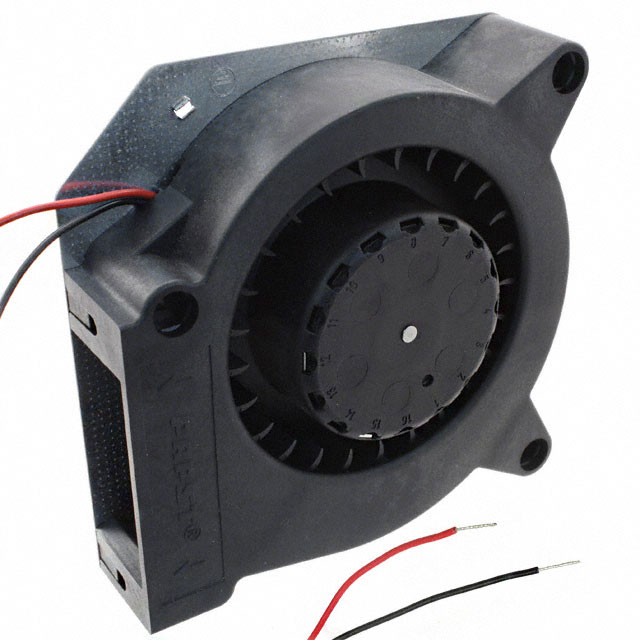

RL90-18/14N

Active

ebm-papst Inc.

FAN BLOWER 121X37MM 24VDC WIRE

Search across all available documentation for this part.

Active

ebm-papst Inc.

FAN BLOWER 121X37MM 24VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	RL90-18/14N

Air Flow	0.658 mł/min
Air Flow	23.5 CFM
Bearing Type	Ball
Fan Type	Blower
Lifetime @ Temp.	62500 Hrs
Material - Blade	Plastic, Fiberglass Reinforced
Material - Frame	Glass Filled, Plastic
Noise	58 dB(A)
Operating Temperature [Max]	75 ░C
Operating Temperature [Max]	75 °C
Operating Temperature [Min]	-30 ░C
Operating Temperature [Min]	-30 °C
Power (Watts)	5 W
RPM	2500 RPM
Size / Dimension	Square/Rounded
Size / Dimension [x]	121 mm
Size / Dimension [y]	121 mm
Termination	2 Wire Leads
Voltage - Rated	24 VDC
Voltage Range [Max]	28 VDC
Voltage Range [Min]	12 VDC
Weight	420.03 g
Weight	0.926 lb
Width [y]	37 mm

Part	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension	Lifetime @ Temp.	Weight	Weight	Air Flow	Air Flow	Material - Blade	Material - Frame	Bearing Type	Voltage - Rated	Power (Watts)	Noise	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Fan Type	Voltage Range [Min]	Voltage Range [Max]	Width [y]	RPM	Operating Temperature [Max]	Size / Dimension [z]	Operating Temperature [Min] [custom]	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Operating Temperature [Max] [custom]
ebm-papst Inc. RL90-18/14N	121 mm	121 mm	Square/Rounded	62500 Hrs	420.03 g	0.926 lb	0.658 mł/min	23.5 CFM	Plastic Fiberglass Reinforced	Glass Filled Plastic	Ball	24 VDC	5 W	58 dB(A)	-30 ░C	75 ░C	75 °C	-30 °C	2 Wire Leads	Blower	12 VDC	28 VDC	37 mm	2500 RPM
ebm-papst Inc. RL90-18/06		121 mm	Square	40 °C 37500 Hrs	680.4 g	1.5 lb	0.692 mł/min	24.7 CFM	Plastic Fiberglass Reinforced	Glass Filled Plastic	Ball	115 VAC	19.5 W	60 dB(A)	-30 ░C	85 °C		-30 °C	2 Wire Leads	Blower Flatpak			37 mm	2550 RPM	85 °C	121 mm
ebm-papst Inc. RL90-18/56		121 mm	Square	40 °C 37500 Hrs	680.4 g	1.5 lb	0.658 mł/min	23.5 CFM	Plastic Fiberglass Reinforced	Glass Filled Plastic	Ball	230 VAC	20 W	60 dB(A)					2 Wire Leads	Blower Flatpak			37 mm	2450 RPM		121 mm	-30 °C	-22 °F	70 °C	158 °F

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Blower 24VDC Square/Rounded - 121mm L x 121mm H Ball 23.5 CFM (0.658m³/min) 2 Wire Leads
