826845-3

Active

TE Connectivity AMP Connectors

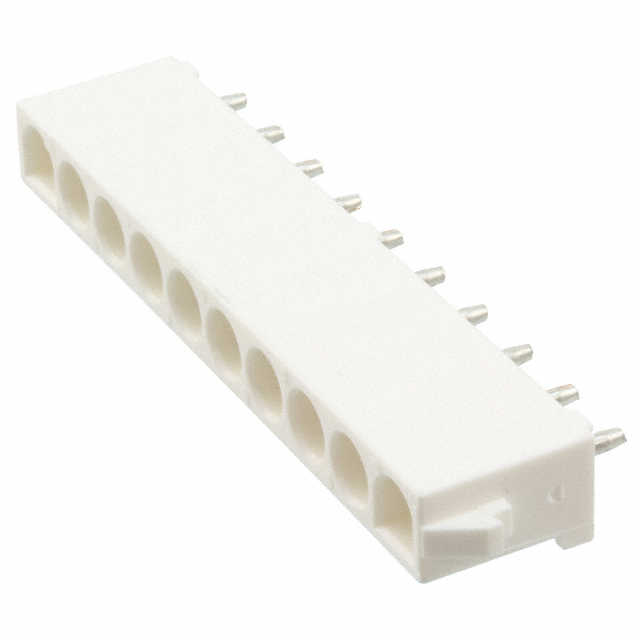

CONN HEADER VERT 10POS 6.35MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN HEADER VERT 10POS 6.35MM

Technical Specifications

Parameters and characteristics for this part

CONN HEADER VERT 10POS 6.35MM

Part	Number of Positions Loaded	Contact Type	Pitch - Mating	Pitch - Mating	Number of Positions	Contact Length - Post	Contact Length - Post	Applications	Insulation Color	Connector Type	Fastening Type	Contact Finish - Post	Contact Shape	Number of Rows	Termination	Insulation Height	Insulation Height	Shrouding	Style	Mounting Type	Contact Material
TE Connectivity AMP Connectors 826845-3	All	Male Pin	6.35 mm	0.25 in	10	0.146 in	3.7 mm	General Purpose	Natural	Header	Locking Ramp	Tin	Circular	1	Solder	14.75 mm	0.581 in	Shrouded - 4 Wall	Board to Cable/Wire	Through Hole	Copper Alloy

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10000	$ 1.69

General part information

Connector Header Through Hole 10 position 0.250" (6.35mm)
