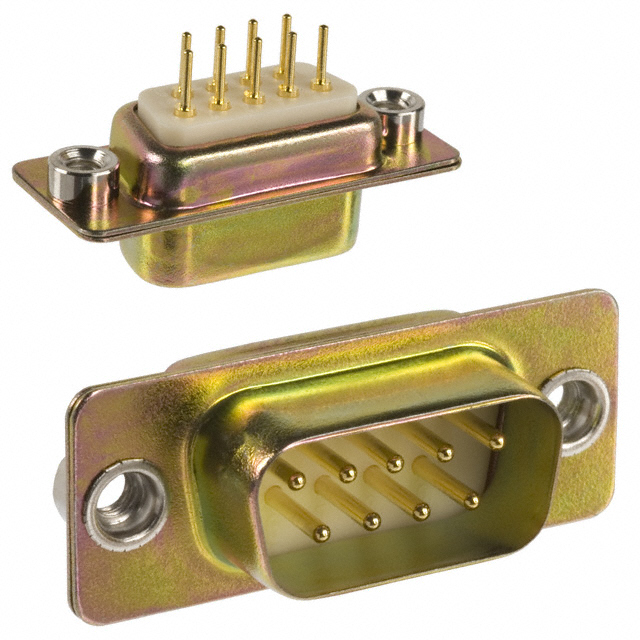

Specification	172-E09-111R011

Color	White
Connector Layout	DE, E
Connector Style	D-Sub
Connector Type	Male Pins, Plug
Contact Finish	Gold
Contact Finish Thickness	0
Contact Finish Thickness	Flash
Contact Finish Thickness (string set options)	Flash
Contact Form	Machined
Contact Material	Brass
Contact Type	Signal
Current Rating	5 A
Dielectric Material	Nylon 6T, Polyamide (PA6T)
Finish	Yellow Chromate Plated
Flange Feature	Board Side (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Through Hole
Number of Positions	9
Number of Rows	2
Operating Temperature (Max)	100 °C
Operating Temperature (Min)	-50 °C
Shell Material	Steel
Shell Size	1
Termination	Solder

172-E09 Series

Part	Connector Type	Contact Finish Thickness	Contact Finish Thickness (string set options)	Contact Finish Thickness	Contact Type	Shell Size	Connector Layout	Finish	Shell Material	Contact Finish	Termination	Flange Feature	Number of Positions	Material Flammability Rating	Current Rating	Connector Style	Number of Rows	Mounting Type	Dielectric Material	Operating Temperature (Min)	Operating Temperature (Max)	Contact Form	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Contact Material	Color	Features	Primary Material
NorComp Inc. 172-E09-101R031	Male Pins Plug	0	Flash	Flash	Signal	1	DE E	Yellow Chromate Plated	Steel	Gold	Solder Cup	Mating Side (4-40)	9	UL94 V-0	5 A	D-Sub	2	Panel Mount	Polybutylene Terephthalate (PBT)	-50 °C	100 °C	Machined	26 AWG	19.5 AWG	Brass	White
NorComp Inc. 172-E09-103R031	Male Pins Plug	0	Flash	Flash	Signal	1	DE E	Nickel Plated	Steel	Gold	Solder Cup	Mating Side (4-40)	9	UL94 V-0	5 A	D-Sub	2	Panel Mount	Polybutylene Terephthalate (PBT)	-50 °C	100 °C	Machined	26 AWG	19.5 AWG	Brass	White	Grounding Indents
NorComp Inc. 172-E09-212-021	Female Sockets Receptacle	0	Flash	Flash	Signal	1	DE E	Tin Plated	Steel	Gold	Solder	Board Side (4-40)	9	UL94 V-0	5 A	D-Sub	2	Panel Mount Through Hole	Polybutylene Terephthalate (PBT)	-50 °C	100 °C					White
NorComp Inc. 172-E09-201R031	Female Sockets Receptacle	0	Flash	Flash	Signal	1	DE E	Yellow Chromate Plated	Steel	Gold	Solder Cup	Mating Side (4-40)	9	UL94 V-0	5 A	D-Sub	2	Panel Mount	Polybutylene Terephthalate (PBT)	-50 °C	100 °C	Machined	26 AWG	19.5 AWG	Brass	White
NorComp Inc. 172-E09-113R001	Male Pins Plug	0	Flash	Flash	Signal	1	DE E	Nickel Plated	Steel	Gold	Solder	Housing Shell (Unthreaded)	9	UL94 V-0	5 A	D-Sub	2	Panel Mount Through Hole	Nylon 6T Polyamide (PA6T)	-50 °C	100 °C	Machined			Brass	White	Grounding Indents
NorComp Inc. 172-E09-202R032	Female Sockets Receptacle	30 µin			Signal	1	DE E	Tin Plated	Steel	Gold	Solder Cup	Board Side (4-40)	9	UL94 V-0	5 A	D-Sub	2	Free Hanging (In-Line)	Nylon 6T Polyamide (PA6T)	-55 °C	125 °C	Machined			Brass	Black		Metal
NorComp Inc. 172-E09-102R031	Male Pins Plug	0	Flash	Flash	Signal	1	DE E	Tin Plated	Steel	Gold	Solder Cup	Mating Side (4-40)	9	UL94 V-0	5 A	D-Sub	2	Panel Mount	Polybutylene Terephthalate (PBT)	-50 °C	100 °C	Machined	26 AWG	19.5 AWG	Brass	White	Grounding Indents
NorComp Inc. 172-E09-111R011	Male Pins Plug	0	Flash	Flash	Signal	1	DE E	Yellow Chromate Plated	Steel	Gold	Solder	Board Side (4-40)	9	UL94 V-0	5 A	D-Sub	2	Panel Mount Through Hole	Nylon 6T Polyamide (PA6T)	-50 °C	100 °C	Machined			Brass	White
NorComp Inc. 172-E09-212-911	Female Sockets Receptacle	0	Flash	Flash	Signal	1	DE E	Tin Plated	Steel	Gold	Solder	Board Side (4-40) Female Screwlock (4-40) Mating Side	9	UL94 V-0	5 A	D-Sub	2	Panel Mount Through Hole	Polybutylene Terephthalate (PBT)	-50 °C	100 °C					White	Board Lock
NorComp Inc. 172-E09-203R011	Female Sockets Receptacle	0	Flash	Flash	Signal	1	DE E	Nickel Plated	Steel	Gold	Solder Cup	Cable Side (4-40)	9	UL94 V-0	5 A	D-Sub	2	Panel Mount	Polybutylene Terephthalate (PBT)	-50 °C	100 °C	Machined	26 AWG	19.5 AWG	Brass	White

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

172-E09-111R011 | Datasheet

Backshell Reference Guide
