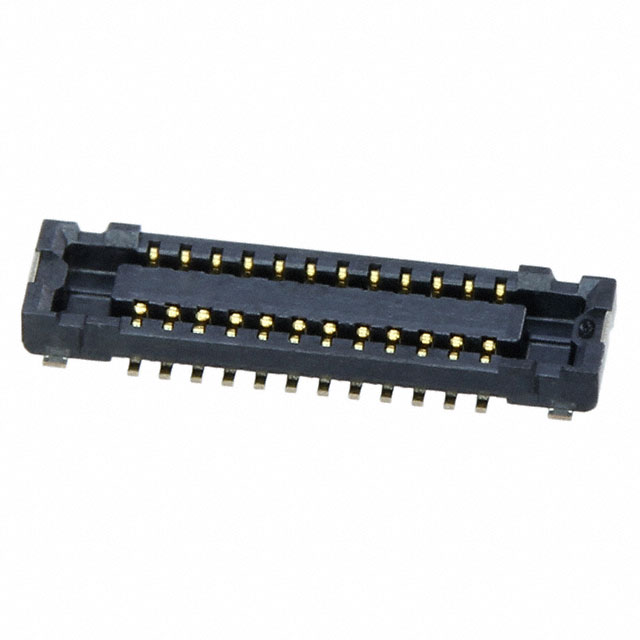

AXE124527A

Obsolete

Panasonic Electric Works

CONN SOCKET 24POS SMD GOLD

Search across all available documentation for this part.

Obsolete

Panasonic Electric Works

CONN SOCKET 24POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	AXE124527A

Connector Type	Socket, Center Strip Contacts
Contact Finish	Gold
Features	Solder Retention
Height Above Board [z]	0.03 in
Height Above Board [z]	0.75 mm
Mated Stacking Heights	0.8 mm
Mounting Type	Surface Mount
Number of Positions	24
Number of Rows	2
Pitch [x]	0.016 in
Pitch [x]	0.4 mm

Part	Height Above Board [z]	Height Above Board [z]	Number of Rows	Number of Positions	Pitch [x]	Pitch [x]	Mounting Type	Contact Finish	Features	Mated Stacking Heights	Connector Type
Panasonic Electric Works AXE124527A	0.03 in	0.75 mm	2	24	0.016 in	0.4 mm	Surface Mount	Gold	Solder Retention	0.8 mm	Socket Center Strip Contacts
Panasonic Electric Works AXE124527D	0.03 in	0.75 mm	2	24	0.016 in	0.4 mm	Surface Mount	Gold	Solder Retention	0.8 mm	Socket Center Strip Contacts

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

24 Position Connector Socket, Center Strip Contacts Surface Mount Gold
