Molex

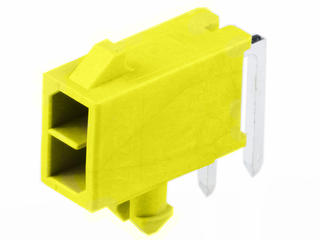

MICRO-FIT+ VERSA COLOR RIGHT-ANGLE HEADER, THROUGH HOLE, 3.00MM PITCH, DUAL ROW, 2 CIRCUITS, MATTE TIN (SN) PLATING, GLOW-WIRE CAPABLE, NATURAL

2125280210

2125280210

Active
Molex

MICRO-FIT+ VERSA COLOR RIGHT-ANGLE HEADER, THROUGH HOLE, 3.00MM PITCH, DUAL ROW, 2 CIRCUITS, MATTE TIN (SN) PLATING, GLOW-WIRE CAPABLE, NATURAL

Description

General part information

212528 Series

Micro-Fit+ Versa Color Right-Angle Header, Through Hole, 3.00mm Pitch, Dual Row, 2 Circuits, 0.38µm Gold (Au) Plating, Glow-Wire Capable, Red

Technical Specifications

Parameters and characteristics for this part

Specification2125280210
Connector TypeHeader
Contact Finish - MatingTin
Contact Finish - PostTin
Contact Length - Post0.125 in
Contact MaterialCopper Alloy
Contact ShapeSquare
Contact TypeMale Pin
Current Rating0 A
Current RatingVaries by Wire Gauge
Fastening TypeLocking Ramp
FeaturesBoard Lock
Insulation ColorNatural
Insulation Height0.291 in
Insulation MaterialGlass Filled, Liquid Crystal Polymer (LCP)
Material Flammability RatingUL94 V-0
Mounting TypeThrough Hole, Right Angle
Number of Positions2
Number of Positions LoadedAll
Number of Rows2
Operating Temperature (Max)125 °C
Operating Temperature (Min)-40 °C
Row Spacing - Mating0.118 in
ShroudingShrouded - 4 Wall
StyleCable/Wire, Board
TerminationSolder
Voltage Rating600 V
Voltage Rating (Type)DC
