M2025SS1G03

Obsolete

NKK Switches

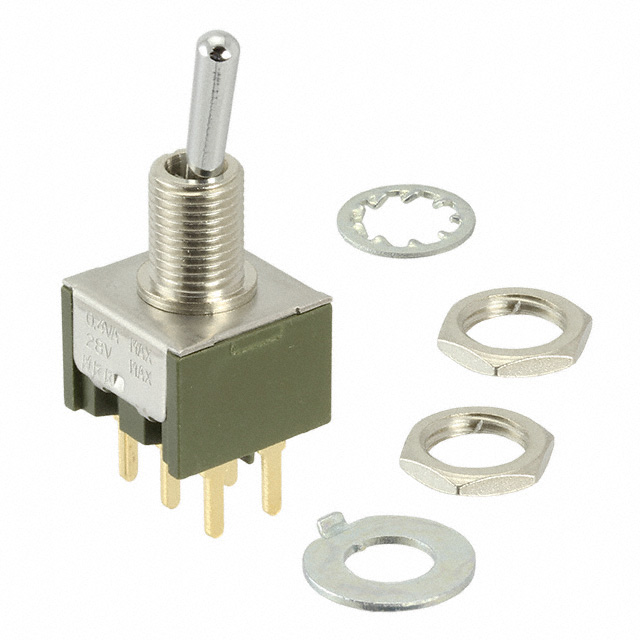

SWITCH TOGGLE DPDT 0.4VA 28V

Search across all available documentation for this part.

Obsolete

NKK Switches

SWITCH TOGGLE DPDT 0.4VA 28V

Technical Specifications

Parameters and characteristics for this part

Specification	M2025SS1G03

Actuator Material	Brass, Chrome Plated
Actuator Type	Standard Round
Bushing Thread	1/4-40
Circuit	DPDT
Current Rating (Amps)	0.4 VA
Electrical Life	50000 Cycles
Features	Epoxy Sealed Terminals
Illumination	Non-Illuminated
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Panel Cutout Dimensions [diameter]	6.5 mm
Switch Function	On-Mom
Termination Style	PC Pin
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

Part	Illumination	Circuit	Actuator Length [x]	Current Rating (Amps)	Actuator Type	Actuator Material	Features	Switch Function	Electrical Life	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Panel Cutout Dimensions [diameter]	Bushing Thread	Voltage Rating - DC	Voltage Rating - AC
NKK Switches M2025SS1W03-BA	Non-Illuminated	DPDT	13.5 mm	3 A 6 A	Standard Round with Cap	Brass Chrome Plated	Black Cap	On-Mom	25000 Steps	PC Pin	-30 ░C	85 °C	6.5 mm	1/4-40	30 V	125 V
NKK Switches M2025SS1G03	Non-Illuminated	DPDT		0.4 VA	Standard Round	Brass Chrome Plated	Epoxy Sealed Terminals	On-Mom	50000 Cycles	PC Pin	-30 ░C	85 °C	6.5 mm	1/4-40	28 V	28 V
NKK Switches M2025SS1W03	Non-Illuminated	DPDT		3 A 6 A	Standard Round	Brass Chrome Plated	Epoxy Sealed Terminals	On-Mom	25000 Steps	PC Pin	-30 ░C	85 °C	6.5 mm	1/4-40	30 V	125 V
NKK Switches M2025SS1G06	Non-Illuminated	DPDT		0.4 VA	Standard Round	Brass Chrome Plated	Epoxy Sealed Terminals	On-Mom	50000 Cycles	Wire Wrap	-30 ░C	85 °C	6.5 mm	1/4-40	28 V	28 V
NKK Switches M2025SS1W01-BA	Non-Illuminated	DPDT	13.5 mm	3 A 6 A	Standard Round with Cap	Brass Chrome Plated	Black Cap	On-Mom	25000 Steps	Solder Lug	-30 ░C	85 °C	6.5 mm	1/4-40	30 V	125 V
NKK Switches M2025SS1G01	Non-Illuminated	DPDT		0.4 VA	Standard Round	Brass Chrome Plated	Epoxy Sealed Terminals	On-Mom	50000 Cycles	Solder Lug	-30 ░C	85 °C	6.5 mm	1/4-40	28 V	28 V
NKK Switches M2025SS1A06	Non-Illuminated	DPDT		3 A 6 A	Standard Round	Brass Chrome Plated	Epoxy Sealed Terminals	On-Mom	25000 Steps	Wire Wrap	-30 ░C	85 °C	6.5 mm	1/4-40	30 V	125 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Toggle Switch DPDT Panel Mount
