STEVAL-IFP003V1
ActiveSTMicroelectronics

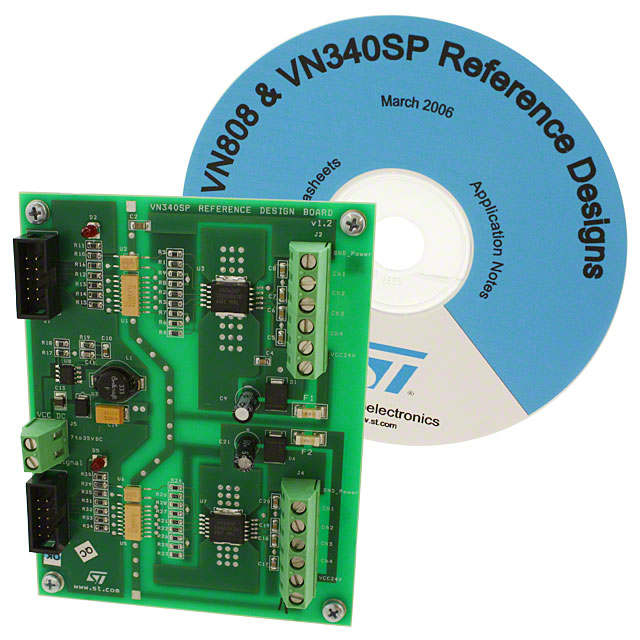

EVAL BOARD FOR VN340
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
STEVAL-IFP003V1
ActiveSTMicroelectronics
EVAL BOARD FOR VN340
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | STEVAL-IFP003V1 | VN340 Series |
|---|---|---|
| - | - | |
| Contents | Board(s) | Board(s) |
| Current - Output (Max) | - | 1 - 700 A |
| Embedded | False | False |
| Fault Protection | - | Over Temperature, Current Limiting (Fixed) |
| Features | - | Status Flag |
| Function | High Side Driver (Internal FET) | High Side Driver (Internal FET) |
| Input Type | - | Non-Inverting |
| Interface | - | On/Off |
| Mounting Type | - | Surface Mount |
| Number of Outputs | - | 4 |
| Operating Temperature | - | -40 °C |
| Operating Temperature | - | 125 ¯C |
| Output Configuration | - | High Side |
| Output Type | - | N-Channel |
| Package / Case | - | PowerSO-10 Exposed Bottom Pad |
| Primary Attributes | 4-Channel (Quad) | 4-Channel (Quad) |
| Ratio - Input:Output | - | 1:1 |
| Rds On (Typ) | - | 200 mOhm |
| Secondary Attributes | Thermal, Short-Circuit, Undervoltage Protection | Thermal, Short-Circuit, Undervoltage Protection |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 10-PowerSO |
| Switch Type | - | General Purpose |
| Type | Power Management | Power Management |
| Utilized IC / Part | VN340 | VN340 |
| Voltage - Load | - | 36 V |
| Voltage - Load | - | 10 V |
| Voltage - Supply (Vcc/Vdd) | - | False |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
VN340 Series
RELAY DRIVER, STAINLESS STEEL, 10 TO 36V SUPPLY, 1A OUT, -40 TO 125 °C, POWERSO-10
| Part | Mounting Type | Voltage - Supply (Vcc/Vdd) | Switch Type | Output Configuration | Output Type | Features | Number of Outputs | Input Type | Fault Protection | Package / Case | Ratio - Input:Output [custom] | Current - Output (Max) [Max] | Interface | Operating Temperature [Min] | Operating Temperature [Max] | Rds On (Typ) | Supplier Device Package | Voltage - Load [Max] | Voltage - Load [Min] | Function | Type | Primary Attributes | Supplied Contents | Utilized IC / Part | Contents | Secondary Attributes | Embedded |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
STMicroelectronics VN340SP-33-E | Surface Mount | General Purpose | High Side | N-Channel | Status Flag | 4 | Non-Inverting | Current Limiting (Fixed), Over Temperature | PowerSO-10 Exposed Bottom Pad | 1:1 | 1 A | On/Off | -40 °C | 125 ¯C | 200 mOhm | 10-PowerSO | 36 V | 10 V | |||||||||
STMicroelectronics VN340SP-33-E | |||||||||||||||||||||||||||
STMicroelectronics VN340SP-E | |||||||||||||||||||||||||||
STMicroelectronics VN340SP-E | Surface Mount | General Purpose | High Side | N-Channel | Status Flag | 4 | Non-Inverting | Current Limiting (Fixed), Over Temperature | PowerSO-10 Exposed Bottom Pad | 1:1 | 700 mA | On/Off | -40 °C | 125 ¯C | 200 mOhm | 10-PowerSO | 36 V | 10 V | |||||||||
STMicroelectronics VN340SP-33-E | |||||||||||||||||||||||||||
STMicroelectronics VN340SP-E | |||||||||||||||||||||||||||
STMicroelectronics STEVAL-IFP003V1 | High Side Driver (Internal FET) | Power Management | 4-Channel (Quad) | Board(s) | VN340 | Board(s) | Short-Circuit, Thermal, Undervoltage Protection | ||||||||||||||||||||
STMicroelectronics VN340SP-E |
Description
General part information
VN340 Series
VN340 - High Side Driver (Internal FET) Power Management Evaluation Board
