R161206000

Active

Radiall USA, Inc.

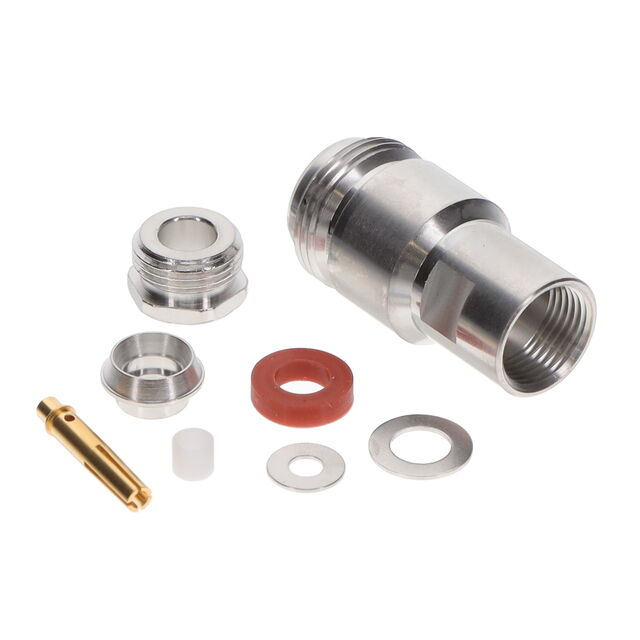

N F STR CL 5/50S+D C50

Search across all available documentation for this part.

Active

Radiall USA, Inc.

N F STR CL 5/50S+D C50

Technical Specifications

Parameters and characteristics for this part

Specification	R161206000

Body Material	Brass
Cable Group	RG-58
Cable Group	142, 400, 223
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	N Type
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Impedance	50 Ohms
Includes	2 Washer, 1 Braid Clamp, 8 pcs, 1 Contact, 1 Clamp Nut, 1 Gasket, 1 Spacer, 1 Connector
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Clamp
Voltage Rating	850 V

Part	Impedance	Center Contact Plating	Operating Temperature [Max]	Operating Temperature [Min]	Contact Termination	Mounting Type	Connector Style	Dielectric Material	Cable Group	Cable Group	Frequency - Max [Max]	Center Contact Material	Shield Termination	Body Material	Includes	Mating Cycles	Voltage Rating	Number of Ports	Connector Type
Radiall USA, Inc. R161206000	50 Ohms	Gold	155 °C	-55 °C	Solder	Free Hanging (In-Line)	N Type	Polytetrafluoroethylene (PTFE)	RG-58	142 223 400	11 GHz	Beryllium Copper	Clamp	Brass	1 Braid Clamp 1 Clamp Nut 1 Connector 1 Contact 1 Gasket 1 Spacer 2 Washer 8 pcs	500	850 V	1	Female Socket Jack

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

N Type Connector Jack, Female Socket 50 Ohms Free Hanging (In-Line) Solder
