L77SDAH15SOL2

Active

Amphenol ICC (Commercial Products)

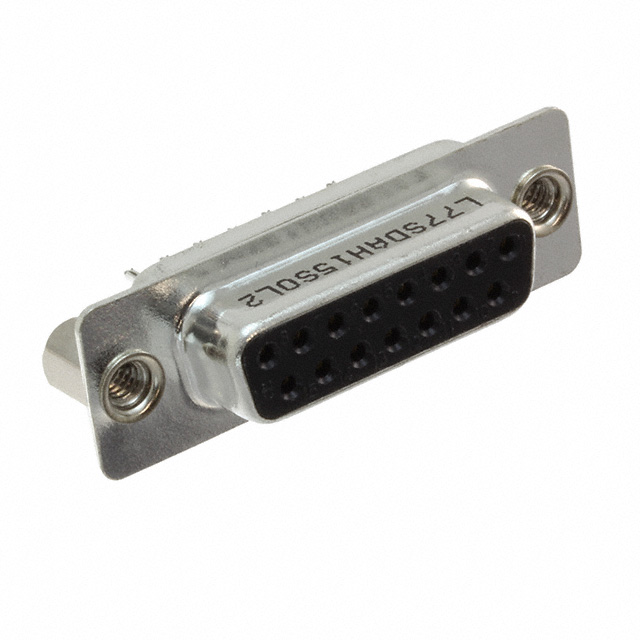

CONN D-SUB RCPT 15POS VERT SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

L77SDAH15SOL2

Active

Amphenol ICC (Commercial Products)

CONN D-SUB RCPT 15POS VERT SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	L77SDAH15SOL2

Color	Black
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Form	Stamped
Contact Material	Phosphor Bronze
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Thermoplastic, Glass Filled
Flange Feature	Board Side, 4-40
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	15
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	2
Termination	Solder
Voltage Rating	250 VDC

L77SDAH15 Series

Part	Mounting Type	Contact Type	Connector Style	Contact Form	Voltage Rating	Shell Size, Connector Layout	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Contact Finish	Connector Type	Contact Material	Flange Feature	Number of Rows	Dielectric Material	Number of Positions	Material Flammability Rating	Contact Finish Thickness	Termination	Color	Wire Gauge	Contact Finish Thickness	Contact Finish Thickness
Amphenol ICC (Commercial Products) L77SDAH15SOL2RM8G	Through Hole	Signal	D-Sub	Stamped	250 VDC	2	-55 °C	125 °C	3 A	Gold	Receptacle Female Sockets	Phosphor Bronze	Board Side (4-40) Mating Side Female Screwlock (4-40)	2	Thermoplastic Glass Filled	15	UL94 V-0	Flash	Solder	Black
Amphenol ICC (Commercial Products) L77SDAH15SVF	Free Hanging (In-Line)	Signal	D-Sub	Stamped	250 VDC	2	-55 °C	105 ░C	3 A	Gold	Receptacle Female Sockets	Brass	Cable Side (4-40) Mating Side Female Screwlock (4-40)	2	Thermoplastic Glass Filled	15	UL94 V-0	Flash		Black	20 AWG
Amphenol ICC (Commercial Products) L77SDAH15SOL2	Through Hole	Signal	D-Sub	Stamped	250 VDC	2	-55 °C	125 °C	3 A	Gold	Receptacle Female Sockets	Phosphor Bronze	4-40 Board Side	2	Thermoplastic Glass Filled	15	UL94 V-0	Flash	Solder	Black
Amphenol ICC (Commercial Products) L77SDAH15SVFC309	Free Hanging (In-Line)	Signal	D-Sub	Stamped	250 VDC	2	-55 °C	105 ░C	3 A	Gold	Receptacle Female Sockets	Brass	Cable Side (4-40) Mating Side Female Screwlock (4-40)	2	Thermoplastic Glass Filled	15	UL94 V-0			Black	20 AWG	0.76 Ám	30 Áin
Amphenol ICC (Commercial Products) L77SDAH15S	Free Hanging (In-Line)	Signal	D-Sub	Stamped	250 VDC	2	-55 °C	105 ░C	3 A	Gold	Receptacle Female Sockets	Brass	Cable Side	2	Thermoplastic Glass Filled	15	UL94 V-0	Flash		Black	20 AWG
Amphenol ICC (Commercial Products) L77SDAH15SOL2RM8C309	Through Hole	Signal	D-Sub	Stamped	250 VDC	2	-55 °C	125 °C	3 A	Gold	Receptacle Female Sockets	Phosphor Bronze	Board Side (4-40) Mating Side Female Screwlock (4-40)	2	Thermoplastic Glass Filled	15	UL94 V-0		Solder	Black		0.76 Ám	30 Áin
Amphenol ICC (Commercial Products) L77SDAH15SOL2RM5C309	Through Hole	Signal	D-Sub	Stamped	250 VDC	2	-55 °C	125 °C	3 A	Gold	Receptacle Female Sockets	Phosphor Bronze	4-40 Board Side	2	Thermoplastic Glass Filled	15	UL94 V-0		Solder	Black		0.76 Ám	30 Áin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 1.71
		10	$ 1.49
		25	$ 1.43
		70	$ 1.39
		140	$ 1.33
		280	$ 1.20
		490	$ 1.11
		980	$ 0.95
		2450	$ 0.89

Description

General part information

L77SDAH15 Series

15 Position D-Sub Receptacle, Female Sockets Connector
