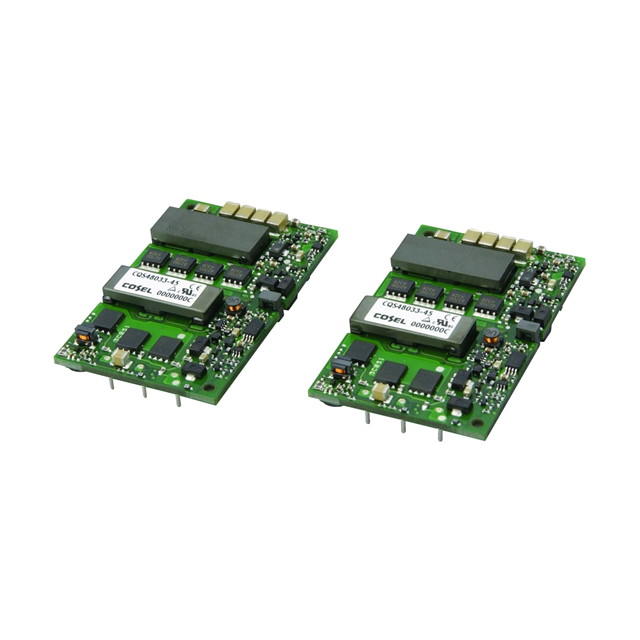

CQS48015-50
ObsoleteCosel USA, Inc.
DC DC CONVERTER 1.5V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CQS48015-50
ObsoleteCosel USA, Inc.
DC DC CONVERTER 1.5V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CQS48015-50 |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 50 A |
| Efficiency | 87 % |
| Features | OVP, OCP, OTP, Remote On/Off |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 8-DIP Module |
| Size / Dimension [x] | 2.28 in |
| Size / Dimension [x] | 57.9 mm |
| Size / Dimension [y] | 1.45 in |
| Size / Dimension [y] | 36.8 mm |
| Size / Dimension [z] | 8.5 mm |
| Size / Dimension [z] | 0.33 in |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 76 V |
| Voltage - Input (Min) [Min] | 36 V |
| Voltage - Isolation | 1.5 kV |
| Voltage - Output 1 | 1.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 134.80 | |
| 5 | $ 133.73 | |||
Description
General part information
CQS48015 Series
Isolated Module DC DC Converter 1 Output 1.5V 50A 36V - 76V Input
