2964063
ActivePhoenix Contact

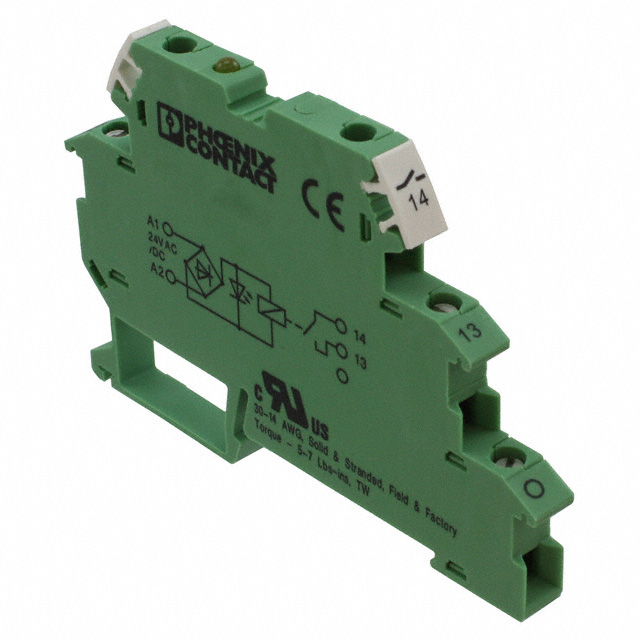

POWER RELAY, AC/DC, 3A, 250V, SPST-NO ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 2964063 | 29640 Series |
|---|---|---|
| Approval Agency | - | UL, EAC, cULus |
| Coil Current | 6.5 mA | 6.5 - 38 mA |
| Coil Resistance | - | 315.79 Ohms |
| Coil Type | Non Latching | Non Latching |
| Coil Voltage | 24 VAC | 12 - 24 VDC |
| Contact Form | SPST-NO (1 Form A) | SPST-NO (1 Form A) |
| Contact Material | Silver Nickel (AgNi) | Silver Nickel (AgNi) |
| Contact Rating (Current) | 3 A | 3 - 6 A |
| Features | - | Lighted Indicator, Diode |
| Load - Max Switching | - | 140 - 1500 W |
| Mounting Type | DIN Rail | DIN Rail |
| Operate Time | 5 ms | 5 - 7 ms |
| Operating Temperature [Max] | 50 °C | 40 - 50 °C |
| Operating Temperature [Min] | -20 C | -20 C |
| Relay Type | General Purpose | General Purpose |
| Release Time | 15 ms | 11 - 15 ms |
| Switching Voltage | 250 VAC, 250 VDC | 250 VAC |
| Termination Style | Screw Terminal | Screw Terminal |
29640 Series
RELAY GEN PURPOSE SPST 6A 12V
| Part | Contact Rating (Current) | Coil Type | Mounting Type | Approval Agency | Contact Form | Release Time | Coil Voltage | Switching Voltage | Coil Resistance | Coil Current | Load - Max Switching | Termination Style | Operating Temperature [Min] | Operating Temperature [Max] | Operate Time | Contact Material | Features | Relay Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 2964034 | 6 A | Non Latching | DIN Rail | cULus, EAC, UL | SPST-NO (1 Form A) | 11 ms | 12 VDC | 250 VAC, 250 VDC | 315.79 Ohms | 38 mA | 140 W, 1500 VA | Screw Terminal | -20 C | 40 °C | 7 ms | Silver Nickel (AgNi) | Diode, Lighted Indicator | General Purpose |
Phoenix Contact 2964063 | 3 A | Non Latching | DIN Rail | SPST-NO (1 Form A) | 15 ms | 24 VAC | 250 VAC, 250 VDC | 6.5 mA | Screw Terminal | -20 C | 50 °C | 5 ms | Silver Nickel (AgNi) | General Purpose | ||||
Phoenix Contact 2964050 | 3 A | Non Latching | DIN Rail | SPST-NO (1 Form A) | 15 ms | 24 VAC | 250 VAC, 250 VDC | 6.5 mA | Screw Terminal | -20 C | 50 °C | 5 ms | Silver Nickel (AgNi) | General Purpose |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
29640 Series
General Purpose Relay SPST-NO (1 Form A) 24VAC/DC Coil DIN Rail
