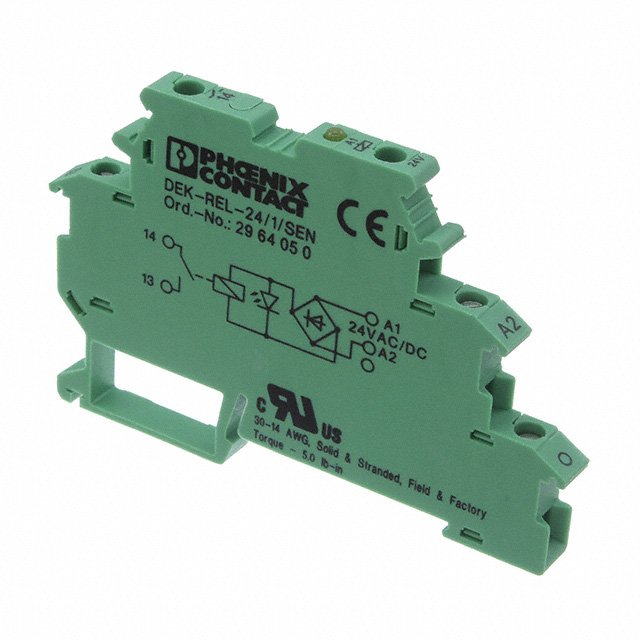

2964050

Active

Phoenix Contact

RELAY GEN PURPOSE SPST 3A 24V

Search across all available documentation for this part.

Active

Phoenix Contact

RELAY GEN PURPOSE SPST 3A 24V

Technical Specifications

Parameters and characteristics commom to parts in this series

RELAY GEN PURPOSE SPST 6A 12V

Part	Contact Rating (Current)	Coil Type	Mounting Type	Approval Agency	Contact Form	Release Time	Coil Voltage	Switching Voltage	Coil Resistance	Coil Current	Load - Max Switching	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Operate Time	Contact Material	Features	Relay Type
Phoenix Contact 2964034	6 A	Non Latching	DIN Rail	cULus, EAC, UL	SPST-NO (1 Form A)	11 ms	12 VDC	250 VAC, 250 VDC	315.79 Ohms	38 mA	140 W, 1500 VA	Screw Terminal	-20 C	40 °C	7 ms	Silver Nickel (AgNi)	Diode, Lighted Indicator	General Purpose
Phoenix Contact 2964063	3 A	Non Latching	DIN Rail		SPST-NO (1 Form A)	15 ms	24 VAC	250 VAC, 250 VDC		6.5 mA		Screw Terminal	-20 C	50 °C	5 ms	Silver Nickel (AgNi)		General Purpose
Phoenix Contact 2964050	3 A	Non Latching	DIN Rail		SPST-NO (1 Form A)	15 ms	24 VAC	250 VAC, 250 VDC		6.5 mA		Screw Terminal	-20 C	50 °C	5 ms	Silver Nickel (AgNi)		General Purpose

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

General Purpose Relay SPST-NO (1 Form A) 24VAC/DC Coil DIN Rail
