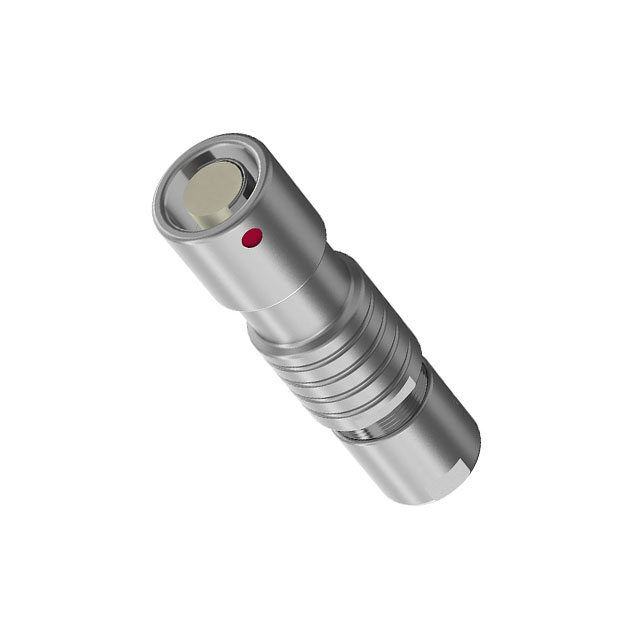

K10F1C-P07LCC0-4000
ActiveODU
CONN RCPT FMALE 7P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
K10F1C-P07LCC0-4000
ActiveODU
CONN RCPT FMALE 7P GOLD SLDR CUP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | K10F1C-P07LCC0-4000 |
|---|---|
| Applications | Military, Medical, Industrial, Testing Equipment & Measurement |
| Backshell Material, Plating | Brass, Chrome over Nickel |
| Cable Opening [Max] [diameter] | 0.157 in |
| Cable Opening [Max] [diameter] | 4 mm |
| Cable Opening [Min] [diameter] | 0.138 in |
| Cable Opening [Min] [diameter] | 3.5 mm |
| Color | Silver |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold |
| Contact Material | Brass |
| Current Rating (Amps) | 4 A |
| Fastening Type | Push-Pull |
| Features | Backshell |
| Ingress Protection | IP50 |
| Insert Material | Polyetheretherketone (PEEK) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 7 |
| Operating Temperature [Max] | 120 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | 1 |
| Primary Material | Metal |
| Shell Finish | Chrome over Nickel |
| Shell Material | Brass |
| Shell Size - Insert | 0 |
K10F1C-P Series
| Part | Contact Finish - Mating | Shell Material | Contact Material | Mounting Type | Voltage Rating | Cable Opening [Max] [diameter] | Cable Opening [Min] [diameter] | Cable Opening [Max] [diameter] | Cable Opening [Min] [diameter] | Color | Insert Material | Orientation | Material Flammability Rating | Shielding | Primary Material | Applications | Features | Connector Type | Shell Finish | Ingress Protection | Backshell Material, Plating | Number of Positions | Current Rating (Amps) | Fastening Type | Operating Temperature [Min] | Operating Temperature [Max] | Shell Size - Insert | Cable Opening [Max] [custom] | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [Min] [custom] | Cable Opening [Max] [diameter] | Cable Opening [custom] | Cable Opening [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Gold | Brass | Brass | Free Hanging (In-Line) | 500 V | 0.118 in | 0.098 in | 3 mm | 2.5 mm | Silver | Polyetheretherketone (PEEK) | 1 | UL94 V-0 | Unshielded | Metal | Industrial Medical Military Testing Equipment & Measurement | Backshell | Receptacle Female Sockets | Chrome over Nickel | IP50 | Brass Chrome over Nickel | 2 | 7.5 A | Push-Pull | -40 °C | 120 °C | 0 | ||||||||
Gold | Brass | Brass | Free Hanging (In-Line) | 0.197 in | 0.177 in | 5 mm | 4.5 mm | Silver | Polyetheretherketone (PEEK) | 1 | UL94 V-0 | Metal | Industrial Medical Military Testing Equipment & Measurement | Backshell | Receptacle Female Sockets | Chrome over Nickel | IP50 | Brass Chrome over Nickel | 7.5 A | Push-Pull | -40 °C | 120 °C | 0 | |||||||||||
Gold | Brass | Brass | Free Hanging (In-Line) | 500 V | Silver | Polyetheretherketone (PEEK) | 1 | UL94 V-0 | Unshielded | Metal | Industrial Medical Military Testing Equipment & Measurement | Backshell | Receptacle Female Sockets | Chrome over Nickel | IP50 | Brass Chrome over Nickel | 2 | 7.5 A | Push-Pull | -40 °C | 120 °C | 0 | 4.5 mm | 0.157 in | 0.177 in | 4 mm | ||||||||
Gold | Brass | Brass | Free Hanging (In-Line) | Silver | Polyetheretherketone (PEEK) | 1 | UL94 V-0 | Metal | Industrial Medical Military Testing Equipment & Measurement | Backshell | Receptacle Female Sockets | Chrome over Nickel | IP50 | Brass Chrome over Nickel | 7 | 4 A | Push-Pull | -40 °C | 120 °C | 0 | 4.5 mm | 0.157 in | 0.177 in | 4 mm | ||||||||||
Gold | Brass | Brass | Free Hanging (In-Line) | 500 V | 0.157 in | 0.138 in | 3.5 mm | Silver | Polyetheretherketone (PEEK) | 1 | UL94 V-0 | Unshielded | Metal | Industrial Medical Military Testing Equipment & Measurement | Backshell | Receptacle Female Sockets | Chrome over Nickel | IP50 | Brass Chrome over Nickel | 2 | 7.5 A | Push-Pull | -40 °C | 120 °C | 0 | 4 mm | ||||||||
Gold | Brass | Brass | Free Hanging (In-Line) | 300 VDC | 0.197 in | 0.177 in | 5 mm | 4.5 mm | Silver | Polyetheretherketone (PEEK) | 1 | UL94 V-0 | Unshielded | Metal | Industrial Medical Military Testing Equipment & Measurement | Backshell | Receptacle Female Sockets | Chrome over Nickel | IP50 | Brass Chrome over Nickel | 4 | 7.5 A | Push-Pull | -40 °C | 120 °C | 0 | ||||||||
Gold | Brass | Brass | Free Hanging (In-Line) | 300 VDC | 0.138 in | 0.118 in | 3 mm | Silver | Polyetheretherketone (PEEK) | 1 | UL94 V-0 | Unshielded | Metal | Industrial Medical Military Testing Equipment & Measurement | Backshell | Receptacle Female Sockets | Chrome over Nickel | IP50 | Brass Chrome over Nickel | 4 | 7.5 A | Push-Pull | -40 °C | 120 °C | 0 | 3.5 mm | ||||||||
Gold | Brass | Brass | Free Hanging (In-Line) | 300 VDC | Silver | Polyetheretherketone (PEEK) | 1 | UL94 V-0 | Unshielded | Metal | Industrial Medical Military Testing Equipment & Measurement | Backshell | Receptacle Female Sockets | Chrome over Nickel | IP50 | Brass Chrome over Nickel | 7 | 4 A | Push-Pull | -40 °C | 120 °C | 0 | 0.039 in 0.059 in | 1 mm 1.5 mm | ||||||||||
Gold | Brass | Brass | Free Hanging (In-Line) | 0.157 in | 0.138 in | 3.5 mm | Silver | Polyetheretherketone (PEEK) | 1 | UL94 V-0 | Metal | Industrial Medical Military Testing Equipment & Measurement | Backshell | Receptacle Female Sockets | Chrome over Nickel | IP50 | Brass Chrome over Nickel | 7 | 4 A | Push-Pull | -40 °C | 120 °C | 0 | 4 mm | ||||||||||
Gold | Brass | Brass | Free Hanging (In-Line) | 400 V | Silver | Polyetheretherketone (PEEK) | 1 | UL94 V-0 | Unshielded | Metal | Industrial Medical Military Testing Equipment & Measurement | Backshell | Receptacle Female Sockets | Chrome over Nickel | IP50 | Brass Chrome over Nickel | 7.5 A | Push-Pull | -40 °C | 120 °C | 0 | 0.039 in 0.059 in | 1 mm 1.5 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 43.96 | |
| 10 | $ 40.34 | |||
| 25 | $ 38.78 | |||
| 50 | $ 37.49 | |||
| 100 | $ 35.42 | |||
| 250 | $ 34.39 | |||
Description
General part information
K10F1C-P Series
7 Position Circular Connector Receptacle, Female Sockets Solder Cup
