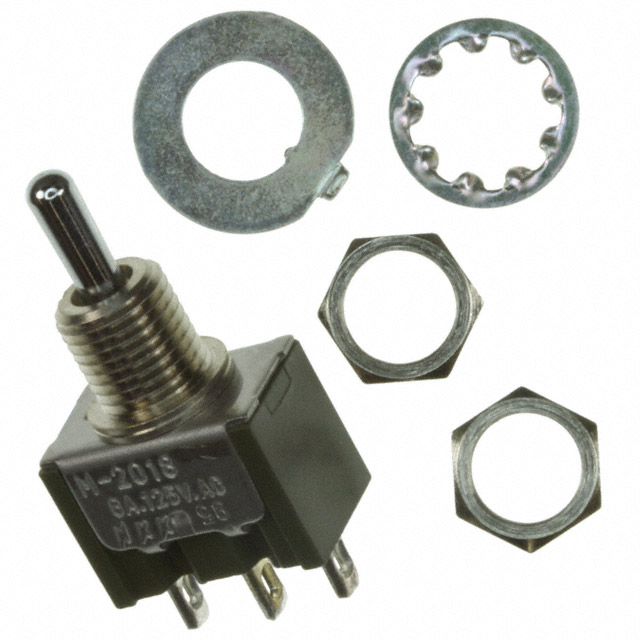

M2018S2A1W01

Obsolete

NKK Switches

SWITCH TOGGLE SPDT 6A 125V

Search across all available documentation for this part.

Obsolete

NKK Switches

SWITCH TOGGLE SPDT 6A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	M2018S2A1W01

Actuator Length [custom]	6.86 mm
Actuator Material	Brass, Chrome Plated
Actuator Type	Standard Round
Bushing Thread	1/4-40
Circuit	SPDT
Current Rating (Amps)	3 A, 6 A
Electrical Life	25000 Steps
Features	Epoxy Sealed Terminals
Illumination	Non-Illuminated
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Panel Cutout Dimensions [diameter]	6.5 mm
Switch Function	Mom-Off-Mom
Termination Style	Solder Lug
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

Part	Circuit	Actuator Length [custom]	Features	Illumination	Electrical Life	Actuator Material	Bushing Thread	Voltage Rating - DC	Operating Temperature [Min]	Operating Temperature [Max]	Switch Function	Panel Cutout Dimensions [diameter]	Actuator Type	Termination Style	Current Rating (Amps)	Voltage Rating - AC	Mounting Type
NKK Switches M2018S2A1W01	SPDT	6.86 mm	Epoxy Sealed Terminals	Non-Illuminated	25000 Steps	Brass Chrome Plated	1/4-40	30 V	-30 ░C	85 °C	Mom-Off-Mom	6.5 mm	Standard Round	Solder Lug	3 A 6 A	125 V
NKK Switches M2018S2A2G30	SPDT	6.86 mm	Epoxy Sealed Terminals	Non-Illuminated	50000 Cycles	Brass Chrome Plated	Unthreaded	28 V	-30 ░C	85 °C	Mom-Off-Mom	6.5 mm	Standard Round	PC Pin	0.4 VA	28 V	Through Hole Right Angle

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Toggle Switch SPDT Panel Mount
