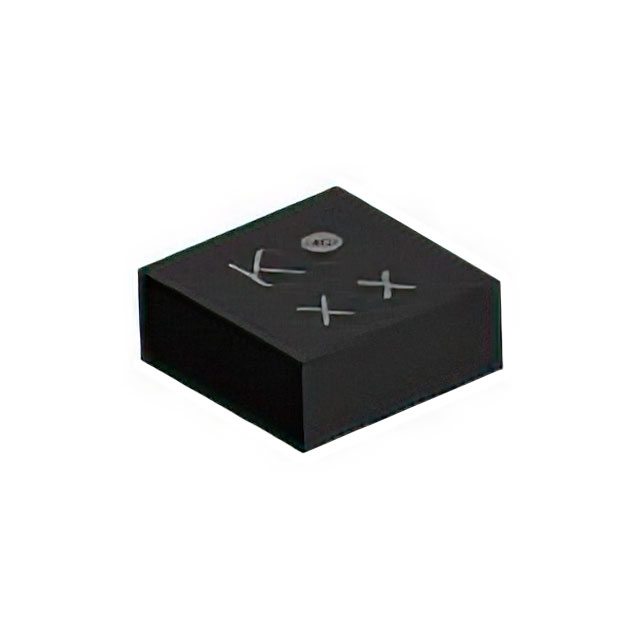

MMC3630KJ

Active

Memsic Inc.

MAGNETIC SENSOR 3-AXIS 1.2X1.2MM

Search across all available documentation for this part.

Active

Memsic Inc.

MAGNETIC SENSOR 3-AXIS 1.2X1.2MM

Technical Specifications

Parameters and characteristics for this part

Specification	MMC3630KJ

Axis [x]	X
Axis [y]	Y
Axis [z]	Z
Bandwidth	600 Hz
Current - Supply (Max) [Max]	300 µA
Features	Internal Magnet, Temperature Compensated
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Type	I2C
Package / Case	FCBGA, 8-WFBGA
Resolution	16 b
Sensing Range	3 mT
Supplier Device Package	8-BGA (1.2x1.2)
Technology	Magnetoresistive
Voltage - Supply [Max]	3.6 V
Voltage - Supply [Min]	1.62 V

MAGNETIC SENSOR 3-AXIS 1.2X1.2MM

Part	Package / Case	Output Type	Mounting Type	Axis [z]	Axis [y]	Axis [x]	Resolution	Voltage - Supply [Max]	Voltage - Supply [Min]	Technology	Features	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Bandwidth	Current - Supply (Max) [Max]	Sensing Range
Memsic Inc. MMC3630KJ	8-WFBGA, FCBGA	I2C	Surface Mount	Z	Y	X	16 b	3.6 V	1.62 V	Magnetoresistive	Internal Magnet, Temperature Compensated	85 °C	-40 °C	8-BGA (1.2x1.2)	600 Hz	300 µA	3 mT

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Magnetoresistive Sensor X, Y, Z Axis 8-BGA (1.2x1.2)
