M80-4650605

Active

Harwin Inc.

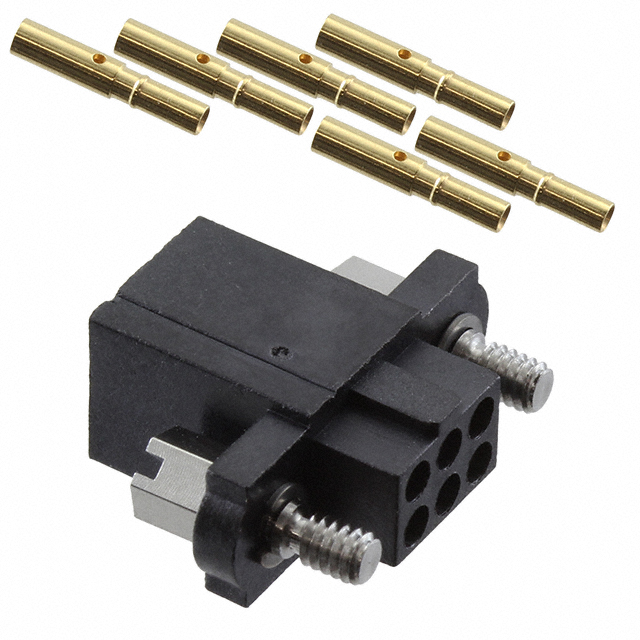

HEADER CONNECTOR,CABLE MOUNT,PLUG,6 CONTACTS,SKT,0.079 PITCH,CRIMP TERMINAL,M2X0.4 ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsM80-0110001 Datasheet +3

M80-4650605

Active

Harwin Inc.

HEADER CONNECTOR,CABLE MOUNT,PLUG,6 CONTACTS,SKT,0.079 PITCH,CRIMP TERMINAL,M2X0.4 ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsM80-0110001 Datasheet +3

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M80-4650605

Cable Termination	Crimp
Color	Black
Connector Type	Receptacle
Contact Finish	Gold
Contact Finish Thickness	0.3 Ám
Contact Finish Thickness	11.8 Áin
Contact Type	Female Socket
Features	Polarizing Key, Jackscrews, Potting Wall
Mounting Type	Free Hanging (In-Line)
Number of Positions	6
Number of Rows	2
Pitch [x]	0.079 in
Pitch [x]	2 mm
Row Spacing	2 mm
Row Spacing	0.079 in
Wire Gauge	22 AWG
Wire Type	Discrete

M80-465 Series

Part	Mounting Type	Wire Gauge	Contact Finish	Color	Number of Positions	Row Spacing	Row Spacing	Features	Number of Rows	Pitch [x]	Pitch [x]	Cable Termination	Wire Type	Contact Type	Connector Type	Contact Finish Thickness	Contact Finish Thickness
Harwin Inc. M80-4650605	Free Hanging (In-Line)	22 AWG	Gold	Black	6	2 mm	0.079 in	Jackscrews Polarizing Key Potting Wall	2	0.079 in	2 mm	Crimp	Discrete	Female Socket	Receptacle	0.3 Ám	11.8 Áin
Harwin Inc. M80-4651042	Free Hanging (In-Line)	22 AWG	Gold	Black	10	2 mm	0.079 in	Jackscrews Polarizing Key Potting Wall	2	0.079 in	2 mm	Crimp	Discrete	Female Socket	Receptacle	0.3 Ám	11.8 Áin
Harwin Inc. M80-4652005	Free Hanging (In-Line)	22 AWG	Gold	Black	20	2 mm	0.079 in	Jackscrews Polarizing Key Potting Wall	2	0.079 in	2 mm	Crimp	Discrete	Female Socket	Receptacle	0.3 Ám	11.8 Áin
Harwin Inc. M80-4655005	Free Hanging (In-Line)	22 AWG	Gold	Black	50	2 mm	0.079 in	Jackscrews Polarizing Key Potting Wall	2	0.079 in	2 mm	Crimp	Discrete	Female Socket	Receptacle	0.3 Ám	11.8 Áin
Harwin Inc. M80-4651805	Free Hanging (In-Line)	22 AWG	Gold	Black	18	2 mm	0.079 in	Jackscrews Polarizing Key Potting Wall	2	0.079 in	2 mm	Crimp	Discrete	Female Socket	Receptacle	0.3 Ám	11.8 Áin
Harwin Inc. M80-4654205	Free Hanging (In-Line)	22 AWG	Gold	Black	42	2 mm	0.079 in	Jackscrews Polarizing Key Potting Wall	2	0.079 in	2 mm	Crimp	Discrete	Female Socket	Receptacle	0.3 Ám	11.8 Áin
Harwin Inc. M80-4653405	Free Hanging (In-Line)	22 AWG	Gold	Black	34	2 mm	0.079 in	Jackscrews Polarizing Key Potting Wall	2	0.079 in	2 mm	Crimp	Discrete	Female Socket	Receptacle	0.3 Ám	11.8 Áin
Harwin Inc. M80-4652605	Free Hanging (In-Line)	22 AWG	Gold	Black	26	2 mm	0.079 in	Jackscrews Polarizing Key Potting Wall	2	0.079 in	2 mm	Crimp	Discrete	Female Socket	Receptacle	0.3 Ám	11.8 Áin
Harwin Inc. M80-4651405	Free Hanging (In-Line)	22 AWG	Gold	Black	14	2 mm	0.079 in	Jackscrews Polarizing Key Potting Wall	2	0.079 in	2 mm	Crimp	Discrete	Female Socket	Receptacle	0.3 Ám	11.8 Áin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 11.61
		10	$ 10.45
		25	$ 9.84
		50	$ 9.59
		100	$ 9.34
		250	$ 8.33
		500	$ 7.82
		1000	$ 6.91
Newark	Each	10	$ 11.50
		50	$ 9.90
		100	$ 9.65
		250	$ 8.65
		500	$ 8.15
		1000	$ 7.15
		2500	$ 6.80

Description

General part information

M80-465 Series

6 Position Rectangular Receptacle Connector Crimp Gold 22 AWG

Documents

Technical documentation and resources

M80-0110001

Datasheet

M80-001

M80, M83 Series Spec Sheet

Datasheet

3D Product Image EN

Datasheet
