M3AWK-1660K

Active

3M (TC)

IDC CABLE - MSC16K/MC16F/MPL16K

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsRibbon Cable Assembly Length Guide 4600 Series Drawing +1

M3AWK-1660K

Active

3M (TC)

IDC CABLE - MSC16K/MC16F/MPL16K

Deep-Dive with AI

DocumentsRibbon Cable Assembly Length Guide 4600 Series Drawing +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M3AWK-1660K

Cable Termination	IDC
Color	Multiple, Twisted Pair (Flat)
Connector Type	Socket to Plug
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Features	Flange, Polarizing Key
Length	1.52 m
Length	5 '
Number of Positions	16
Number of Rows	2
Pitch - Cable	0.05 "
Pitch - Cable	1.27 mm
Pitch - Connector	0.1 in
Pitch - Connector	2.54 mm
Shielding	Unshielded

M3AWK Series

Part	Number of Positions	Pitch - Cable	Pitch - Cable	Length	Length	Length	Cable Termination	Pitch - Connector	Pitch - Connector	Connector Type	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Shielding	Features	Contact Finish	Length [x]	Length [x]	Length	Color	Number of Positions
3M (TC) M3AWK-3406J	34	0.05 "	1.27 mm	152.4 mm	6 "	0.5 '	IDC	0.1 in	2.54 mm	Socket to Plug	2	0.76 Ám	30 Áin	Unshielded	Flange Polarizing Key	Gold
3M (TC) M3AWK-6036J	60	0.05 "	1.27 mm				IDC	0.1 in	2.54 mm	Socket to Plug	2	0.76 Ám	30 Áin	Unshielded	Flange Polarizing Key	Gold	3 ft	914.4 mm
3M (TC) M3AWK-2660K	26	0.05 "	1.27 mm	1.52 m			IDC	0.1 in	2.54 mm	Socket to Plug	2	0.76 Ám	30 Áin	Unshielded	Flange Polarizing Key	Gold			5 '	Multiple Twisted Pair (Flat)
3M (TC) M3AWK-2060K	20	0.05 "	1.27 mm	1.52 m			IDC	0.1 in	2.54 mm	Socket to Plug	2	0.76 Ám	30 Áin	Unshielded	Flange Polarizing Key	Gold			5 '	Multiple Twisted Pair (Flat)
3M (TC) M3AWK-2036R	20	0.05 "	1.27 mm				IDC	0.1 in	2.54 mm	Socket to Plug	2	0.76 Ám	30 Áin	Unshielded	Flange Polarizing Key	Gold	3 ft	914.4 mm		Multiple Ribbon
3M (TC) M3AWK-1040K	10	0.05 "	1.27 mm				IDC	0.1 in	2.54 mm	Socket to Plug	2	0.76 Ám	30 Áin	Unshielded	Flange Polarizing Key	Gold	3.34 ft	1.02 m		Multiple Twisted Pair (Flat)
3M (TC) M3AWK-1036R	10	0.05 "	1.27 mm				IDC	0.1 in	2.54 mm	Socket to Plug	2	0.76 Ám	30 Áin	Unshielded	Flange Polarizing Key	Gold	3 ft	914.4 mm		Multiple Ribbon
3M (TC) M3AWK-1660K		0.05 "	1.27 mm	1.52 m			IDC	0.1 in	2.54 mm	Socket to Plug	2	0.76 Ám	30 Áin	Unshielded	Flange Polarizing Key	Gold			5 '	Multiple Twisted Pair (Flat)	16
3M (TC) M3AWK-2018J	20	0.05 "	1.27 mm				IDC	0.1 in	2.54 mm	Socket to Plug	2	0.76 Ám	30 Áin	Unshielded	Flange Polarizing Key	Gold	1.5 ft	457.2 mm
3M (TC) M3AWK-1036J	10	0.05 "	1.27 mm				IDC	0.1 in	2.54 mm	Socket to Plug	2	0.76 Ám	30 Áin	Unshielded	Flange Polarizing Key	Gold	3 ft	914.4 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 25.23
		10	$ 19.46
		25	$ 17.62
		50	$ 16.38
		100	$ 15.25
		250	$ 13.92
		500	$ 13.03

Description

General part information

M3AWK Series

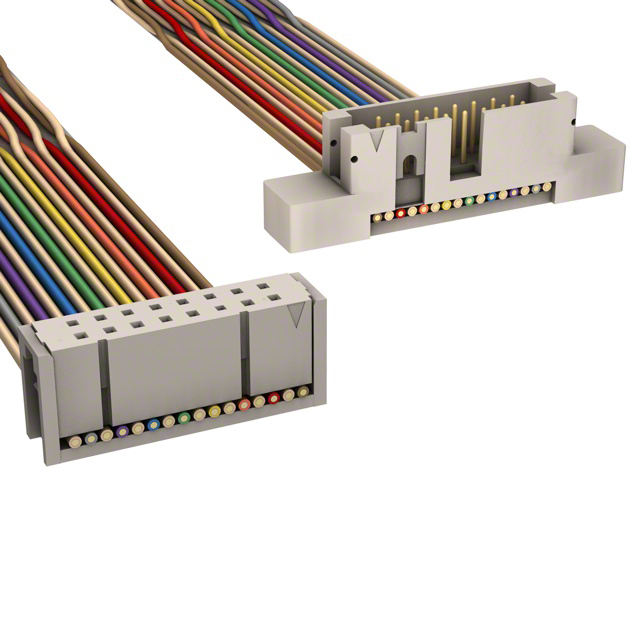

16 Position Cable Assembly Rectangular Socket to Plug 5.00' (1.52m)
