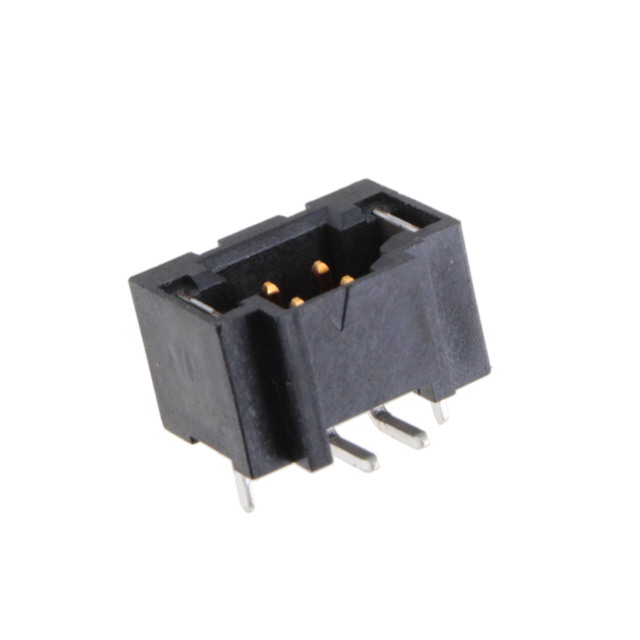

Specification	T2M-102-01-L-D-SM-WT

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 µin
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating	2.6 A, 3.8 A
Fastening Type	Push-Pull
Features	Solder Retention
Insulation Color	Black
Insulation Height	0.228 in
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Type	Surface Mount
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Pitch - Mating	0.079 in
Row Spacing - Mating	0.079 in
Shrouding	Shrouded - 4 Wall
Style	Board, Board or Cable
Termination	Solder

T2M-102 Series

Part	Current Rating	Termination	Features	Row Spacing - Mating	Shrouding	Contact Finish - Post	Insulation Color	Insulation Material	Contact Material	Contact Finish - Mating	Number of Rows	Connector Type	Contact Shape	Contact Finish Thickness - Mating	Mounting Type	Operating Temperature (Max)	Operating Temperature (Min)	Contact Type	Pitch - Mating	Style	Number of Positions Loaded	Number of Positions	Contact Length - Post	Insulation Height	Fastening Type
Samtec Inc. T2M-102-01-S-D-RA-WT	2.6 A 3.8 A	Solder	Solder Retention	0.079 in	Shrouded - 4 Wall	Tin	Black	Liquid Crystal Polymer (LCP)	Phosphor Bronze	Gold	2	Header	Square	30 µin	Right Angle Through Hole	125 °C	-55 °C	Male Pin	0.079 in	Board Board or Cable	All	4	0.09 in	0.293 in	Push-Pull
Samtec Inc. T2M-102-01-L-D-SM-WT	2.6 A 3.8 A	Solder	Solder Retention	0.079 in	Shrouded - 4 Wall	Tin	Black	Liquid Crystal Polymer (LCP)	Phosphor Bronze	Gold	2	Header	Square	10 µin	Surface Mount	125 °C	-55 °C	Male Pin	0.079 in	Board Board or Cable	All	4		0.228 in	Push-Pull
