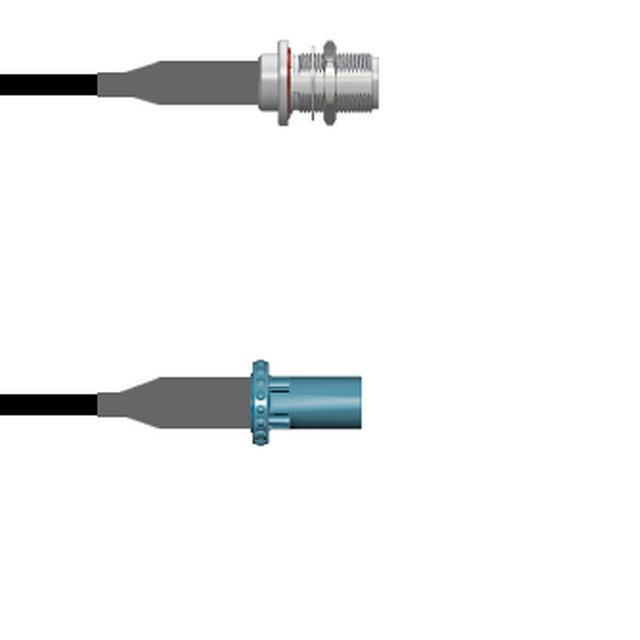

Q-1X05B00080.5M

Active

Amphenol Custom Cable

CBL ASSY NTYPE-FAKRA J-PL 19.69"

Deep-Dive with AI

Search across all available documentation for this part.

Q-1X05B00080.5M

Active

Amphenol Custom Cable

CBL ASSY NTYPE-FAKRA J-PL 19.69"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-1X05B00080.5M

1st Connector	N-Type Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	Fakra Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-58
Color	Black
Features	Shielded
Frequency - Max [Max]	3 GHz
Length	50 cm
Length	19.69 "
Overall Impedance	50 Ohms
Style	N-Type to Fakra

Q-1X05B0 Series

Part	2nd Contact Gender	Overall Impedance	2nd Connector	1st Connector Mounting Type	Color	Length [x]	Length [x]	Features	Cable Type	1st Connector	1st Contact Gender	Style	1st Connector Mounting Feature	Frequency - Max [Max]	2nd Connector Mounting Type	Length	Length	Length
Amphenol Custom Cable Q-1X05B0008018i	Male	50 Ohms	Fakra Plug	Panel Mount	Black	457.2 mm	457.2 mm	Shielded	RG-58	N-Type Jack	Female	N-Type to Fakra	Bulkhead - Front Side Nut	3 GHz	Free Hanging (In-Line)
Amphenol Custom Cable Q-1X05B0008108i	Male	50 Ohms	Fakra Plug	Panel Mount	Black			Shielded	RG-58	N-Type Jack	Female	N-Type to Fakra	Bulkhead - Front Side Nut	3 GHz	Free Hanging (In-Line)	2.7 m	9 ft	108 in
Amphenol Custom Cable Q-1X05B0008012i	Male	50 Ohms	Fakra Plug	Panel Mount	Black			Shielded	RG-58	N-Type Jack	Female	N-Type to Fakra	Bulkhead - Front Side Nut	3 GHz	Free Hanging (In-Line)	304.8 mm		12 "
Amphenol Custom Cable Q-1X05B0008002M	Male	50 Ohms	Fakra Plug	Panel Mount	Black			Shielded	RG-58	N-Type Jack	Female	N-Type to Fakra	Bulkhead - Front Side Nut	3 GHz	Free Hanging (In-Line)	2 m	6.6 ft	78.7 in
Amphenol Custom Cable Q-1X05B00080.5M	Male	50 Ohms	Fakra Plug	Panel Mount	Black			Shielded	RG-58	N-Type Jack	Female	N-Type to Fakra	Bulkhead - Front Side Nut	3 GHz	Free Hanging (In-Line)	50 cm		19.69 "
Amphenol Custom Cable Q-1X05B00081.5M	Male	50 Ohms	Fakra Plug	Panel Mount	Black			Shielded	RG-58	N-Type Jack	Female	N-Type to Fakra	Bulkhead - Front Side Nut	3 GHz	Free Hanging (In-Line)	1.5 m	4.9 ft	59.1 in
Amphenol Custom Cable Q-1X05B0008001M	Male	50 Ohms	Fakra Plug	Panel Mount	Black			Shielded	RG-58	N-Type Jack	Female	N-Type to Fakra	Bulkhead - Front Side Nut	3 GHz	Free Hanging (In-Line)	1 m	3.3 ft	39.4 in
Amphenol Custom Cable Q-1X05B0008006i	Male	50 Ohms	Fakra Plug	Panel Mount	Black			Shielded	RG-58	N-Type Jack	Female	N-Type to Fakra	Bulkhead - Front Side Nut	3 GHz	Free Hanging (In-Line)	152.4 mm		6 in
Amphenol Custom Cable Q-1X05B0008060i	Male	50 Ohms	Fakra Plug	Panel Mount	Black			Shielded	RG-58	N-Type Jack	Female	N-Type to Fakra	Bulkhead - Front Side Nut	3 GHz	Free Hanging (In-Line)	1.5 m	5 ft	5 '
Amphenol Custom Cable Q-1X05B0008.75M	Male	50 Ohms	Fakra Plug	Panel Mount	Black			Shielded	RG-58	N-Type Jack	Female	N-Type to Fakra	Bulkhead - Front Side Nut	3 GHz	Free Hanging (In-Line)	750 mm		29.53 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 137.42
		25	$ 134.83
		50	$ 132.25
		100	$ 129.66
		250	$ 127.07

Description

General part information

Q-1X05B0 Series

Cable Assembly Coaxial N-Type to Fakra RG-58 19.69" (500.00mm)

Documents

Technical documentation and resources

No documents available
