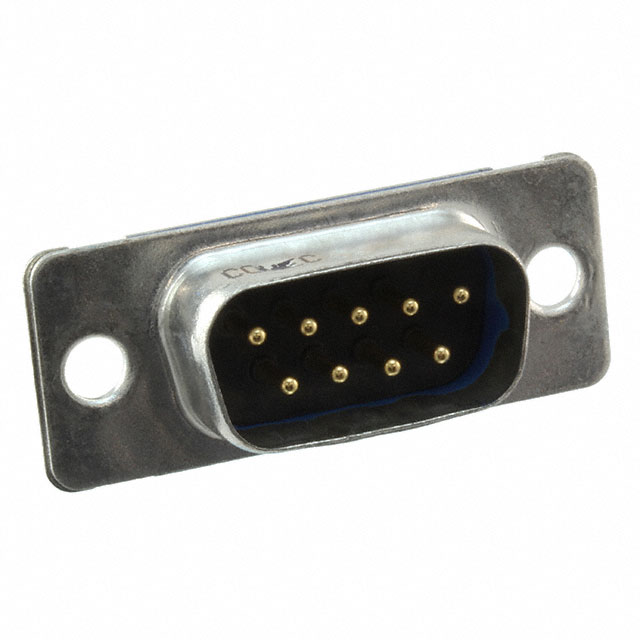

4STD09PCM99A10X

Active

Amphenol CONEC

CONN D-SUB PLUG 9POS SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

4STD09PCM99A10X

Active

Amphenol CONEC

CONN D-SUB PLUG 9POS SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	4STD09PCM99A10X

Color	Black
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Grounding Indents
Flange Feature	Housing/Shell (Unthreaded)
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	9
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-25 °C
Shell Material, Finish	Tin Plated, Copper Alloy
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Wire Gauge	20 AWG

4STD09P Series

Part	Color	Connector Type	Contact Type	Features	Number of Positions	Shell Material, Finish	Contact Finish Thickness	Contact Finish Thickness	Ingress Protection	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Dielectric Material	Contact Finish	Connector Style	Operating Temperature [Min]	Operating Temperature [Max]	Flange Feature	Number of Rows	Material Flammability Rating	Current Rating (Amps)	Mounting Type	Contact Material	Wire Gauge	Voltage Rating	Contact Finish Thickness	Termination
Amphenol CONEC 4STD09PAM99B50X	Black	Male Pins Plug	Signal	Grounding Indents	9	Copper Alloy Tin Plated	8 çin	0.203 çm	IP67 - Dust Tight Waterproof	DE E	1	Polybutylene Terephthalate (PBT) Glass Filled	Gold	D-Sub	-25 °C	105 ░C	Female Screwlock (4-40) Mating Side	2
Amphenol CONEC 4STD09PAM99B70X	Black	Male Pins Plug	Signal	Grounding Indents	9					DE E	1			D-Sub			Housing/Shell (4-40)	2
Amphenol CONEC 4STD09PCM99A10X	Black	Male Pins Plug	Signal	Grounding Indents	9	Copper Alloy Tin Plated	30 Áin	0.76 Ám	IP67 - Dust Tight Waterproof	DE E	1	Polybutylene Terephthalate (PBT) Glass Filled	Gold	D-Sub	-25 °C	105 ░C	Housing/Shell (Unthreaded)	2	UL94 V-0	5 A	Free Hanging (In-Line)	Copper Alloy	20 AWG
Amphenol CONEC 4STD09PAZ99S20X		Male Pins Plug	Signal		9					DE E	1			D-Sub				2
Amphenol CONEC 4STD09PAM99A10X	Black	Male Pins Plug	Signal	Grounding Indents	9	Copper Alloy Tin Plated			IP67 - Dust Tight Waterproof	DE E	1	Polybutylene Terephthalate (PBT) Glass Filled	Gold	D-Sub	-25 °C	105 ░C	Housing/Shell (Unthreaded)	2	UL94 V-0	7.5 A	Free Hanging (In-Line)	Copper Alloy	20 AWG	125 VDC	Flash
Amphenol CONEC 4STD09PAR99B30X		Male Pins Plug	Signal		9					DE E	1			D-Sub				2
Amphenol CONEC 4STD09PAR99E20X		Male Pins Plug	Signal		9					DE E	1			D-Sub				2
Amphenol CONEC 4STD09PCR99B30X	Black	Male Pins Plug	Signal	Grounding Indents	9	Copper Alloy Tin Plated	30 Áin	0.76 Ám	IP67 - Dust Tight Waterproof	DE E	1	Polybutylene Terephthalate (PBT) Glass Filled	Gold	D-Sub	-25 °C	105 ░C	Housing/Shell (4-40)	2			Through Hole					Solder
Amphenol CONEC 4STD09PAU99S40X		Male Pins Plug	Signal		9					DE E	1			D-Sub				2
Amphenol CONEC 4STD09PAT99R40X		Male Pins Plug	Signal		9					DE E	1			D-Sub				2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 16.48
		10	$ 14.28
		30	$ 13.54
		60	$ 13.34
		120	$ 11.77
		270	$ 10.99
		510	$ 10.75

Description

General part information

4STD09P Series

9 Position D-Sub Plug, Male Pins Connector
