Technical Specifications
Parameters and characteristics for this part
| Specification | TS472EIJT |
|---|---|
| Features | Shutdown, Microphone, Differential Inputs, Standby |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | 1-Channel (Mono) |

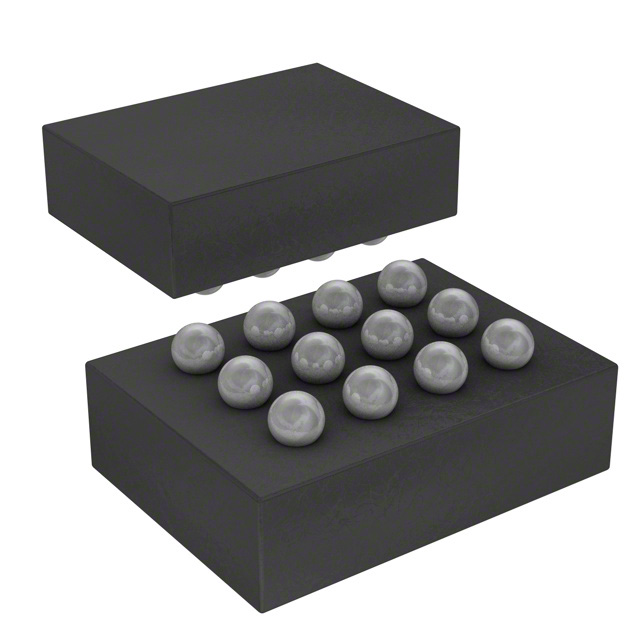

| Package / Case | 12-UFBGA, FCBGA |
| Supplier Device Package | 12-FlipChip |
| Type | Class AB |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 2.2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.79 | |
| 10 | $ 2.50 | |||
| 25 | $ 2.36 | |||
| 100 | $ 2.01 | |||
| 250 | $ 1.89 | |||
| 500 | $ 1.65 | |||
| 1000 | $ 1.37 | |||
| 2500 | $ 1.28 | |||
| Digi-Reel® | 1 | $ 2.79 | ||
| 10 | $ 2.50 | |||
| 25 | $ 2.36 | |||
| 100 | $ 2.01 | |||
| 250 | $ 1.89 | |||
| 500 | $ 1.65 | |||
| 1000 | $ 1.37 | |||
| 2500 | $ 1.28 | |||
| Tape & Reel (TR) | 5000 | $ 1.05 | ||
Description
General part information
TS472 Series
The TS472 is a differential-input microphone preamplifier optimized for high-performance PDA and notebook audio systems.
This device features an adjustable gain from 0 to 40 dB with excellent power-supply and commonmode rejection ratios. In addition, the TS472 has a very low noise microphone bias generator of 2 V.
It also includes a complete shutdown function, with active low standby mode.
