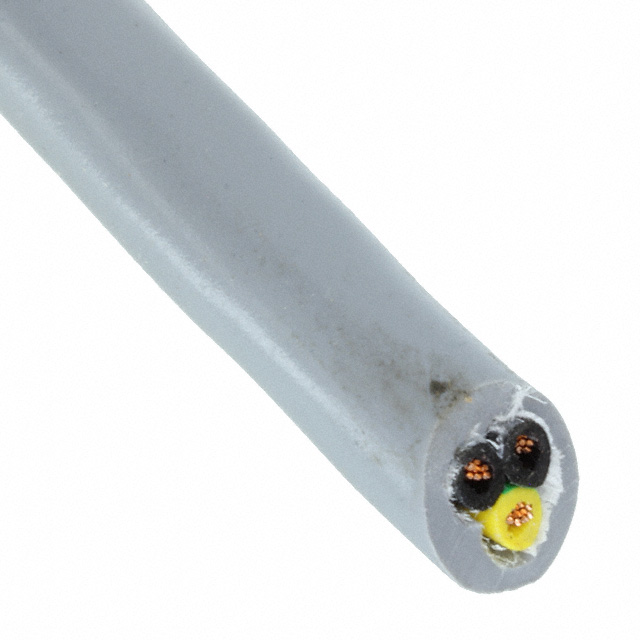

73803W 008100

Active

Belden Inc.

CABLE 3COND 18AWG GRAY 100'

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 3COND 18AWG GRAY 100'

Technical Specifications

Parameters and characteristics for this part

Specification	73803W 008100

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Bare
Conductor Strand [custom]	16
Conductor Strand [custom]	30 AWG
Features	Oil Resistant
Jacket (Insulation) Diameter [diameter]	0.272 in
Jacket (Insulation) Diameter [diameter]	6.91 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.889 mm
Jacket (Insulation) Thickness	0.035 in
Jacket Color	Gray
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	3
Ratings	UL Style 2587
Voltage	600 V
Wire Gauge	18 AWG

Part	Cable Type	Jacket Color	Number of Conductors	Features	Conductor Insulation	Wire Gauge	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Ratings	Conductor Material	Length [x]	Length [x]	Voltage	Jacket (Insulation) Material
Belden Inc. 73803W 008100	Multi-Conductor	Gray	3	Oil Resistant	Poly-Vinyl Chloride (PVC)	18 AWG	0.889 mm	0.035 in	16	30 AWG	0.272 in	6.91 mm	UL Style 2587	Copper Bare	30.5 m	100 ft	600 V	Poly-Vinyl Chloride (PVC)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Conductor Multi-Conductor Cable Gray 18 AWG 100.0' (30.5m)
