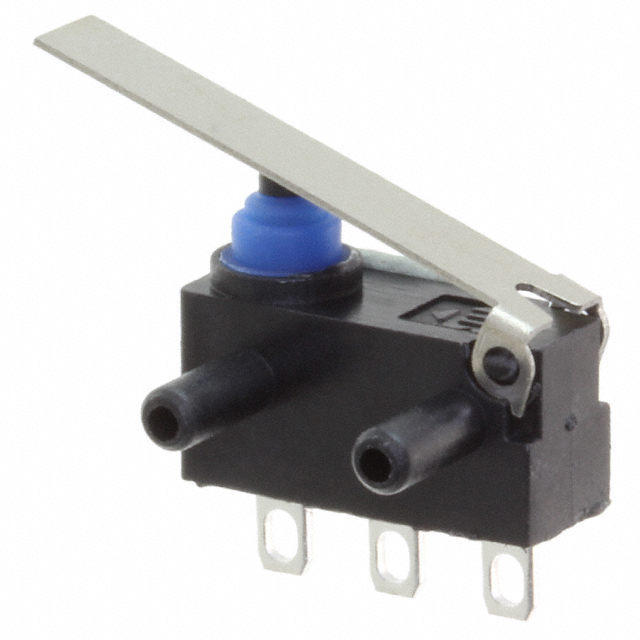

WS0850101F050SA

Active

E-Switch

SWITCH SNAP ACTION SPDT 1A 24V

Search across all available documentation for this part.

Active

E-Switch

SWITCH SNAP ACTION SPDT 1A 24V

Technical Specifications

Parameters and characteristics for this part

SWITCH SNAP ACTION SPDT 1A 24V

Part	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Voltage Rating - DC	Operating Force	Ingress Protection	Actuator Type	Mechanical Life	Operating Position	Operating Position	Electrical Life	Circuit	Current Rating (Amps)	Switch Function
E-Switch WS0850101F050SA	Chassis Mount	-25 °C	85 °C	Solder Lug	24 V	50 gf	IP67 - Dust Tight, Waterproof	Lever, Straight	1000000 Cycles	0.528 in	13.4 mm	10000 Cycles	SPDT	1 A	On-Mom

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Switch SPDT Chassis Mount
