LCM-S02004DSF

Active

Lumex Opto/Components Inc.

LCD MOD 80DIG 20X4 TRANS YLW/GRN

Search across all available documentation for this part.

Active

Lumex Opto/Components Inc.

LCD MOD 80DIG 20X4 TRANS YLW/GRN

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

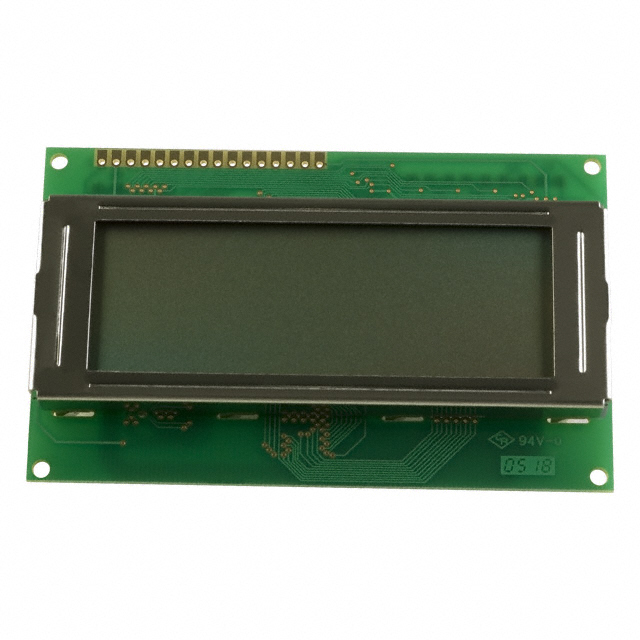

Character Display Module Transflective 5 x 8 Dots STN - Super-Twisted Nematic LED - Yellow/Green Parallel 98.00mm x 60.00mm x 12.70mm

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	LCM-S02004DSF	LCM-S02004 Series

	-	-
Background Color	Green	Green
Backlight	-	Without Backlight
Character Format [x]	5 Dots	5 Dots
Character Format [y]	8 Dots	8 Dots
Character Size	-	9.22 mm
Character Size	-	4.84 mm
Display Format [x]	20	20
Display Format [y]	4	4
Display Mode	Transflective	Reflective, Transflective
Display Type	STN - Super-Twisted Nematic	STN - Super-Twisted Nematic, TN - Twisted Nematic
Dot Size [x]	0.55 mm	0.55 - 0.92 mm
Dot Size [y]	0.55 mm	0.55 - 1.1 mm
Interface	Parallel	Parallel
Number of Characters	80	80
Operating Temperature	-	-20 C
Operating Temperature	-	70 °C
Outline L x W x H [x]	98 mm	98 - 146 mm
Outline L x W x H [y]	60 mm	60 - 62.5 mm
Outline L x W x H [z]	12.7 mm	8.8 - 12.7 mm
Viewing Area [x]	77 mm	77 - 123.5 mm
Viewing Area [y]	26.3 mm	26.3 - 43 mm
Voltage - Supply	-	4.75 V
Voltage - Supply	-	5.25 V

LCD MOD 80 DIG 20 X 4 REFLECTIVE

Part	Operating Temperature [Min]	Operating Temperature [Max]	Character Format [y]	Character Format [x]	Display Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Display Format [y]	Display Format [x]	Number of Characters	Character Size [z]	Character Size [y]	Outline L x W x H [y]	Outline L x W x H [z]	Outline L x W x H [x]	Backlight	Display Mode	Viewing Area [y]	Viewing Area [x]	Dot Size [y]	Dot Size [x]	Interface	Background Color
Lumex Opto/Components Inc. LCM-S02004DSR/D-YE	-20 C	70 °C	8 Dots	5 Dots	STN - Super-Twisted Nematic	4.75 V	5.25 V	4	20	80	9.22 mm	4.84 mm	62.5 mm	11 mm	146 mm	Without Backlight	Reflective	43 mm	123.5 mm	1.1 mm	0.92 mm
Lumex Opto/Components Inc. LCM-S02004DSR			8 Dots	5 Dots	STN - Super-Twisted Nematic			4	20	80			60 mm	8.8 mm	98 mm	Without Backlight	Reflective	26.3 mm	77 mm	0.55 mm	0.55 mm	Parallel	Green
Lumex Opto/Components Inc. LCM-S02004DSF-1
Lumex Opto/Components Inc. LCM-S02004DTR			8 Dots	5 Dots	TN - Twisted Nematic			4	20	80			60 mm	8.8 mm	98 mm	Without Backlight	Reflective	26.3 mm	77 mm	0.55 mm	0.55 mm	Parallel
Lumex Opto/Components Inc. LCM-S02004DSF			8 Dots	5 Dots	STN - Super-Twisted Nematic			4	20	80			60 mm	12.7 mm	98 mm		Transflective	26.3 mm	77 mm	0.55 mm	0.55 mm	Parallel	Green
Lumex Opto/Components Inc. LCM-S02004DTF			8 Dots	5 Dots	TN - Twisted Nematic			4	20	80			60 mm	12.7 mm	98 mm		Transflective	26.3 mm	77 mm	0.55 mm	0.55 mm	Parallel
