EMB-108-0#

Active

Pomona Electronics

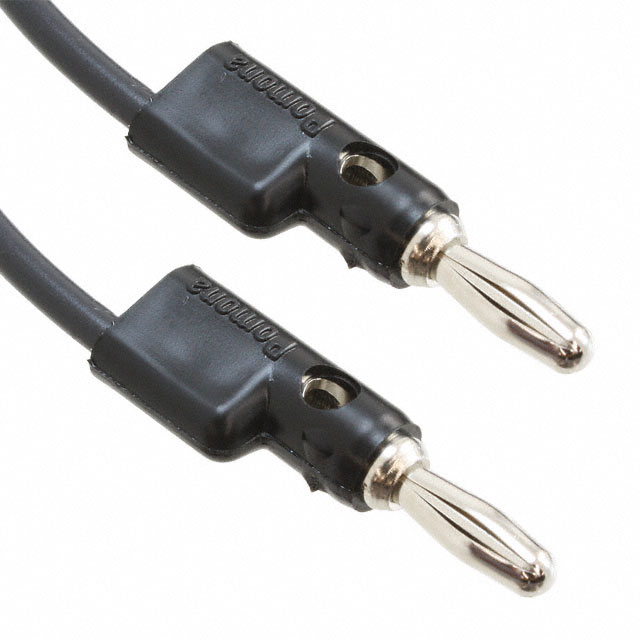

TEST LEAD BANANA TO BANANA 108"

Search across all available documentation for this part.

Active

Pomona Electronics

TEST LEAD BANANA TO BANANA 108"

Technical Specifications

Parameters and characteristics for this part

Specification	EMB-108-0#

1st Connector	Single, Stackable, Banana Plug
2nd Connector	Banana Plug, Single, Stackable
Cable Length	2743.2 mm
Cable Length	108 "
Configuration	Banana to Banana
Contents	1 Lead, Black
Current Rating (Amps)	15 A
Material - Insulation	Poly-Vinyl Chloride (PVC)
Stacking Method	Multi-Stacking, Front and Vertical
Type	Patch Cord
Voltage - Rated	5 kV
Voltage - Rated	5 kV
Wire Gauge	18 AWG

Part	Current Rating (Amps)	Material - Insulation	Stacking Method	Voltage - Rated	Voltage - Rated	Cable Length	Cable Length	1st Connector	Configuration	Type	Wire Gauge	Contents	2nd Connector
Pomona Electronics EMB-108-0#	15 A	Poly-Vinyl Chloride (PVC)	Multi-Stacking Front and Vertical	5 kV	5 kV	2743.2 mm	108 "	Banana Plug Single Stackable	Banana to Banana	Patch Cord	18 AWG	1 Lead Black	Banana Plug Single Stackable

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

108.0" (2743.20mm) Banana Plug, Single, Stackable To Banana Plug, Single, Stackable Patch Cord 5000VDC (5kV)
