Specification	1120160022

Approval Agency	CE
For Use With/Related Products	SLC500 Series
Mounting Type	Chassis Mount
Operating Temperature (Max)	50 °C
Operating Temperature (Min)	0 °C
Termination Style	D-Sub
Type	Communications Module

112016 Series

Part	Approval Agency	Operating Temperature (Min)	Operating Temperature (Max)	Type	Termination Style	Mounting Type	For Use With/Related Products	Weight	Ingress Protection	Voltage - Supply
Molex 1120160022	CE	0 °C	50 °C	Communications Module	D-Sub	Chassis Mount	SLC500 Series
Molex 1120160028	ATEX CE cUL UL	-25 °C	70 °C	Communications Module	D-Sub USB	DIN Rail	CompactLogix Micrologix Series
Molex 1120165000	CE UL	0 °C	65 °C	Communications Module	D-Sub RJ45	DIN Rail	Logix Series	1.6 lbs	IP30	24 VDC
Molex 1120160021

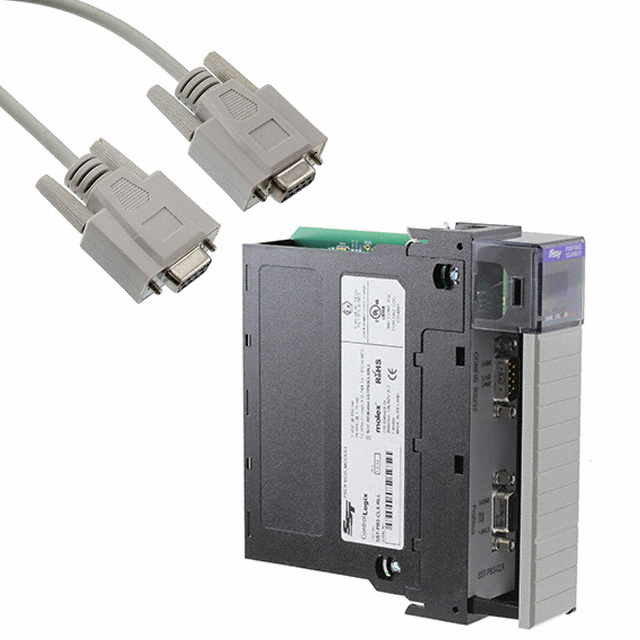

Molex 1120160018	CE cULus UL	0 °C	60 °C	Control Module	D-Sub	Chassis Mount	ControlLogix Series	1.3 lbs	IP20
Molex 1120160025
