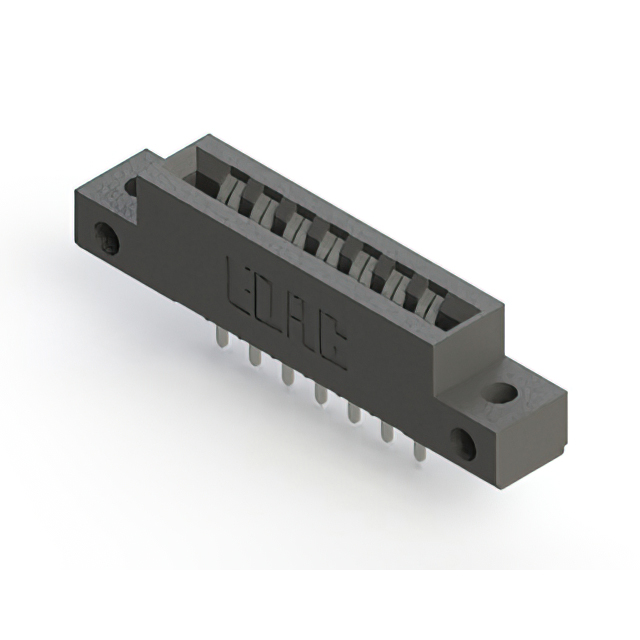

356-007-420-112

Active

EDAC Inc.

CARD EDGE CONNECTOR ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

356-007-420-112

Active

EDAC Inc.

CARD EDGE CONNECTOR ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	356-007-420-112

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Tin
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Unthreaded, Flush Mount, Side Opening
Flange Feature [diameter]	3.25 mm
Flange Feature [diameter]	0.128 "
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole, Panel Mount
Number of Positions	14
Number of Positions/Bay/Row [custom]	7
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Solder
Termination Rows	1

356-007 Series

Part	Contact Finish	Termination	Card Type	Gender	Operating Temperature [Min]	Operating Temperature [Max]	Pitch [x]	Pitch [x]	Contact Material	Color	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Material - Insulation	Number of Positions/Bay/Row [custom]	Contact Type	Termination Rows	Number of Positions	Read Out	Number of Rows	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Features
EDAC Inc. 356-007-521-101	Gold	Solder	Non Specified - Dual Edge	Female	-40 °C	105 ░C	0.156 in	3.96 mm	Copper Alloy	Black	Through Hole	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	7	Cantilever	1	14	Dual	2
EDAC Inc. 356-007-421-103	Tin	Solder	Non Specified - Dual Edge	Female	-40 °C	105 ░C	0.156 in	3.96 mm	Copper Alloy	Black	Panel Mount Through Hole			1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	7	Cantilever	1	14	Dual	2	0.116 in	Floating Bobbin Flush Mount	2.95 mm
EDAC Inc. 356-007-421-107	Tin	Solder	Non Specified - Dual Edge	Female	-40 °C	105 ░C	0.156 in	3.96 mm	Copper Alloy	Black	Panel Mount Through Hole			1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	7	Cantilever	1	14	Dual	2		Flush Mount M3 Threaded Insert Top Opening
EDAC Inc. 356-007-520-108	Gold	Solder	Non Specified - Dual Edge	Female	-40 °C	105 ░C	0.156 in	3.96 mm	Copper Alloy	Black	Panel Mount Through Hole	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	7	Cantilever	1	14	Dual	2		4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 356-007-521-168	Gold	Solder	Non Specified - Dual Edge	Female	-40 °C	105 ░C	0.156 in	3.96 mm	Copper Alloy	Black	Panel Mount Through Hole	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	7	Cantilever	1	14	Dual	2		4-40 Flush Mount Threaded Insert Top Opening		Card Guides
EDAC Inc. 356-007-521-158	Gold	Solder	Non Specified - Dual Edge	Female	-40 °C	105 ░C	0.156 in	3.96 mm	Copper Alloy	Black	Panel Mount Through Hole	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	7	Cantilever	1	14	Dual	2		4-40 Flush Mount Threaded Insert Top Opening		Card Guides
EDAC Inc. 356-007-420-112	Tin	Solder	Non Specified - Dual Edge	Female	-40 °C	105 ░C	0.156 in	3.96 mm	Copper Alloy	Black	Panel Mount Through Hole			1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	7	Cantilever	1	14	Dual	2	0.128 "	Flush Mount Side Opening Unthreaded	3.25 mm
EDAC Inc. 356-007-421-102	Tin	Solder	Non Specified - Dual Edge	Female	-40 °C	105 ░C	0.156 in	3.96 mm	Copper Alloy	Black	Panel Mount Through Hole			1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	7	Cantilever	1	14	Dual	2	0.128 "	Flush Mount Top Opening Unthreaded	3.25 mm
EDAC Inc. 356-007-421-104	Tin	Solder	Non Specified - Dual Edge	Female	-40 °C	105 ░C	0.156 in	3.96 mm	Copper Alloy	Black	Panel Mount Through Hole			1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	7	Cantilever	1	14	Dual	2	0.156 in	Flush Mount Top Opening Unthreaded	3.96 mm
EDAC Inc. 356-007-420-178	Tin	Solder	Non Specified - Dual Edge	Female	-40 °C	105 ░C	0.156 in	3.96 mm	Copper Alloy	Black	Panel Mount Through Hole			1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	7	Cantilever	1	14	Dual	2		4-40 Flush Mount Threaded Insert Top Opening		Card Guides

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 8.58
Newark	Each	25	$ 9.74
		50	$ 9.52
		100	$ 9.06
		250	$ 8.84
		500	$ 8.52

Description

General part information

356-007 Series

14 Position Female Connector Non Specified - Dual Edge Tin 0.156" (3.96mm) Black
