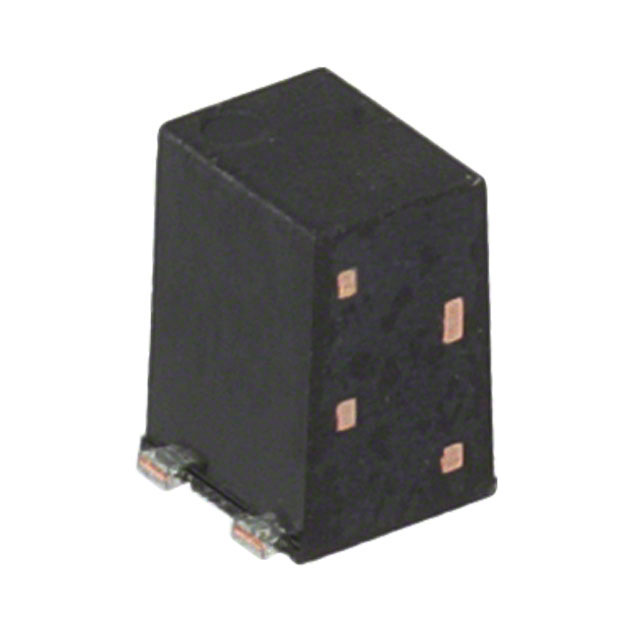

AQY221N3TW

Active

Panasonic Electric Works

SSR RELAY SPST-NO 150MA 0-25V

Search across all available documentation for this part.

Active

Panasonic Electric Works

SSR RELAY SPST-NO 150MA 0-25V

Technical Specifications

Parameters and characteristics for this part

Part	Load Current	Output Type	Voltage - Input	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Termination Style	Package / Case	Package / Case	Package / Case	Approval Agency	Package / Case	On-State Resistance (Max) [Max]	Package / Case [custom]	Package / Case [custom]
Panasonic Electric Works AQY221N2MY	120 mA	AC DC (RF)	1.14 VDC	Surface Mount	85 °C	-40 °C	4-SON	SMD (SMT) Tab	4-SMD	0.116 "	2.95 mm	BSI cURus
Panasonic Electric Works AQY221N3TY	150 mA	AC DC (RF)	1.14 VDC	Surface Mount	85 °C	-40 °C	4-VSSOP	SMD (SMT) Tab	4-SMD	1.8 mm			0.071 in	7.5 Ohms
Panasonic Electric Works AQY221FR2VY	250 mA	AC DC (RF)	1.3 VDC	Surface Mount	85 °C	-40 °C	4-SSOP	SMD (SMT) Tab	4-SMD			BSI cURus		1.25 Ohm	0.175 in	4.45 mm
Panasonic Electric Works AQY221N3Y
Panasonic Electric Works AQY221N3CVW
Panasonic Electric Works AQY221R4V1Y	500 mA	AC DC	1.14 VDC	Surface Mount	85 °C	-40 °C	4-SSOP	SMD (SMT) Tab	4-SMD Flat Leads			BSI cURus		1 Ohms
Panasonic Electric Works AQY221R4VY	500 mA	AC DC (RF)	1.14 VDC	Surface Mount	85 °C	-40 °C	4-SSOP	SMD (SMT) Tab	4-SMD			BSI cURus		1 Ohms	0.175 in	4.45 mm
Panasonic Electric Works AQY221N3M1W
Panasonic Electric Works AQY221N3TW	150 mA	AC DC (RF)	1.14 VDC	Surface Mount	85 °C	-40 °C	4-VSSOP	SMD (SMT) Tab	4-SMD	1.8 mm			0.071 in	7.5 Ohms
Panasonic Electric Works AQY221N1SX	120 mA	AC DC (RF)	1.14 VDC	Surface Mount	85 °C	-40 °C	4-SOP	Gull Wing	4-SOP	0.173 in	4.4 mm	BSI cURus

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	1000	$ 7.40

General part information

Solid State SPST-NO (1 Form A) 4-SMD (0.071", 1.80mm)
