2967345

Active

Phoenix Contact

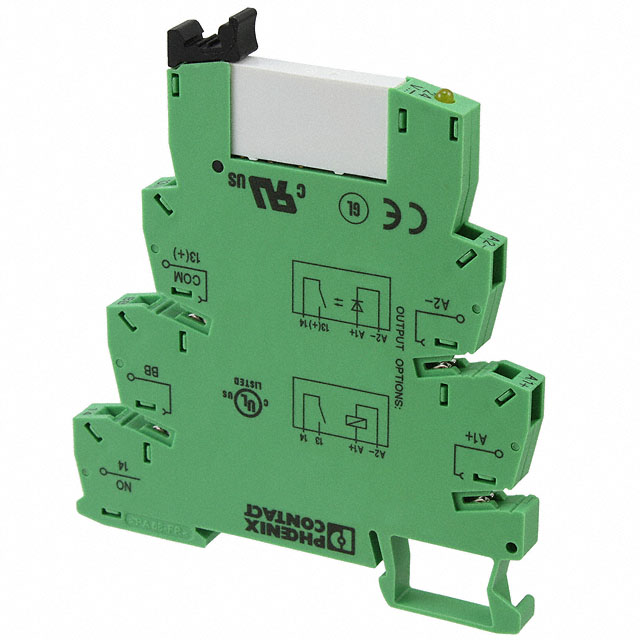

RELAY GEN PURPOSE SPST 6A 24V

Search across all available documentation for this part.

Active

Phoenix Contact

RELAY GEN PURPOSE SPST 6A 24V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2967345	29673 Series

Approval Agency	-	cULus, DNV, UL, EAC
Coil Current	9 mA	9 - 10 mA
Coil Resistance	2.67 kOhms	2.67 - 6 kOhms
Coil Type	Non Latching	Non Latching
Coil Voltage	24 VDC	24 - 60 VDC
Contact Form	SPST-NO (1 Form A)	DPDT (2 Form C), SPST-NO (1 Form A)
Contact Material	Silver Tin Oxide (AgSnO)	Silver Nickel (AgNi), Gold (Au), Silver Tin Oxide (AgSnO)
Contact Rating (Current)	6 A	6 - 50 mA
Features	Lighted Indicator, Socket Included	Lighted Indicator, Diode, Socket Included
Mounting Type	DIN Rail	DIN Rail
Operate Time	5 ms	5 - 8 ms
Operating Temperature [Max]	60 °C	60 °C
Operating Temperature [Min]	-40 °C	-40 °C
Relay Type	General Purpose	General Purpose
Release Time	8 ms	8 - 10 ms
Switching Voltage	250 VAC, 250 VDC	30 - 250 VDC
Termination Style	Spring Terminal	Screw Terminal, Spring Terminal

RELAY GEN PURPOSE DPDT 50MA 60V

Part	Operate Time	Coil Current	Coil Resistance	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Switching Voltage	Approval Agency	Coil Type	Release Time	Contact Form	Relay Type	Contact Material	Coil Voltage	Contact Rating (Current)	Features
Phoenix Contact 2967303	8 ms	10 mA	6 kOhms	DIN Rail	-40 °C	60 °C	Screw Terminal	30 VAC, 36 VDC	cULus, DNV, EAC, UL	Non Latching	10 ms	DPDT (2 Form C)	General Purpose	Gold (Au), Silver Nickel (AgNi)	60 VDC	50 mA	Diode, Lighted Indicator
Phoenix Contact 2967345	5 ms	9 mA	2.67 kOhms	DIN Rail	-40 °C	60 °C	Spring Terminal	250 VAC, 250 VDC		Non Latching	8 ms	SPST-NO (1 Form A)	General Purpose	Silver Tin Oxide (AgSnO)	24 VDC	6 A	Lighted Indicator, Socket Included
Phoenix Contact 2967374	5 ms	9 mA	2.67 kOhms	DIN Rail	-40 °C	60 °C	Spring Terminal	30 VAC, 36 VDC		Non Latching	8 ms	SPST-NO (1 Form A)	General Purpose	Gold (Au), Silver Tin Oxide (AgSnO)	24 VDC	50 mA	Lighted Indicator, Socket Included

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

General Purpose Relay SPST-NO (1 Form A) 24VDC Coil DIN Rail
