General part information

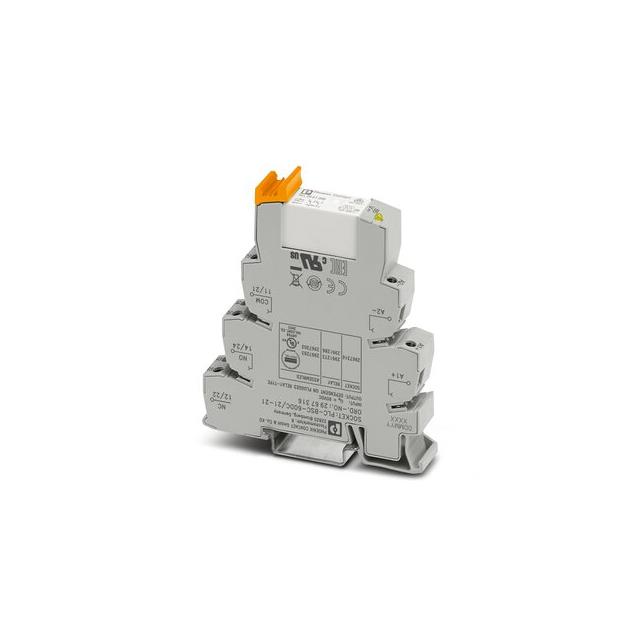

General Purpose Relay DPDT (2 Form C) DIN Rail
Technical documentation and resources
Parameters and characteristics commom to parts in this series
| Specification | 2967303 | 29673 Series |
|---|---|---|
| Approval Agency | cULus, DNV, UL, EAC | cULus, DNV, UL, EAC |
| Coil Current | 10 mA | 9 - 10 mA |
| Coil Resistance | 6 kOhms | 2.67 - 6 kOhms |
| Coil Type | Non Latching | Non Latching |
| Coil Voltage | 60 VDC | 24 - 60 VDC |
| Contact Form | DPDT (2 Form C) | DPDT (2 Form C), SPST-NO (1 Form A) |
| Contact Material | Silver Nickel (AgNi), Gold (Au) | Silver Nickel (AgNi), Gold (Au), Silver Tin Oxide (AgSnO) |
| Contact Rating (Current) | 50 mA | 6 - 50 mA |
| Features | Lighted Indicator, Diode | Lighted Indicator, Diode, Socket Included |
| Mounting Type | DIN Rail | DIN Rail |
| Operate Time | 8 ms | 5 - 8 ms |
| Operating Temperature [Max] | 60 °C | 60 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Relay Type | General Purpose | General Purpose |
| Release Time | 10 ms | 8 - 10 ms |
| Switching Voltage | 36 VDC, 30 VAC | 30 - 250 VDC |
| Termination Style | Screw Terminal | Screw Terminal, Spring Terminal |
RELAY GEN PURPOSE DPDT 50MA 60V
| Part | Operate Time | Coil Current | Coil Resistance | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Termination Style | Switching Voltage | Approval Agency | Coil Type | Release Time | Contact Form | Relay Type | Contact Material | Coil Voltage | Contact Rating (Current) | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 2967303 | 8 ms | 10 mA | 6 kOhms | DIN Rail | -40 °C | 60 °C | Screw Terminal | 30 VAC, 36 VDC | cULus, DNV, EAC, UL | Non Latching | 10 ms | DPDT (2 Form C) | General Purpose | Gold (Au), Silver Nickel (AgNi) | 60 VDC | 50 mA | Diode, Lighted Indicator |
Phoenix Contact 2967345 | 5 ms | 9 mA | 2.67 kOhms | DIN Rail | -40 °C | 60 °C | Spring Terminal | 250 VAC, 250 VDC | Non Latching | 8 ms | SPST-NO (1 Form A) | General Purpose | Silver Tin Oxide (AgSnO) | 24 VDC | 6 A | Lighted Indicator, Socket Included | |
Phoenix Contact 2967374 | 5 ms | 9 mA | 2.67 kOhms | DIN Rail | -40 °C | 60 °C | Spring Terminal | 30 VAC, 36 VDC | Non Latching | 8 ms | SPST-NO (1 Form A) | General Purpose | Gold (Au), Silver Tin Oxide (AgSnO) | 24 VDC | 50 mA | Lighted Indicator, Socket Included |
