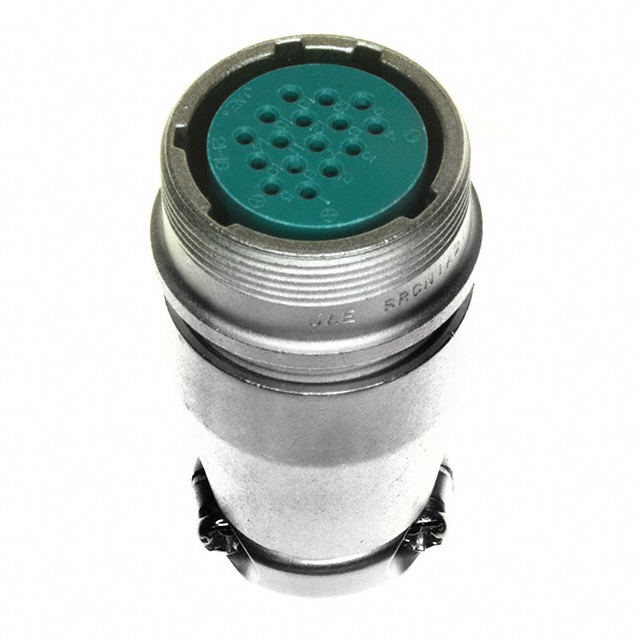

SRCN1A21-16S

Active

JAE Electronics

CONN RCPT FMALE 16P SOLDER CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Circular Connectors

SRCN1A21-16S

Active

JAE Electronics

CONN RCPT FMALE 16P SOLDER CUP

Deep-Dive with AI

DocumentsDatasheet Circular Connectors

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SRCN1A21-16S

Applications	Communication Systems, Telecommunications, Test Equipment & Measurement
Backshell Material, Plating	Aluminum Alloy, Nickel
Cable Opening [custom]	14 mm
Cable Opening [custom]	0.551 in
Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	5 A
Features	Cable Clamp, Backshell
Insert Material	Plastic
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	16
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Orientation	N
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Aluminum Alloy
Shell Size - Insert	21-16
Voltage Rating	350 V, 250 VAC

SRCN1A21 Series

Part	Contact Finish - Mating	Backshell Material, Plating	Voltage Rating	Shell Size - Insert	Material Flammability Rating	Primary Material	Connector Type	Current Rating (Amps)	Number of Positions	Color	Features	Shell Finish	Operating Temperature [Min]	Operating Temperature [Max]	Insert Material	Contact Material	Shell Material	Mounting Type	Orientation	Cable Opening [custom]	Cable Opening [custom]	Applications	Number of Positions
JAE Electronics SRCN1A21-16P	Silver	Aluminum Alloy Nickel	250 VAC 350 V	21-16	UL94 V-0	Metal	Male Pins Receptacle	5 A	16	Silver	Backshell Cable Clamp	Nickel	-25 °C	85 °C	Plastic	Copper Alloy	Aluminum Alloy	Free Hanging (In-Line)	N	14 mm	0.551 in	Communication Systems Telecommunications Test Equipment & Measurement
JAE Electronics SRCN1A21-16S	Silver	Aluminum Alloy Nickel	250 VAC 350 V	21-16	UL94 V-0	Metal	Receptacle Female Sockets	5 A	16	Silver	Backshell Cable Clamp	Nickel	-25 °C	85 °C	Plastic	Copper Alloy	Aluminum Alloy	Free Hanging (In-Line)	N	14 mm	0.551 in	Communication Systems Telecommunications Test Equipment & Measurement
JAE Electronics SRCN1A21-10P	Silver	Aluminum Alloy Nickel	250 VAC 350 V	21-10	UL94 V-0	Metal	Male Pins Receptacle	10 A		Silver	Backshell Cable Clamp	Nickel	-25 °C	85 °C	Plastic	Copper Alloy	Aluminum Alloy	Free Hanging (In-Line)	N	14 mm	0.551 in	Communication Systems Telecommunications Test Equipment & Measurement	10
JAE Electronics SRCN1A21-10S	Silver	Aluminum Alloy Nickel	250 VAC 350 V	21-10	UL94 V-0	Metal	Receptacle Female Sockets	10 A		Silver	Backshell Cable Clamp	Nickel	-25 °C	85 °C	Plastic	Copper Alloy	Aluminum Alloy	Free Hanging (In-Line)	N	14 mm	0.551 in	Communication Systems Telecommunications Test Equipment & Measurement	10

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 15.40
		10	$ 13.65
		100	$ 11.90
		1000	$ 9.31

Description

General part information

SRCN1A21 Series

16 Position Circular Connector Receptacle, Female Sockets Solder Cup

Documents

Technical documentation and resources

Datasheet

Circular Connectors

Datasheet
