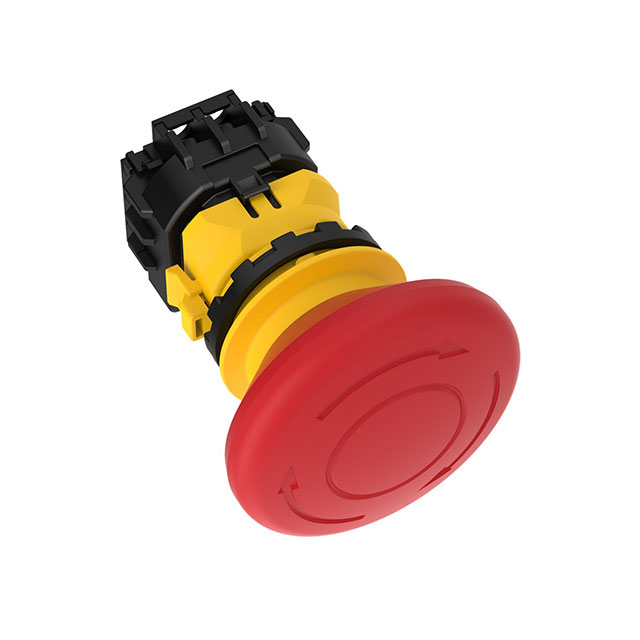

SSA-EB2P-22

Active

BANNER ENGINEERING

SSA-EB2 PANEL-MOUNT EMERGENCY STOP PUSH BUTTON:

Search across all available documentation for this part.

Active

BANNER ENGINEERING

SSA-EB2 PANEL-MOUNT EMERGENCY STOP PUSH BUTTON:

Technical Specifications

Parameters and characteristics for this part

Specification	SSA-EB2P-22

Circuit	4PST-2NO/2NC
Current Rating (Amps)	2 A
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	30 mm
Reset Operation	Pull or Twist
Switch Function	On-Off, Off-On
Termination Style	Screw Terminal
Voltage Rating - DC	24 V

Part	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Circuit	Voltage Rating - DC	Mounting Type	Panel Cutout Dimensions [diameter]	Reset Operation	Current Rating (Amps)	Switch Function	Features	Illumination Voltage (Nominal)
BANNER ENGINEERING SSA-EB2P-22	Screw Terminal	-25 °C	60 °C	IP65 - Dust Tight Water Resistant	4PST-2NO/2NC	24 V	Panel Mount Front	30 mm	Pull or Twist	2 A	Off-On On-Off
BANNER ENGINEERING SSA-EB2PLXR-12ECQ8	Connector	-25 °C	55 °C	IP65 - Dust Tight Water Resistant	3PST-2NC/1NO	24 V	Panel Mount Front	30 mm	Pull or Twist	2 A	Off-On On-Off	Control Box Enclosure Illuminated (Red)	24 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 84.00
Newark	Each	1	$ 86.00
