QS18EN6DVQ8

Active

BANNER ENGINEERING

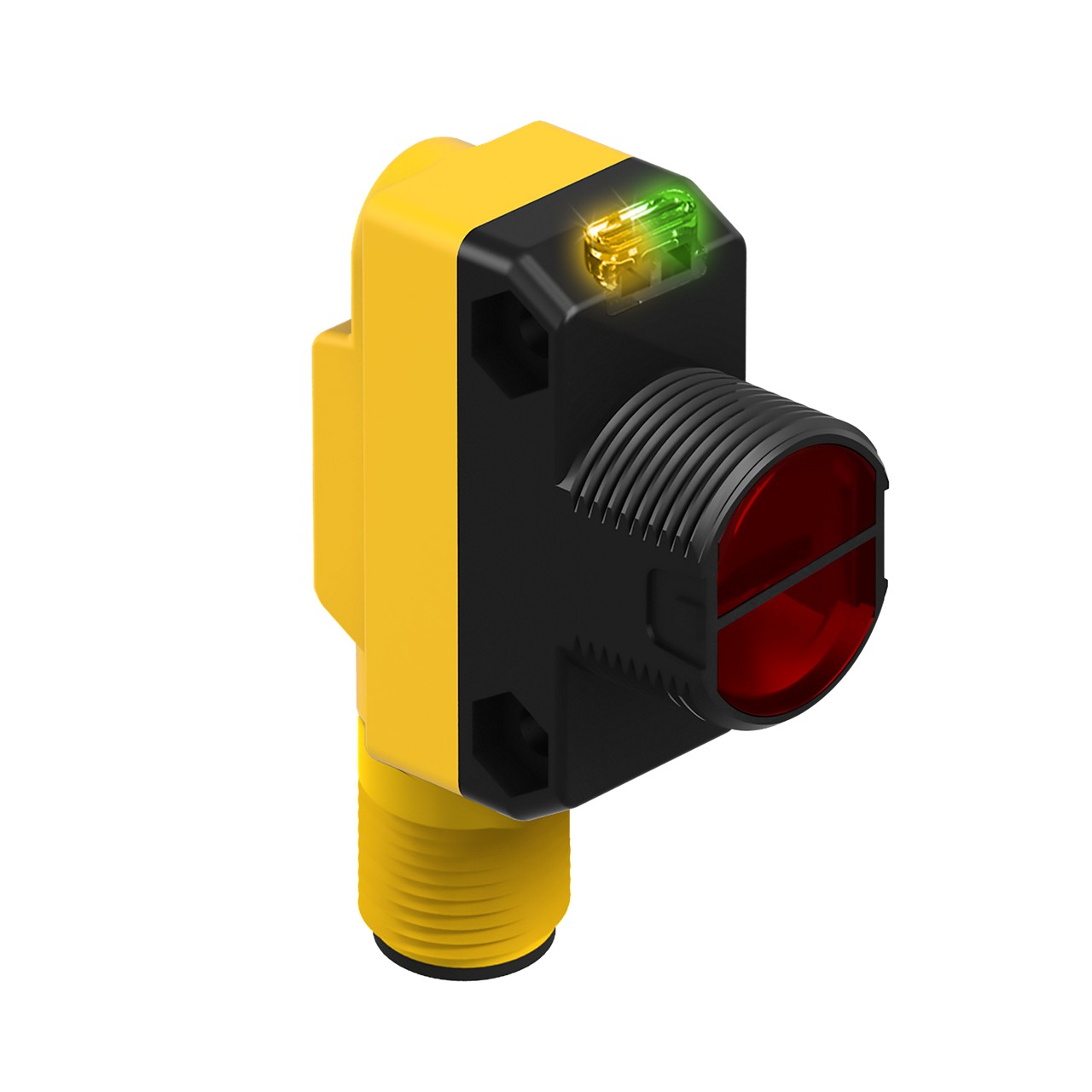

PHOTOELECTRIC SENSOR, WORLD BEAM, QS18E SERIES, 600 MM, DIFFUSE, NPN, 10 V TO 30 V, QUICK DISCONNECT

Search across all available documentation for this part.

Active

BANNER ENGINEERING

PHOTOELECTRIC SENSOR, WORLD BEAM, QS18E SERIES, 600 MM, DIFFUSE, NPN, 10 V TO 30 V, QUICK DISCONNECT

Technical Specifications

Parameters and characteristics for this part

Part	Light Source	Light Source	Response Time	Adjustment Type	Sensing Distance	Sensing Distance	Voltage - Supply [Max]	Voltage - Supply [Min]	Connection Method	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Sensing Method	Cable Length	Cable Length
BANNER ENGINEERING QS18EN6DVQ8	Red	630 nm	600 µs	Adjustable	23.622 in	60 cm	30 VDC	10 VDC	Connector	NEMA 6P IEC IP67	-20 C	70 °C	Diffuse
BANNER ENGINEERING QS18EN6CV45	Red	630 nm	600 µs	Adjustable	1.693 in	43 mm	30 VDC	10 VDC	Cable	NEMA 6P IEC IP67	-20 C	70 °C	Convergent	78.74 in	2 m
BANNER ENGINEERING QS18EN6LPQ	Red	630 nm	600 µs	Adjustable	11.48 ft	350 cm	30 VDC	10 VDC	Connector	NEMA 6P IEC IP67	-20 C	70 °C	Polarized Retroreflective

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diffuse Optical Sensor 23.622" (600mm) NPN - Dark-ON/Light-ON - Selectable
